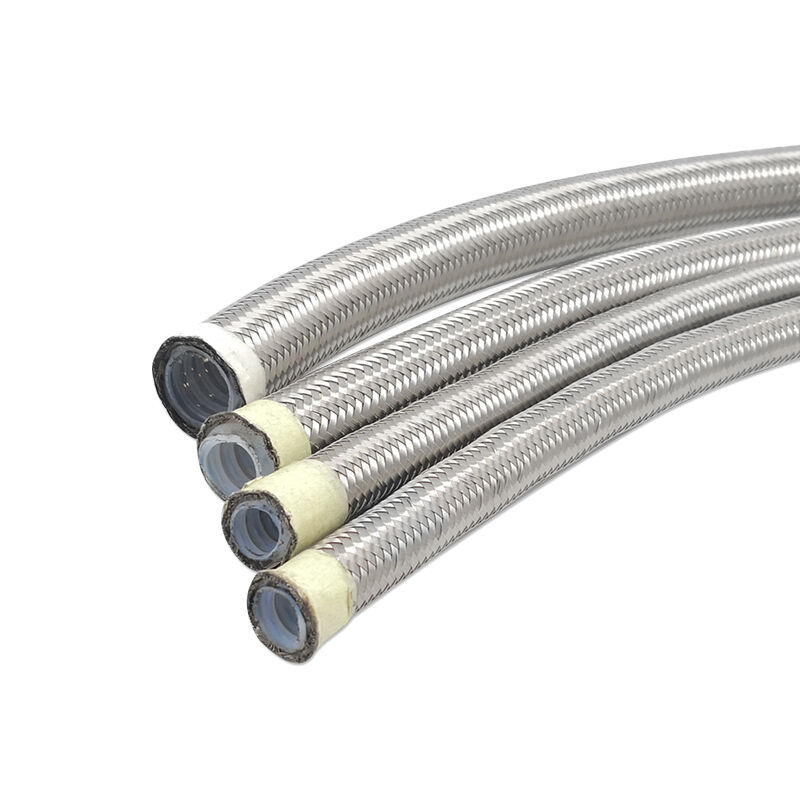

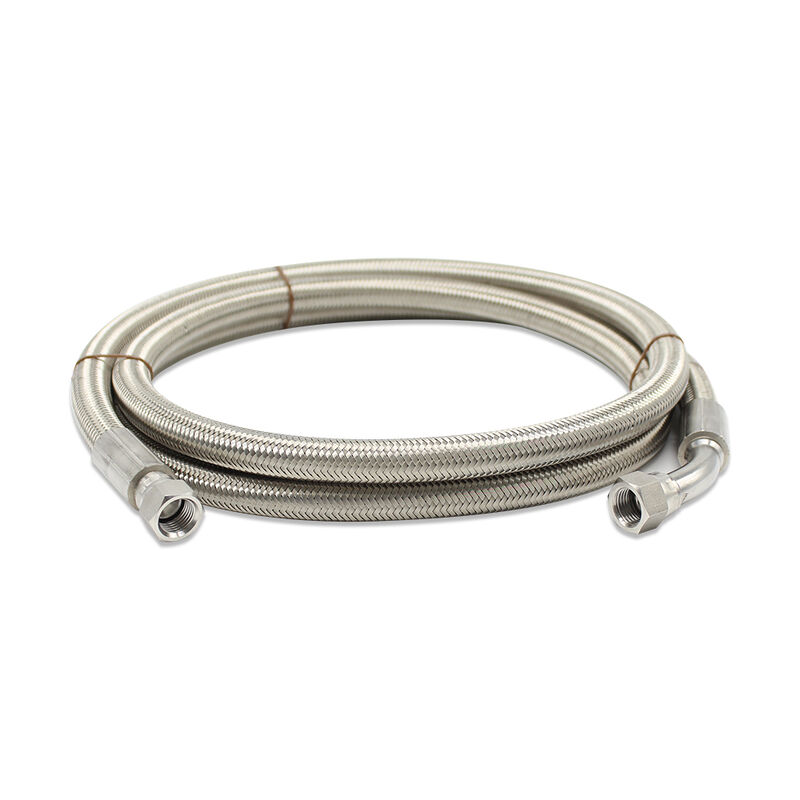

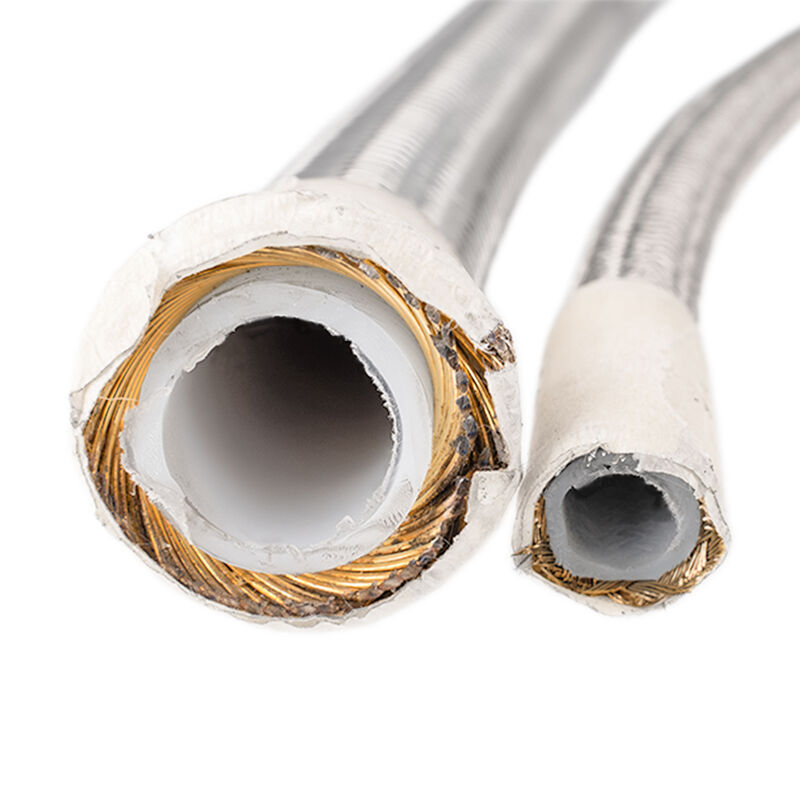

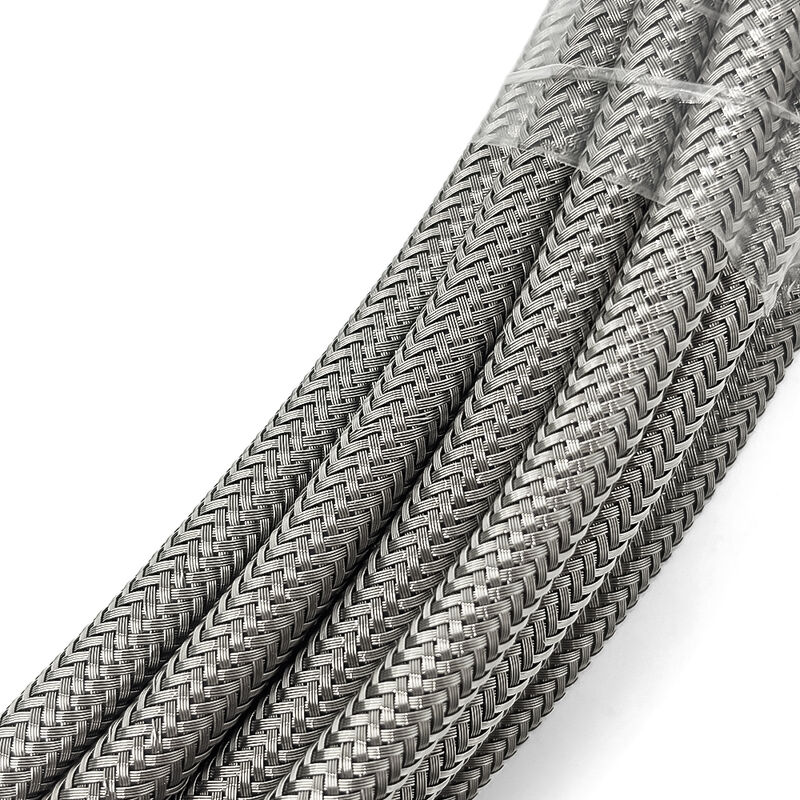

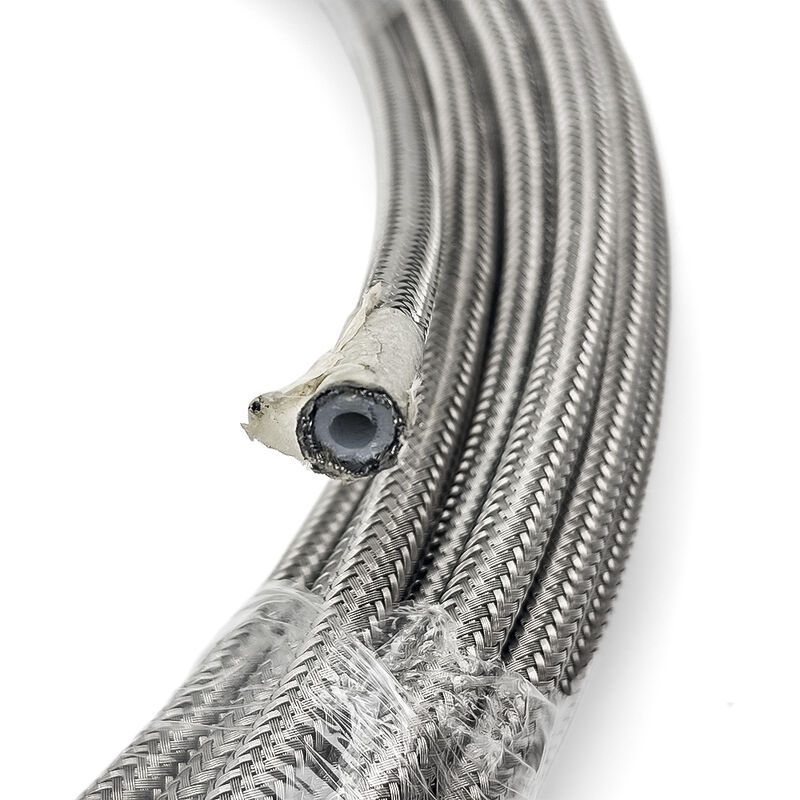

Name: 3/4''ID 19 Mm Corrugated Bore PTFE, Stainless Steel 304 or 316 Wire Braid, Transporting Acids, Alkalis, and Solvents
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
Price: 5.6 USD
Availability: InStock

Home > products > PTFE Braided Hose >

3/4''ID 19 Mm Corrugated Bore PTFE, Stainless Steel 304 or 316 Wire Braid, Transporting Acids, Alkalis, and Solvents

Place of Origin:

China

Brand Name:

PassionCO

Certification:

Request A Quote

Product Details

Inner Tube Material:

Corrugated Bore PTFE (F-205 PTFE From Japan Daikin)

Outer Cover Material:

Stainless Steel 304 Or 316 Wire Braid

Working Pressure Range:

65 Bar

Temperature Range:

-65℃~+260'C

Applications:

Chemical Resistant ,Withstands Extreme Flexing Environmentally Safe

Payment & Shipping Terms

Minimum Order Quantity

100

Price

5.6 USD/meter

Packaging Details

Reel packaging, tray packaging,

Delivery Time

As your request

Payment Terms

L/C,T/T,D/P

Supply Ability

300000

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Get Best Price

Flexible PTFE Steam Hose for Large Industrial Iron Equipment

Get Best Price

Video

Chemical Resistant PTFE Hose Assembly for Laboratory Fluid Transfer Systems

Get Best Price

Anti-Static PTFE Fuel Line Hose for Automotive Fuel Cell Systems

Get Best Price

86-571-8102-3093

Contact Now

Product Description

Convoluted PTFE Hose with SS Wire Braiding

Inner Tube: Convoluted Bore PTFE

Outer Cover: Stainless Steel 304 or 316 Wire Braid

TEMP. Range: Continunous Temperature Range: -65℃- +260℃ (-85°F ~ +500°F)

Feature:

Excellent Chemical Resistance

Excellent Corrosion Resistance
High and Low Temperature Resistance

Withstands Extreme Flexing

High Purity

Electrical Insulation

All Braided PTFE Hoses can Increase Anti-Static Performance with Carbon Treatment

Part Number	I.D. (inch)	I.D.(mm)	Thickness(mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius(mm)
PC14-03	3/16"	5.0	0.6	10.5	130	520	10
PC14-04	1/4"	6.5	0.6	12.2	125	500	10
PC14-05	5/16"	8.0	0.7	13.3	112	450	15
PC14-06	3/8"	10.0	0.75	15.5	110	440	20
PC14-08	1/2"	13.0	0.8	19.0	88	350	25
PC14-10	5/8"	16.3	0.85	22.7	70	280	30
PC14-12	3/4"	19.0	1.0	27.0	65	260	60
PC14-14	7/8"	22.5	1.0	30.0	62	250	80
PC14-16	1"	25.4	1.0	34.0	57	230	85

Part Number	I.D. (inch)	I.D.(mm)	Thickness(mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius(mm)
PC14-03	3/16"	5.0	0.6	10.5	130	520	10
PC14-04	1/4"	6.5	0.6	12.2	125	500	10
PC14-05	5/16"	8.0	0.7	13.3	112	450	15
PC14-06	3/8"	10.0	0.75	15.5	110	440	20
PC14-08	1/2"	13.0	0.8	19.0	88	350	25
PC14-10	5/8"	16.3	0.85	22.7	70	280	30
PC14-12	3/4"	19.0	1.0	27.0	65	260	60
PC14-14	7/8"	22.5	1.0	30.0	62	250	80
PC14-16	1"	25.4	1.0	34.0	57	230	85

3/4''ID 19 Mm Corrugated Bore PTFE, Stainless Steel 304 or 316 Wire Braid, Transporting Acids, Alkalis, and Solvents
