Name: 1/2''ID13 mm, Smooth Bore PTFE, High Temp Resistance 260°C Stainless Steel 304 or 316 Wire Braid, Transfer Chemical Reagents
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
Price: 3.8 USD
Availability: InStock

Home > products > PTFE Braided Hose >

1/2''ID13 mm, Smooth Bore PTFE, High Temp Resistance 260°C Stainless Steel 304 or 316 Wire Braid, Transfer Chemical Reagents

Place of Origin:

China

Brand Name:

PassionCO

Certification:

Request A Quote

Product Details

Outer Cover Material:

Stainless Steel 304 Or 316 Wire Braid

Working Pressure Range:

65 Bar

Temperature Range:

-65℃~+260'C

Applications:

Chemical Resistant ,Withstands Extreme Flexing Environmentally Safe

Payment & Shipping Terms

Minimum Order Quantity

100

Price

3.8 USD/meter

Packaging Details

Reel packaging, tray packaging,

Delivery Time

As your request

Payment Terms

L/C,T/T,D/P

Supply Ability

300000

1/2''ID13 mm, Smooth Bore PTFE, High Temp Resistance 260°C Stainless Steel 304 or 316 Wire Braid, Transfer Chemical Reagents

Get Best Price

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Get Best Price

Flexible PTFE Steam Hose for Large Industrial Iron Equipment

Get Best Price

Video

Chemical Resistant PTFE Hose Assembly for Laboratory Fluid Transfer Systems

Get Best Price

86-571-8102-3093

Contact Now

Product Description

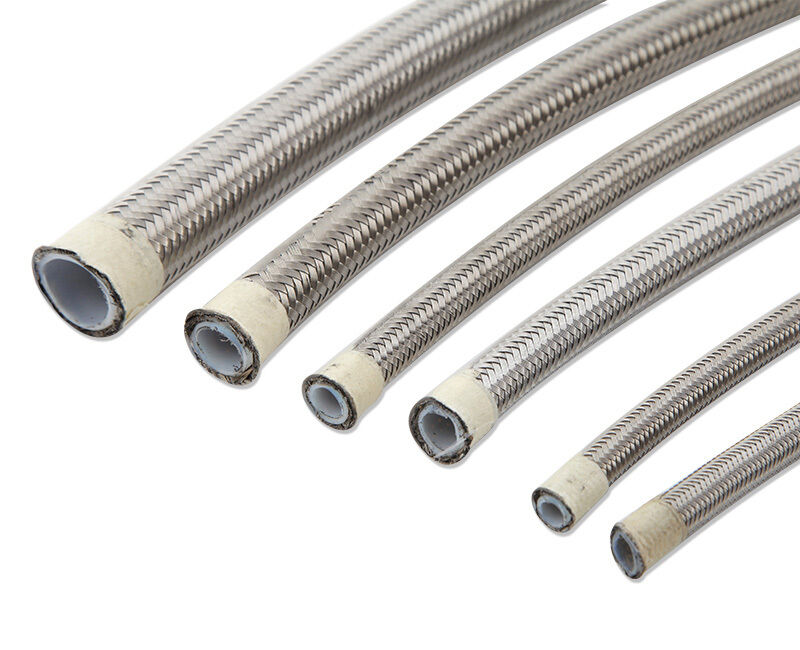

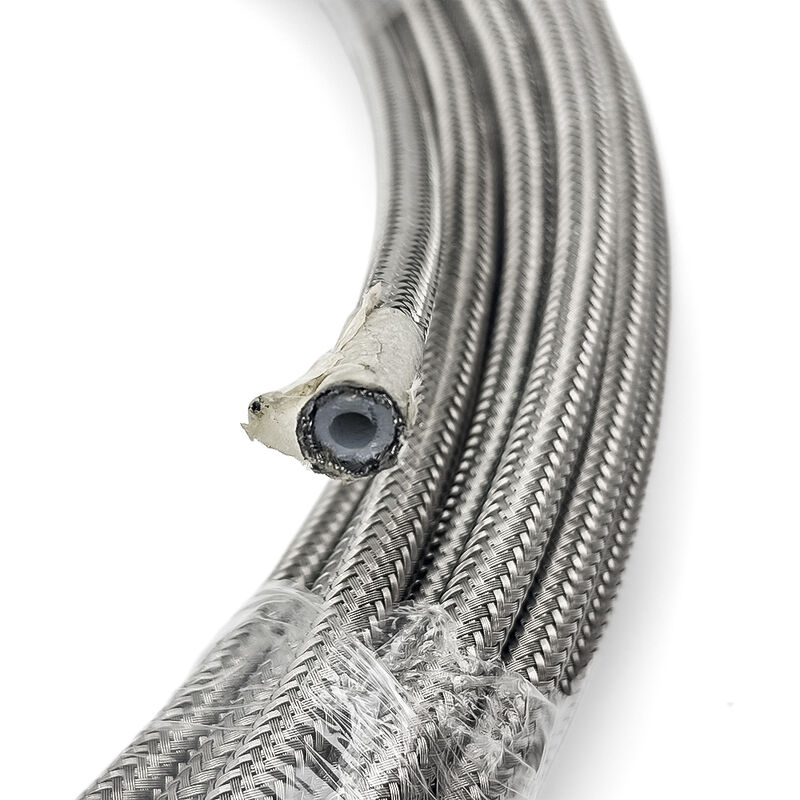

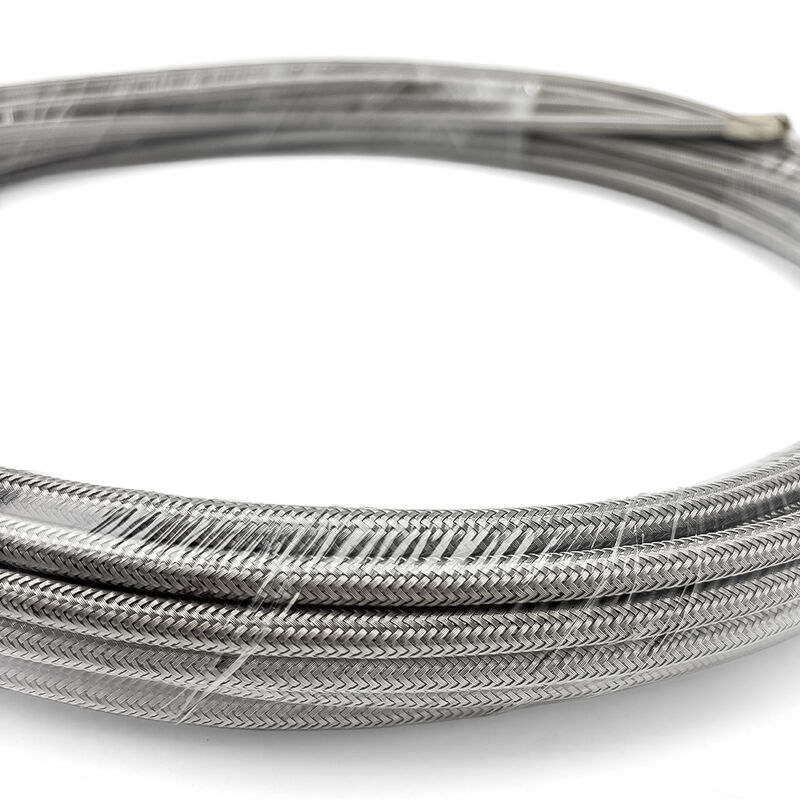

Smooth Bore PTFE Hose with SS Wire Braiding

Inner Tube: Smooth Bore PTFE

Outer Cover: Stainless Steel 304 or 316 Wire Braid

TEMP. Range: Continunous Temperature Range: -65℃- +260℃ (-85°F ~ +500°F)

Standard: SAE100 R14

Feature:

Excellent Chemical Resistance

Excellent Corrosion Resistance
High and Low Temperature Resistance

Non-stick Surface

High Purity

Electrical Insulation

All Braided PTFE Hose can Increase Anti-Static Performance with Carbon Treatment

Part Number	I.D. (inch)	I.D.(mm)	Thickness(mm)	W.P.(bar)	O.D. After Braiding (mm)	B.P.(bar)	Min. Bend Radius(mm)
PR14-02	1/8"	3.2	1.0	250	6.7	1000	16
PR14-03	3/16"	5.0	0.85	205	7.6	820	20
PR14-04	1/4"	6.5	0.85	188	9.4	752	27
PR14-05	5/16"	8.0	0.85	162	11.1	648	27
PR14-06	3/8"	10.0	0.85	130	13.2	520	33
PR14-08	1/2"	13.0	1.0	112	16.2	448	66
PR14-10	5/8"	16.3	1.0	80	19.4	320	150
PR14-12	3/4"	19.0	1.2	70	23.0	280	226
PR14-14	7/8"	22.5	1.2	60	26.2	240	245
PR14-16	1"	25.4	1.5	50	29.8	200	300

Packaging Made for Your Convenience:

Carton Protected – Your PTFE hoses arrive undamaged, every time.

Pallet Ready – Easy unloading and straight-to-floor storage.

Reel Organized – No tangles, no waste, ready to install.

Header Card– We can pack with your logo, barcode and specification, so it looks like yours from the start.

Start Simple – Open, follow the guide, and get straight to work.

We pack to protect your product—and your time.

We customize the packing according to your request

1/2''ID13 mm, Smooth Bore PTFE, High Temp Resistance 260°C Stainless Steel 304 or 316 Wire Braid, Transfer Chemical Reagents
