Name: High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: SAE 100R14
Price: 15.29 USD
Availability: InStock

Home > Products > PTFE Braided Hose >

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Place of Origin:

China

Brand Name:

PASSIONCOHOSE

Certification:

ISO 9001-2015, CE, RoSH, REACH, FDA

Model Number:

SAE 100R14

Request A Quote

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Product Details

Model Number:

PTFE Hose, SAE 100R14

PTFE Hose Market:

North America, Europe, South America

Material:

PTFE

ID:

1/8" ~ 1"

Inner Tube:

Extruded Smooth PTFE

Cover:

SS 304 Single Wire Braid

Temperature:

-60℃ ~ +260℃

W.P:

179.5bar-48.8bar

B.P:

718bar-195bar

Customization Options:

Color, Length, End Fittings, Braid Material, Etc.

Packing:

Woven Strips, Pallet, Carton

Fittings:

OEM

Payment & Shipping Terms

Minimum Order Quantity

200M

Price

Negotiable

Packaging Details

Woven strips, pallet, carton, etc. We can also make package according to your requirements.

Delivery Time

within 25days after we have received the advanced payment

Payment Terms

L/C, , T/T, Western Union, MoneyGram

Supply Ability

300000M/Month

Flexible PTFE Steam Hose for Large Industrial Iron Equipment

Get Best Price

Video

Chemical Resistant PTFE Hose Assembly for Laboratory Fluid Transfer Systems

Get Best Price

Video

PTFE Hose Assembly with High Temperature Resistance and Chemical Resistant Properties for Anti-Static Applications

Get Best Price

Anti-Static PTFE Fuel Line Hose for Automotive Fuel Cell Systems

Get Best Price

Contact Now

Product Description

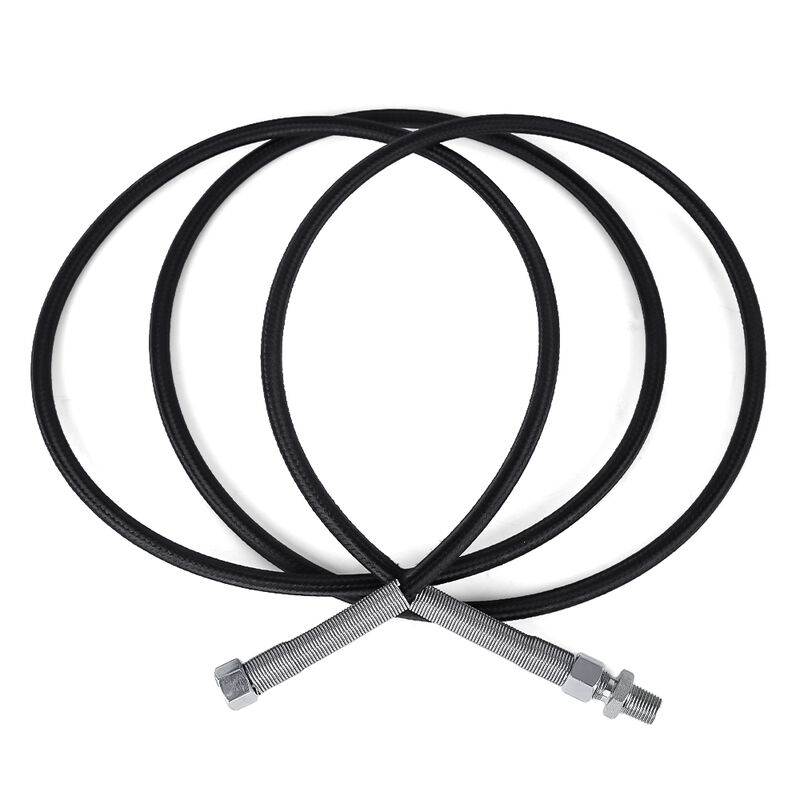

High Pressure PTFE Steam Transfer Hose for Commercial Ironing Systems

Description:

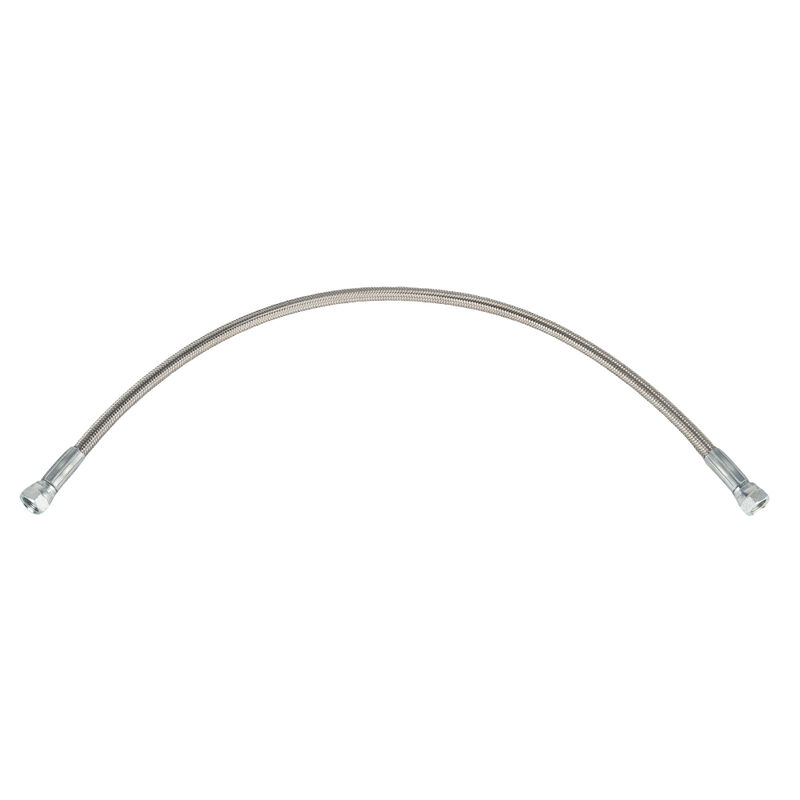

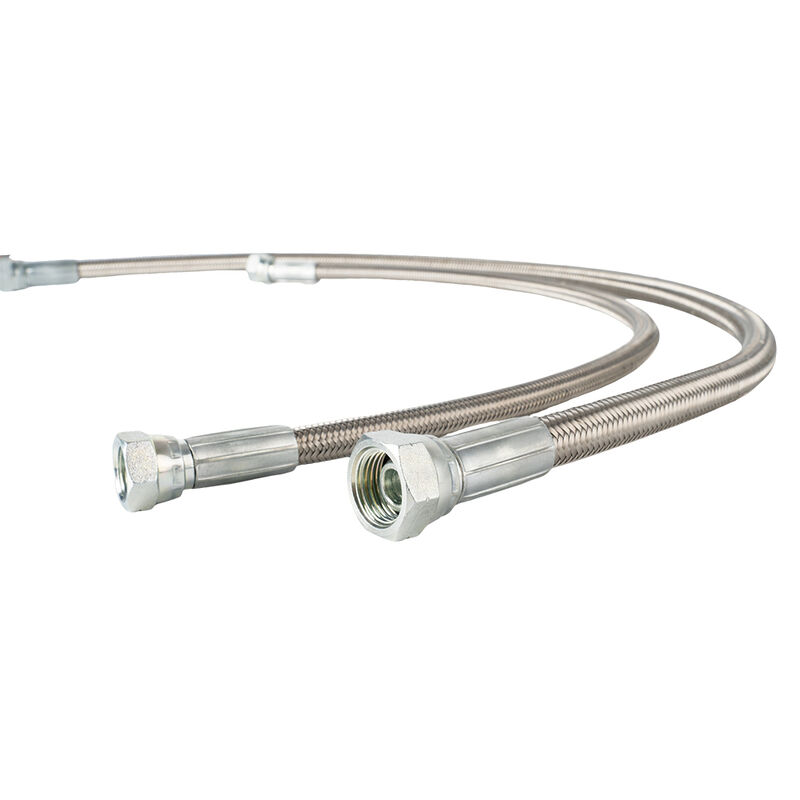

Smooth Bore Stainless Steel Braided PTFE Hoses

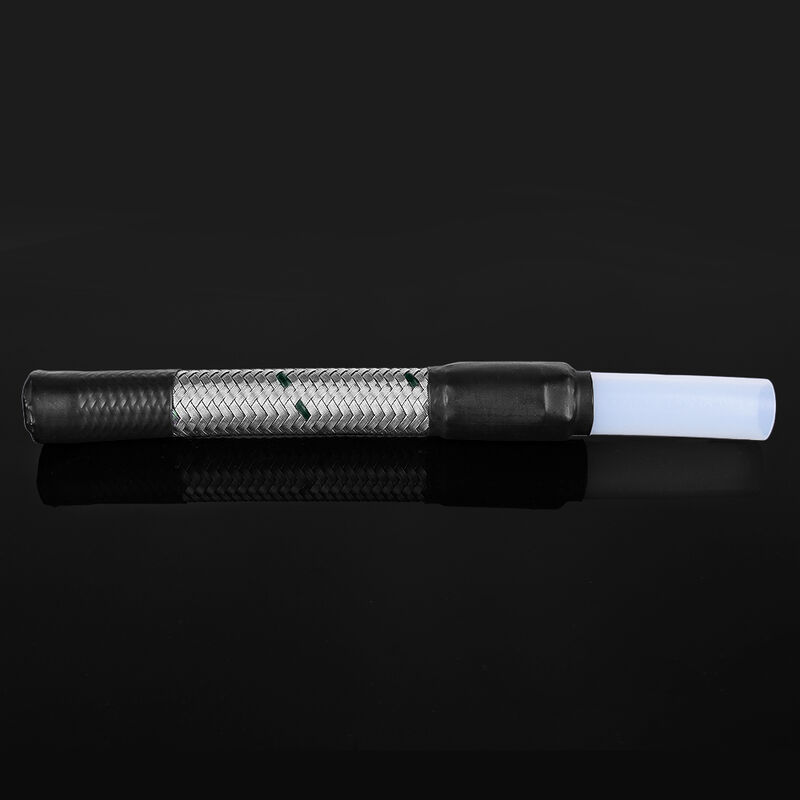

Inner tube: Smooth bore PTFE
Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.

All braided PTFE hoses can increase Anti-Static performance with carbon treatment.

Part-number	Inner Diameter	I.D. (mm)	O.D. (mm)	Bending Radius (mm)	Min.W.P (bar)	Min. B.P. (bar)
PR14-02	1/8"	3.2	6.7	16	250	1000
PR14-03	3/16"	5.0	7.6	20	205	820
PR14-04	1/4"	6.5	9.4	27	188	752
PR14-05	5/16''	8.0	11.1	27	162	648
PR14-06	3/8''	10.0	13.2	33	130	520
PR14-08	1/2''	13.0	16.2	66	112	448
PR14-10	5/8"	16.3	19.4	150	80	320
PR14-12	3/4''	19.0	23.0	226	70	280
PR14-14	7/8"	22.5	26.2	245	60	240
PR14-16	1''	25.4	29.8	300	50	200

Excellent High Temperature Resistance
Made of premium PTFE material, suitable for continuous steam transfer under high temperature working conditions.
High Pressure Performance
Designed to handle high-pressure steam used in large industrial ironing and laundry equipment.
Flexible & Lightweight
Highly flexible PTFE hose allows easy installation and movement, even in compact or complex ironing systems.
Smooth Inner Surface
Non-stick inner bore ensures smooth steam flow, reduces pressure loss and prevents scaling.
Long Service Life
PTFE material provides outstanding aging resistance, ensuring stable performance and long-term use.
Optional Stainless Steel Braiding
Available with stainless steel braided reinforcement for enhanced pressure resistance and safety.

Application:

Industrial steam ironing machines
Large commercial steam irons
Industrial laundry and garment finishing equipment
Central steam supply systems for ironing lines
High temperature steam conveying systems in factories
