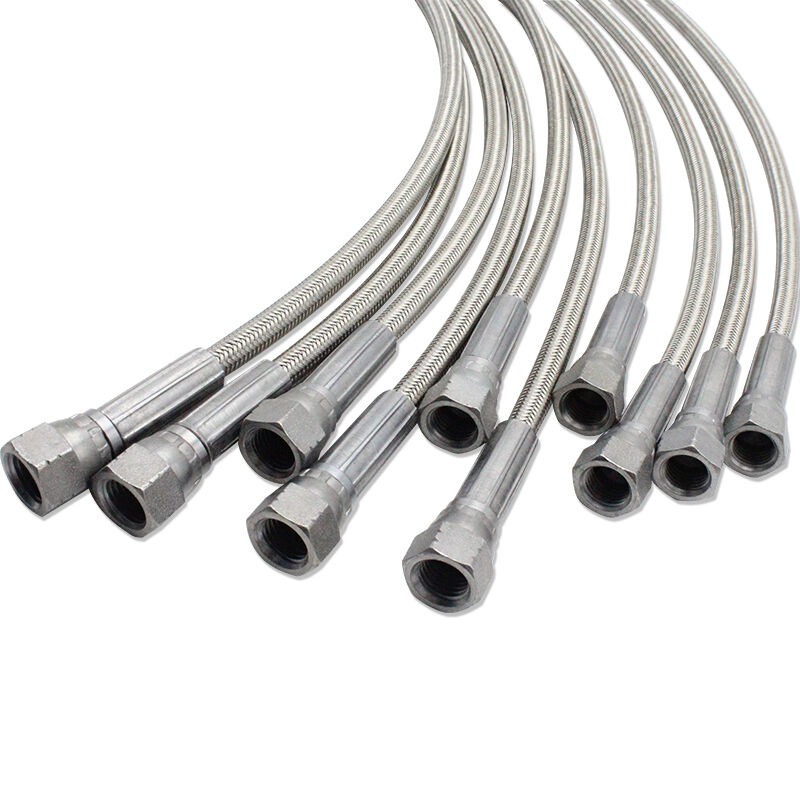

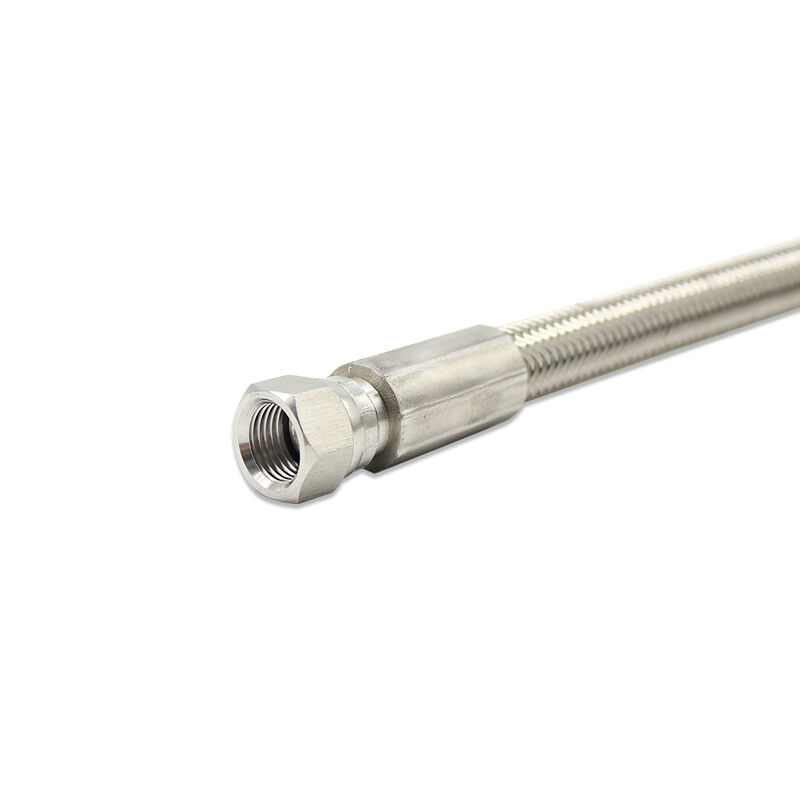

What is Stainless Steel Braided PTFE Hose?
Stainless steel braided PTFE hose is a type of hose that combines the non-stick properties of PTFE with the strength and flexibility of stainless steel. PTFE, or polytetrafluoroethylene, is a synthetic fluoropolymer that is known for its non-stick properties and high temperature resistance. Stainless steel, on the other hand, provides strength, durability, and flexibility. By combining these two materials, stainless steel braided PTFE hose offers a range of benefits that make it suitable for various industrial applications.

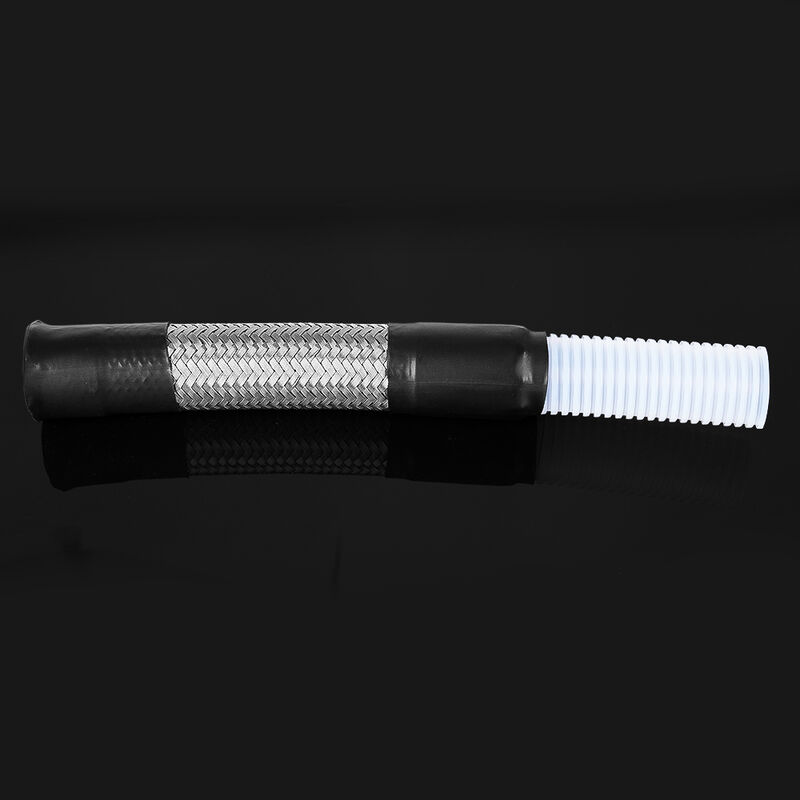

Structure of our Stainless Steel Braided PTFE Hose:

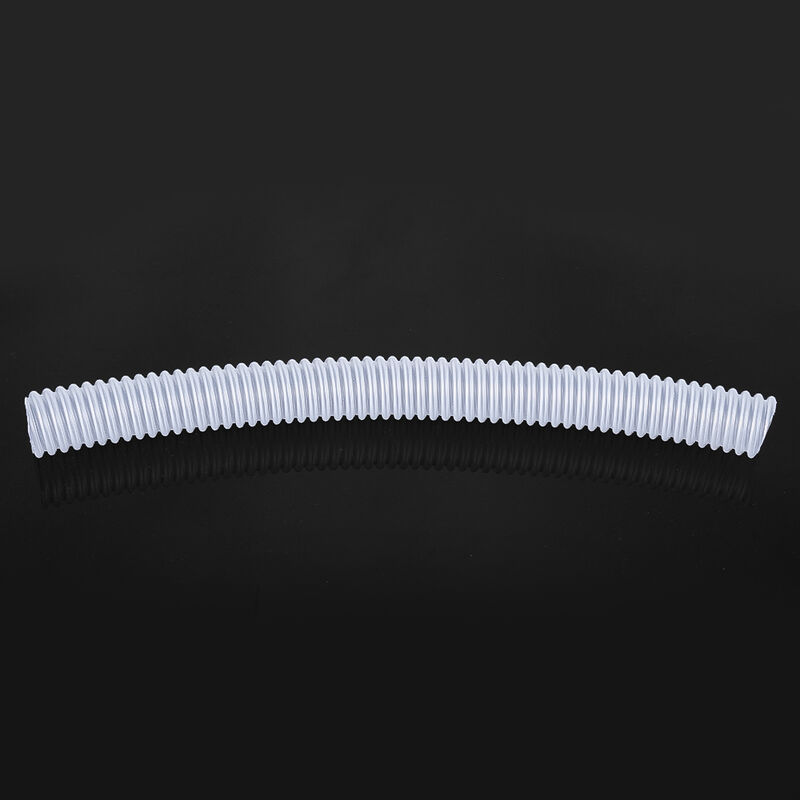

Inner tube: PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
| no | Specification | I.D. | O.D. | Thickness | W.P. | B.P. | Min.Bending Radius |
| mm | mm | mm | bar | bar | mm | ||
| 1 | 1/8 | 3.5 | 6.6 | 1 | 320 | 988 | 51 |
| 2 | 3/16 | 4.8 | 7.6 | 0.85 | 242 | 726 | 75 |
| 3 | 1/4 | 6.4 | 9.2 | 0.85 | 210 | 653 | 81 |
| 4 | 5/16 | 8 | 11 | 0.85 | 188 | 587 | 92 |
| 5 | 3/8 | 9.7 | 12.8 | 0.85 | 185 | 556 | 131 |
| 6 | 1/2 | 12.7 | 15.9 | 1 | 106 | 461 | 182 |
| 7 | 5/8 | 16 | 19.2 | 1 | 90 | 382 | 211 |
| 8 | 3/4 | 19 | 22.7 | 1.2 | 78 | 269 | 338 |
| 9 | 7/8 | 22.2 | 26 | 1.2 | 60 | 195 | 421 |
| 10 | 1 | 25 | 29.3 | 1.5 | 40 | 153 | 539 |
| 11 | 2 | 50 | 55.6 | 2 | 30 | 120 | 1015 |
