Name: Smooth Bore PTFE Braided Hose for High Temperature Resistence
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: SAE 100R14
Price: 15.29 USD
Availability: InStock

Home > products > PTFE Braided Hose >

Smooth Bore PTFE Braided Hose for High Temperature Resistence

Place of Origin:

China

Brand Name:

PASSIONCOHOSE

Certification:

ISO 9001-2015, CE, RoSH, REACH, FDA

Model Number:

SAE 100R14

Request A Quote

Smooth Bore PTFE Braided Hose for High Temperature Resistence

Product Details

Model Number:

PTFE Hose, SAE 100R14

PTFE Hose Market:

North America, Europe, South America

Material:

PTFE

ID:

1/8" ~ 1"

Inner Tube:

Extruded Smooth PTFE

Cover:

SS 304 Single Wire Braid

Temperature:

-60℃ ~ +260℃

W.P:

179.5bar-48.8bar

B.P:

718bar-195bar

Customization Options:

Color, Length, End Fittings, Braid Material, Etc.

Packing:

Woven Strips, Pallet, Carton

Fittings:

OEM

Payment & Shipping Terms

Minimum Order Quantity

200M

Price

Negotiable

Packaging Details

Woven strips, pallet, carton, etc. We can also make package according to your requirements.

Delivery Time

within 25days after we have received the advanced payment

Payment Terms

L/C, , T/T, Western Union, MoneyGram

Supply Ability

300000M/Month

High Pressure PTFE Hose With One braided Layer Of Stainless Steel For Transportation and Mobile Hydraulics

Get Best Price

Convoluted PTFE Tube for Electronic liquid Cooling System

Get Best Price

Video

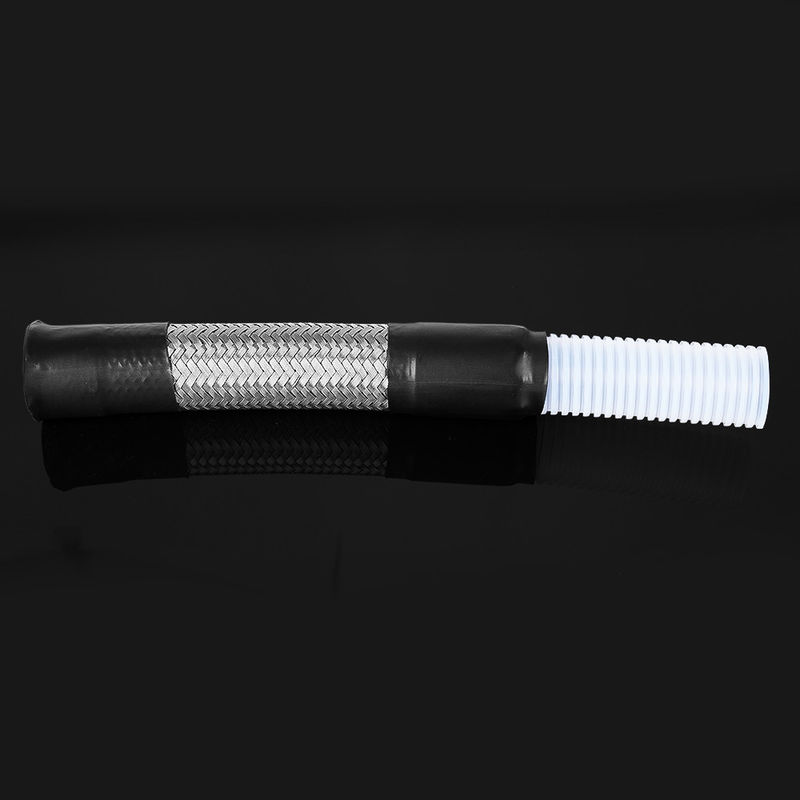

Strong Corrosion Resistance High quanlity PTFE material Big Diameter Convoluted Inner Tube Hose

Get Best Price

Video

1/4" Stainless Steel Braided Ptfe Hose Perfect Combination Of Strength And Flexibility

Get Best Price

86-571-8102-3093

Contact Now

Product Description

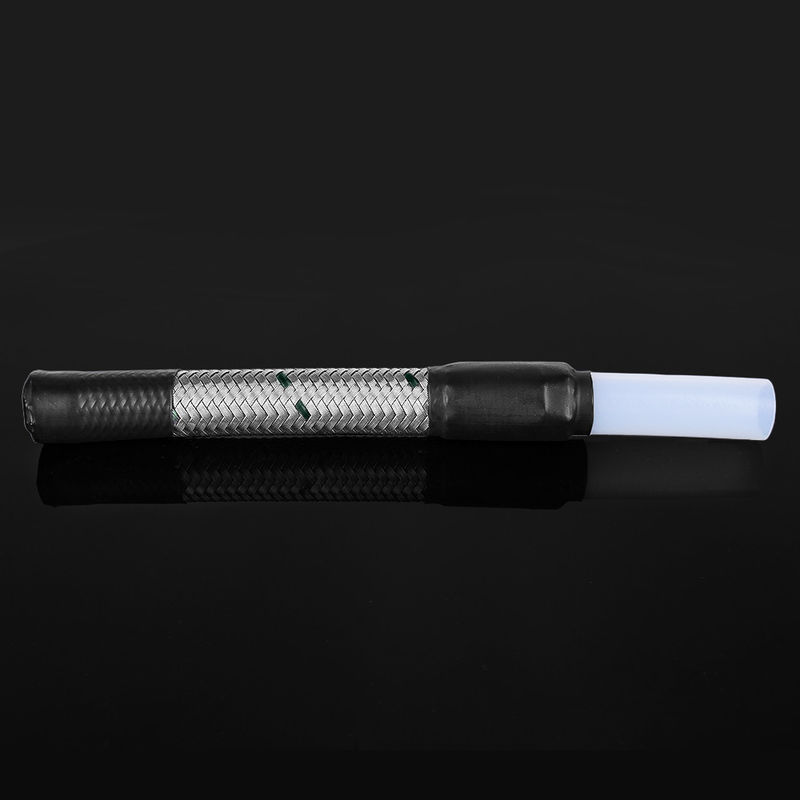

Smooth Bore PTFE Braided Hose for High Temperature Resistance

Description:

Smooth Bore Stainless Steel Braided PTFE Hoses

Inner tube: Smooth bore PTFE

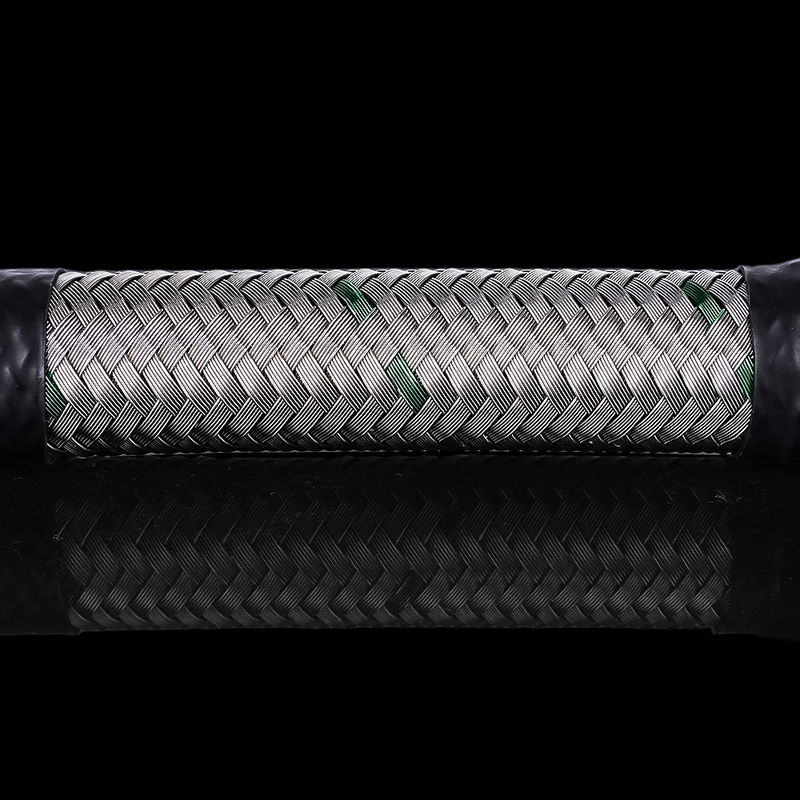

Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.

All braided PTFE hoses can increase Anti-Static performance with carbon treatment.

Part-number	Inner Diameter	I.D. (mm)	O.D. (mm)	Bending Radius (mm)	Min.W.P (bar)	Min. B.P. (bar)
PR14-02	1/8"	3.2	6.7	16	250	1000
PR14-03	3/16"	5.0	7.6	20	205	820
PR14-04	1/4"	6.5	9.4	27	188	752
PR14-05	5/16''	8.0	11.1	27	162	648
PR14-06	3/8''	10.0	13.2	33	130	520
PR14-08	1/2''	13.0	16.2	66	112	448
PR14-10	5/8"	16.3	19.4	150	80	320
PR14-12	3/4''	19.0	23.0	226	70	280
PR14-14	7/8"	22.5	26.2	245	60	240
PR14-16	1''	25.4	29.8	300	50	200

Smooth Bore PTFE Braided Hose for High Temperature Resistence 0
