Stainless Steel PTFE Braided Hose , 3 / 8"  Braided Hose

Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose

  • High Light

    Braided PTFE Hose

    ,

    PTFE Lined Hose

  • Model Number
    Imported PTFE Hose, SAE 100R14
  • PTFE Hose Market
    North America, Europe, South America
  • Material
    PTFE 238A+
  • ID
    3/16" ~ 1"
  • Inner Tube
    Extruded Smooth PTFE
  • Cover
    SS 304 Single Wire Braid
  • Temperature
    -54℃ ~ +260℃
  • W.P
    179.5bar-48.8bar
  • B.P
    718bar-195bar
  • Application
    Hydraulic Oil, Brake Hose
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    SAE 100R14
  • Minimum Order Quantity
    200M
  • Price
    Negotiable
  • Packaging Details
    In Rolls; well wrapped by poly stripes or opp films. We can also make package according to your requirements.
  • Delivery Time
    within 25days after we have received the advanced payment.
  • Payment Terms
    L/C, , T/T, Western Union, MoneyGram
  • Supply Ability
    300000M/Month

Stainless Steel PTFE Braided Hose , 3 / 8" Braided Hose

Stainless Steel PTFE Braided Hose , 3 / 8"  Braided Hose.



Description:

Among The Sizes (1/8''-1''), customers may need to pay attention to the size-1/4''.

For the size-1/4'', the I.D represents both 6.5mm I.D and 6mm I.D. Normally, Chinese customers buy 6mm I.D, and for exporting, customers buy 6.5mm I.D.

If you need 1/4'', please let us know do you need 6mm I.D or 6.5mm I.D?



Stainless Steel Braided Smoothbore Flexible PTFE Lined Hose

Construction: Tube: Imported PTFE Material.

            Cover: SS304 braided.

Temperature: -50℃ to +260℃

Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

Standard length: 100m (Random Length).



Specifications



Material

Temperature chemical resistant PTFE material. +304 Stainless Steel Braided

Temperature

-50C-260C

I.D(inch)

1/8’’-1’’

I.D 1/8inch

Specially used as brake hose.

I.D*O.D(mm)

6.0*8.7-25.0*29.5

W.P

179.5BAR-48.8BAR

B.P

718BAR-195BAR

Length/roll(m)

>50

Application

Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry.

Type

Smooth Surface and Corrguated Surface

Type

Imported PTFE Material and Made in China PTFE Material.



Sizes List



Item code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Weight

inch

mm

mm

bar

bar

m

kg/m

PPT-02

1/8"

3.5

6.2

314

1080

100

0.07

PPT-03

3/16"

5.0

7.7

256

752

100

0.09

PPT-04 1/4'' 6.0 8.7 240 718 100 0.10

PPT-04

1/4"

6.5

9.3

232

644

100

0.11

PPT-05

5/16"

8.0

10.8

180

504

100

0.15

PPT-06

3/8"

10.0

12.7

152

426

100

0.17

PPT-08

1/2"

13.0

16.3

90

270

100

0.31

PPT-10

5/8"

16.3

19.3

80

240

50

0.47

PPT-12

3/4"

19.0

22.3

70

196

50

0.57

PPT-14

7/8"

22.5

25.8

60

175

50

0.7

PPT-16

1"

25.4

29.8

50

150

50

0.8



*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please don’t include the Stainless Steel.



*The Hose is tested when the Hose is under condition of rest.

*Temperature-Pressure:

20C---------P

100C-------0.43P

150C----------0.3P

200C------------0.22P

220C--------------0.2P

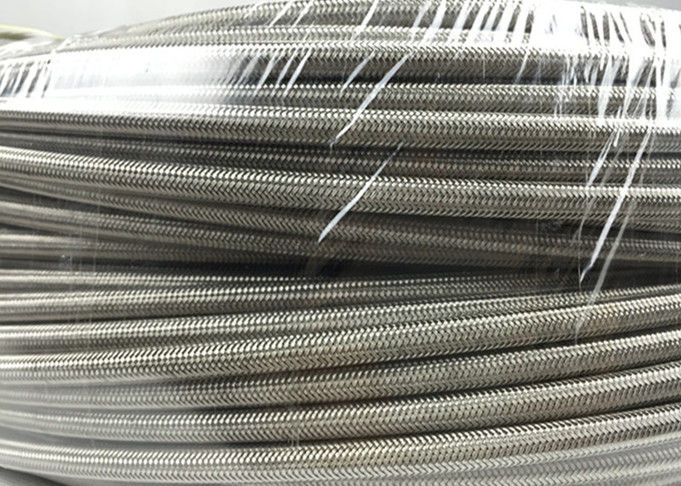

Stainless Steel PTFE Braided Hose , 3 / 8"  Braided Hose 0

Stainless Steel PTFE Braided Hose , 3 / 8"  Braided Hose 1Stainless Steel PTFE Braided Hose , 3 / 8"  Braided Hose 2



For more detailed information, please contact us.
