Stainless Steel Braided  Hose, Working Temperature 260℃ For Brake Hose

Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose

  • High Light

    PTFE Lined Hose

    ,

    PTFE Braided Hose

  • Model Number
    Imported PTFE Hose, SAE 100R14
  • PTFE Hose Market
    North America, Europe, South America
  • Material
    PTFE 238A+
  • ID
    3/16" ~ 1"
  • Inner Tube
    Extruded Smooth PTFE
  • Cover
    SS 304 Single Wire Braid
  • Temperature
    -54℃ ~ +260℃
  • W.P
    179.5bar-48.8bar
  • B.P
    718bar-195bar
  • Application
    Hydraulic Oil, Brake Hose
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    SAE 100R14
  • Minimum Order Quantity
    200M
  • Price
    Negotiable
  • Packaging Details

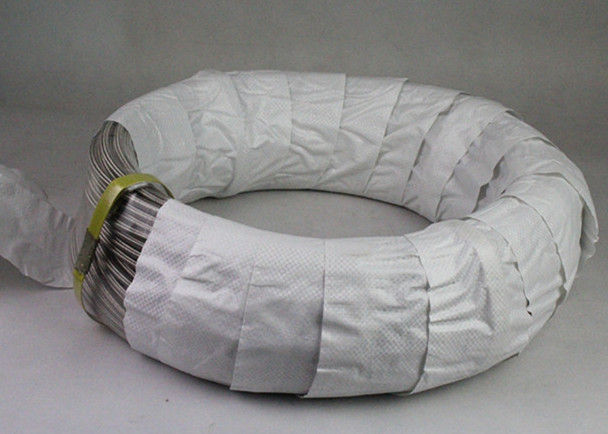

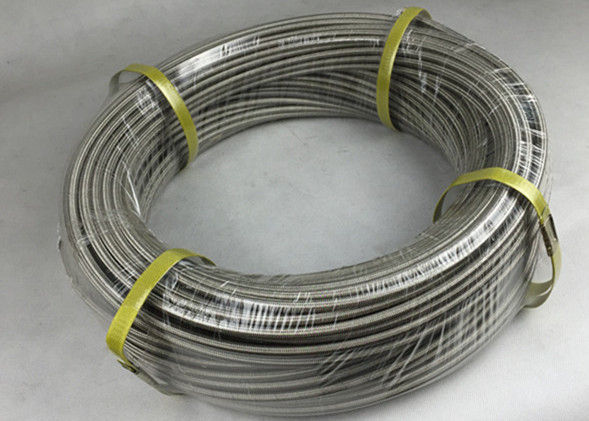

    In Rolls; well wrapped by poly stripes or opp films. We can also make package according to your requirements.
  • Delivery Time
    within 25days after we have received the advanced payment.
  • Payment Terms
    L/C, , T/T, Western Union, MoneyGram
  • Supply Ability
    300000M/Month

Stainless Steel Braided Hose, Working Temperature 260℃ For Brake Hose

Stainless Steel imported  PTFE Braided Hose, Working Temperature 260C

Description:

PASSION offers imported PTFE Material, mainly imported from Japan, USA. The working temperature can reach as high as 260℃, this type of staninless steel braided ptfe hoses are often used as brake hose, 1/8'' is the most common size.

This type of hose largely meet the needs of high-end market, and customers feedbacks are good.

We largely exported to Japan, USA, Brazil.



Stainless Steel imported  PTFE Braided Hose, Working Temperature 260C

Construction: Tube: Imported PTFE Material.

            Cover: SS304 braided.

Temperature: -50℃ to +260℃

Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

Standard length: 100m (Random Length).



Specifications



Material

Temperature chemical resistant PTFE material. +304 Stainless Steel Braided

Temperature

-50C-260C

I.D(inch)

1/8’’-1’’

I.D 1/8inch

Specially used as brake hose.

I.D*O.D(mm)

6.0*8.7-25.0*29.5

W.P

179.5BAR-48.8BAR

B.P

718BAR-195BAR

Length/roll(m)

>50

Application

Used on Mechanical hydraulic system in Shipping Industry, Auto Industry and Ocean Industry.

Type

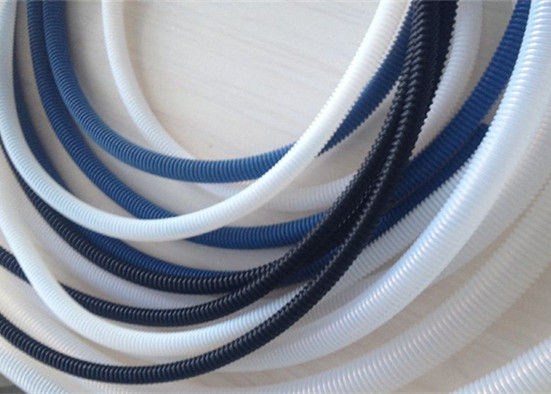

Smooth Surface and Corrguated Surface

Type

Imported PTFE Material and Made in China PTFE Material.



Sizes

Item code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Weight

inch

mm

mm

bar

bar

m

kg/m



1/8"

3.5

6.2

314

1080

100

0.07



3/16"

5.0

7.7

256

752

100

0.09



1/4"

6.5

9.3

232

644

100

0.11



5/16"

8.0

10.8

180

504

100

0.15



3/8"

10.0

12.7

152

426

100

0.17



1/2"

13.0

16.3

90

270

100

0.31



5/8"

16.3

19.3

80

240

50

0.47



3/4"

19.0

22.3

70

196

50

0.57



7/8"

22.5

25.8

60

175

50

0.7



1"

25.4

29.8

50

150

50

0.8



*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please

 don’t include the Stainless Steel.

*The Hose is tested when the Hose is under condition of rest.

*Temperature-Pressure:

20C---------P

100C-------0.43P

150C----------0.3P

200C------------0.22P

220C--------------0.2P



Stainless Steel Braided  Hose, Working Temperature 260℃ For Brake Hose 0

Stainless Steel Braided  Hose, Working Temperature 260℃ For Brake Hose 1Stainless Steel Braided  Hose, Working Temperature 260℃ For Brake Hose 2



For more detailed information, please contact us.
