Name: AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: AN4/AN6/AN8/AN12
Price: 0.50 USD
Availability: InStock

Home > products > Rubber Fuel Hose >

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer

braided fuel hose

fuel transfer hose

Place of Origin:

CHINA

Brand Name:

PASSION

Certification:

CE / ISO 9001:2008

Model Number:

AN4/AN6/AN8/AN12

Request A Quote

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer

Product Details

Tube:

Fuel / Gasoline Resistant NBR Material

Reinforcement:

High Strength Braided Polyester Thread

Outer Cover:

304 Braided Stainless Steel

W.P.:

20BAR / 300PSI

B.P.:

60BAR/900PSI

Application:

Mainly Used For Conveying Of Gasoline In Automotive Area

Temperature:

-40℃ - +150℃, Customized According To Application.

Standard Length:

50m, 100m.

Steel Material:

304 Stainless Steel

Accessories:

Such As JIC Fittings And Other Hose Connectors

Lead Time:

30 Days For Full 20' Container

Price Term:

EXW Or FOB Or CIF Or DDP

Highlight:

braided fuel hose

fuel transfer hose

Payment & Shipping Terms

Minimum Order Quantity

5000m

Price

USD; 0.5USD/M-0.99USD/M;

Packaging Details

Well packed by good quality braided strap.

Delivery Time

Within 30days for 20' container

Payment Terms

D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability

300000M/MONTH

SAE J30R7 Specs High Tensile Polyester Single Fiber Reinforced Fuel Hose for Automotive

Get Best Price

Video

SAE 30R7 Flexible Rubber Hose / 3/8'' Flexible Fuel Hose For Automotive

Get Best Price

Video

SAE 30R7 Fiber Braided Rubber Fuel Hose , High Temperature Fuel Line for Automotive

Get Best Price

Video

High Temperature SAE J30R7 Rubber Fuel Hose For Automotive Fuel Line

Get Best Price

86-571-8102-3093

Contact Now

Product Description

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer

Structure: Tube: Pure rubber tube. It can be designed as to be Oil / Fuel / Gasoline resistant hoses according to the requirements of application.

Reinforcement: High tensile polyester fiber braided.

Outer cover: Stainless steel wire, or Aluminium wire, or cotton threads, or polyester fiber lines, which is used for strengthening pressure or protection.

Temperature: -40℃ - +150℃, customized according to application.

Application: Mainly used for conveying of Gasoline / Fuel in Automotive Industry.

Standard length: 50m, 100m.

Specification of the inner hose:

Item code	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Length	Measurement	Weight
Item code	inch	mm	mm	bar	psi	bar	psi	m	cbm/roll	kg/m
PRA-06	1/4"	6	13	20	300	60	900	100	0.0256	0.17
PRA-08	5/16"	8	15	20	300	60	900	100	0.0271	0.22
PRA-10	3/8"	10	17	20	60	60	900	100	0.036	0.26
PRA-13	1/2"	13	22	20	300	60	900	100	0.0634	0.4
PRA-16	5/8"	16	25	20	300	60	900	50	0.1095	0.45
PRA-19	3/4"	19	29	20	300	60	900	50	0.146	0.7
PRA-25	1"	25	36	20	300	60	900	50	0.171	0.85

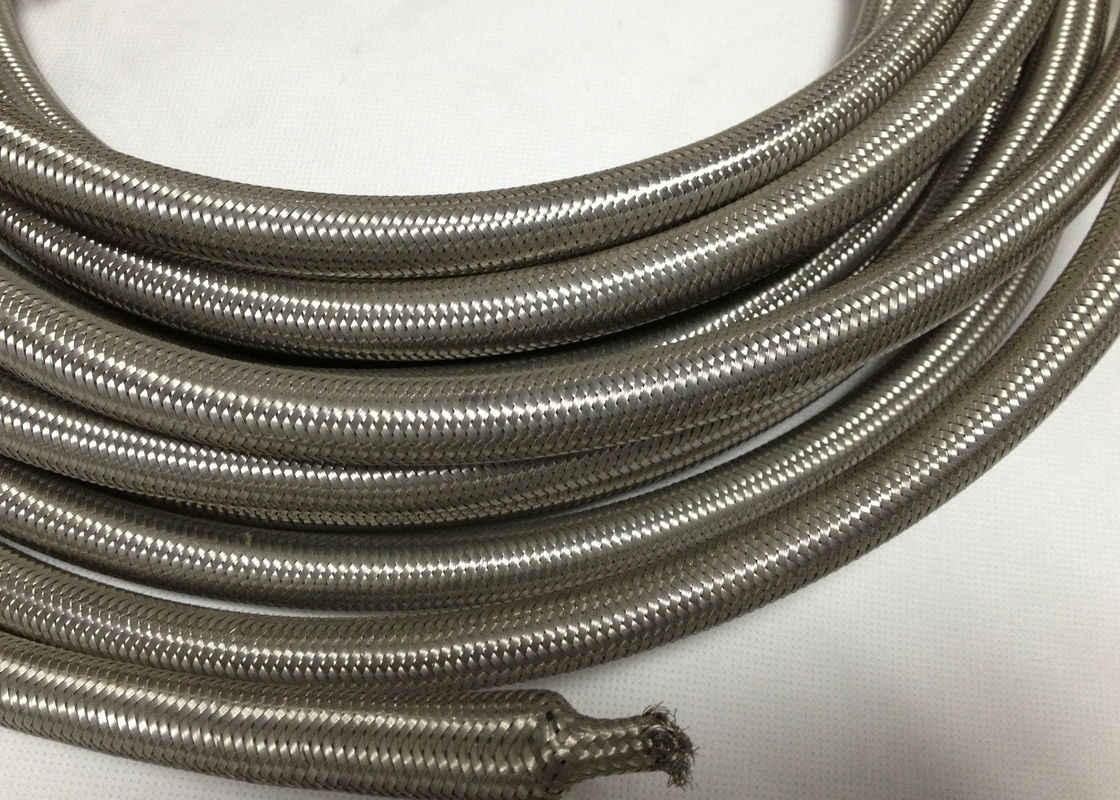

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer 0

AN4 / AN 6 Braided Rubber Fuel Hose for Automotive , Stainless Steel Outer 1

Note: The inner hose can also be Pure rubber tube without fiber braided reinforcement.

If the specifications you need are not in the list, please offer your specification parameters or operating requirements. We’ll check and customize.
