Name: Flexible J30R14 Fuel Hose with Excellent Heat and Permeability Resistance
Brand: Hangzhou Paishun Rubber & Plastic Co., Ltd
SKU: 5/16"
Price: 14 USD
Availability: InStock

Home > Products > Rubber Fuel Hose >

Flexible J30R14 Fuel Hose with Excellent Heat and Permeability Resistance

Flexible J30R14 fuel hose

Heat resistant fuel hose

Permeability resistant rubber hose

Place of Origin:

CHINA

Brand Name:

PASSION

Certification:

IATF16949, ISO9001:2015, CE, ROHS, REACH.

Model Number:

5/16"

Document:

SAEJ30R14 fuel hose.pdf

Request A Quote

Product Details

Working Pressure:

218 Psi

Burst Pressure:

725 Psi

Rubber Material:

FKM, ECO

Reinforcement:

Aramid Fiber

Barrier:

THV Barrier

Suggest Working Temperature:

Up To +130 °C (+266°F)

Resistant Working Temperature:

Up To +150 °C (+302°F)

Inner Diameter:

3/16" To 5/8"

Outer Diameter:

10.3 Mm To 23.6 Mm

Medium:

Gasoline, Ethanol Gasoline, Diesel, Bio-diesel

Highlight:

Flexible J30R14 fuel hose

Heat resistant fuel hose

Permeability resistant rubber hose

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

14 USD/m

Packaging Details

well packed by high quality braided straps

Delivery Time

25-30days

Payment Terms

T/T

Supply Ability

50000 meters/month

SAE J30R10 Fuel Hose – Flexible Low Permeation Submersible Hose for Gasoline Diesel Ethanol

Get Best Price

SAE J30R10 Fuel Hose – Flexible Low Emission Oil-Resistant Hose for Auto Use

Get Best Price

Video

Flexible J30R14 Fuel Hose with Excellent Heat and Permeability Resistance

Get Best Price

Video

SAE J30R7 Fuel Hose For Automotive And Motorcycle

Get Best Price

86-571-8102-3093

Contact Now

Product Description

SAE J30R14 Fuel Hose Application:

Designed for fuel engines where low permeation is required.

For transferring gasoline, ethanol gasoline (E10, E15, E85), diesel and bio-diesel etc. in vehicles.

Product Description

Temperature Resistant: Up to +130 °C (+266°F) for long term use and +150 °C (+302°F) for short term use.
Standard Color: Black
Standard: SAE J30 R14 fuel line

Part Number	I.D.		O.D.	Max W.P.		Min B.P.
No.	in	mm	mm	psi	MPa.	psi	MPa
PJ30R14-03	3/16"	4.8	10.3	218	1.5	725	5.0
PJ30R14-04	1/4"	6.4	13.0	218	1.5	725	5.0
PJ30R14-05	5/16"	7.9	14.6	218	1.5	725	5.0
PJ30R14-06	3/8"	9.5	16.5	218	1.5	725	5.0
PJ30R14-08	1/2"	12.7	20.4	218	1.5	725	5.0
PJ30R14-10	5/8"	15.9	23.6	218	1.5	725	5.0

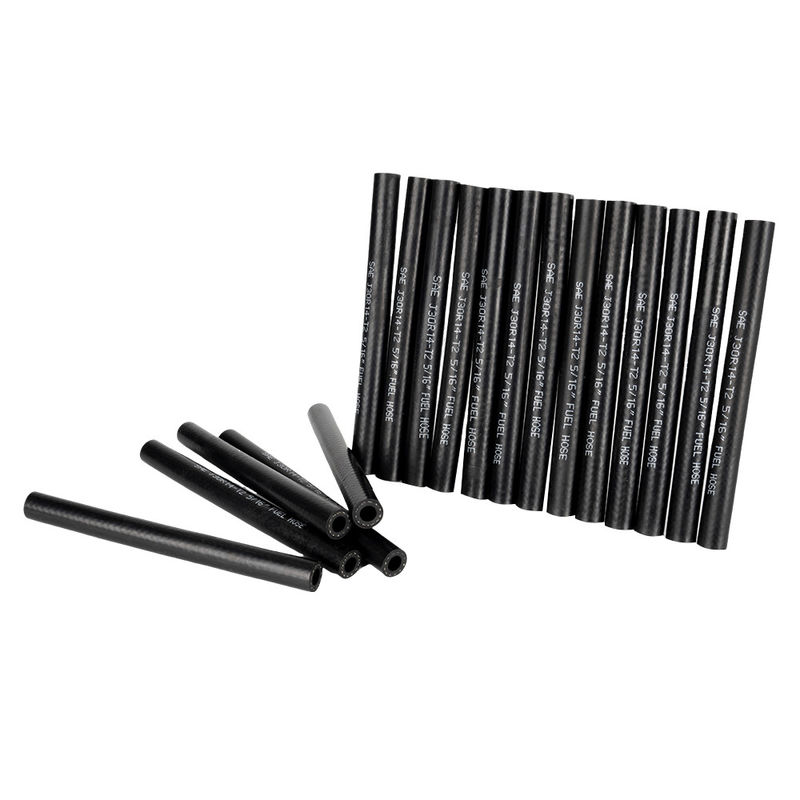

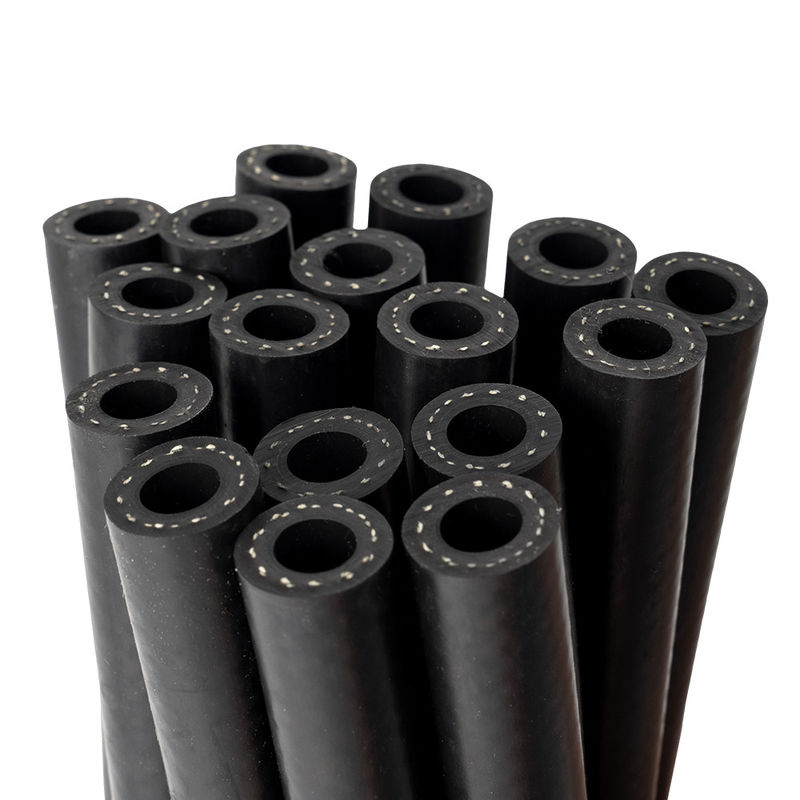

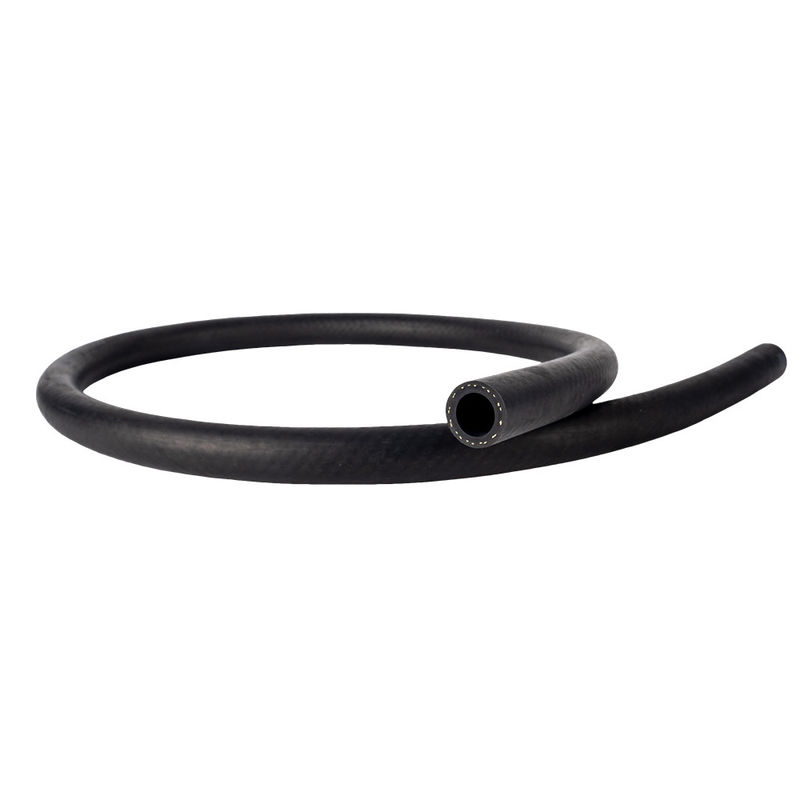

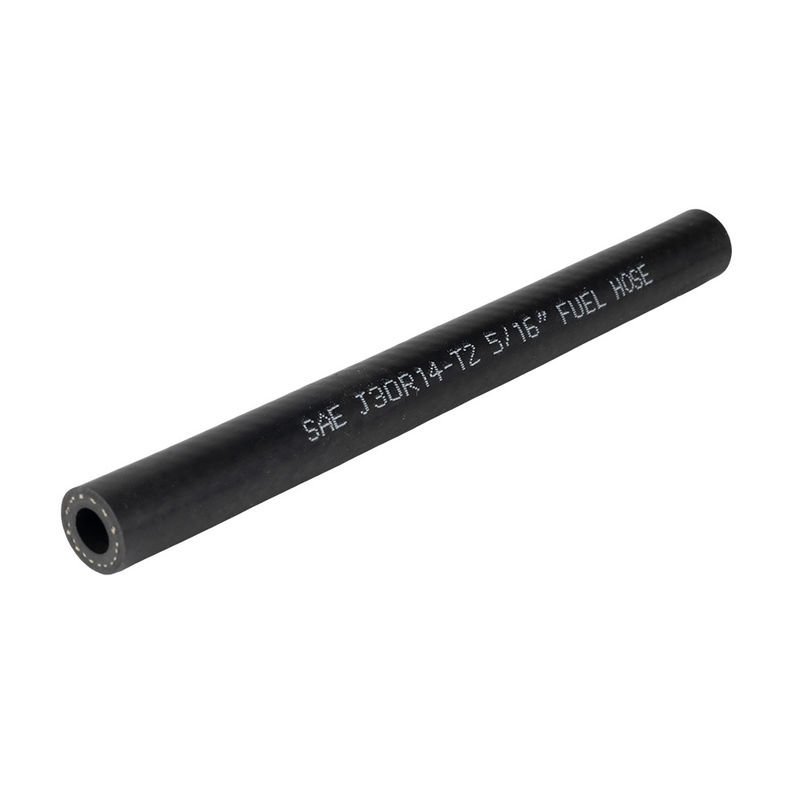

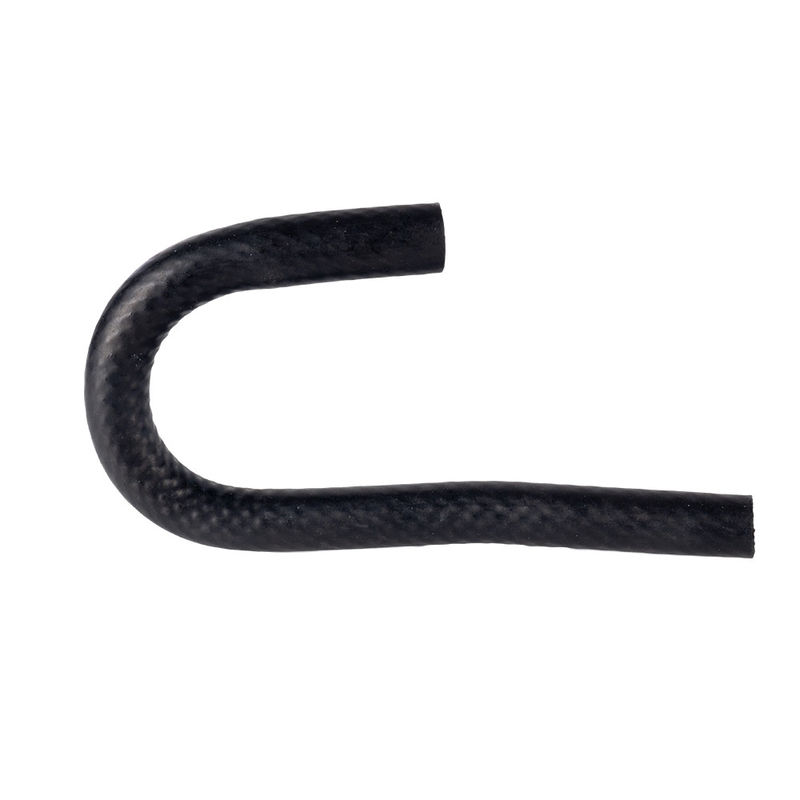

Flexible J30R14 Fuel Hose with Excellent Heat and Permeability Resistance 0

Flexible J30R14 Fuel Hose with Excellent Heat and Permeability Resistance 1
