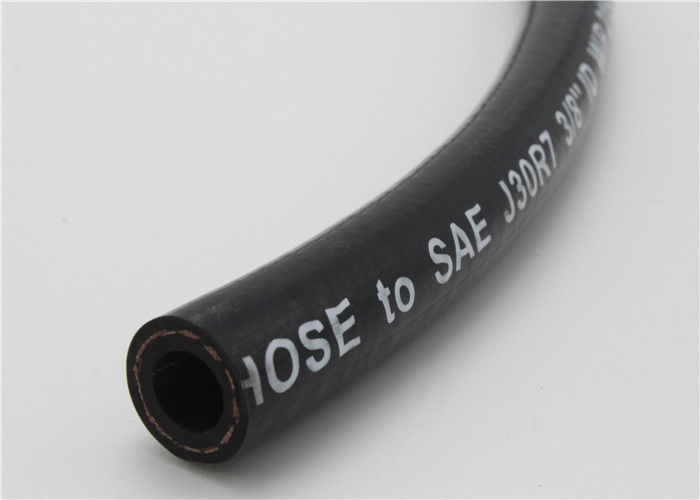

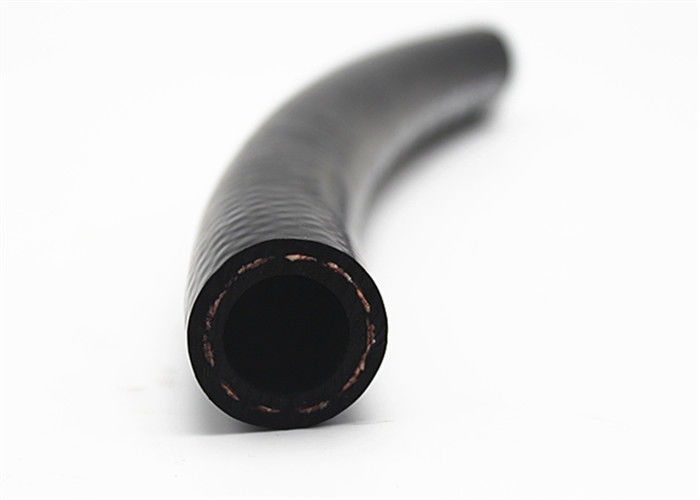

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

  • High Light

    braided fuel hose

    ,

    fuel transfer hose

  • Material
    Nitrile Rubber
  • Reinforcement Layer
    High Tensile Polyester Fiber Braided
  • Color
    Black
  • I.D Size
    9.5mm +/-0.3
  • OD Size
    17mm+/-0.5
  • Standard Length
    50m, 100m
  • Surface
    Smooth
  • Standard
    SAE 30R7
  • Working Pressure
    15bar (215psi)
  • Burst Pressure
    45bar (645psi)
  • Packing
    Strong OPP Film And Woven Stripes Wrapped
  • Temperature Range
    -30° To +100°C
  • Trademark
    PASSION Or OEM
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 3/8''
  • Minimum Order Quantity
    1,000 m
  • Price
    Negotiable
  • Packaging Details
    Wrapped by transparent OPP film, pallet, color packing can be customized
  • Delivery Time
    20 days after received the advance payment
  • Payment Terms
    T/T, LC, Paypal or Western Union
  • Supply Ability
    400,000 m per month

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding

High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding



Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m/roll cbm/roll kg/m
3/16" 5 11.5 20 300 60 900 100 0.028 0.15
1/4" 6 13 20 300 60 900 100 0.031 0.17
5/16" 8 15 20 300 60 900 100 0.0353 0.216
3/8" 10 17 20 300 60 900 100 0.0442 0.24
1/2" 12.7 22 20 300 60 900 100 0.0756 0.428



Specifications:


High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding 0


High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding 1

Description:


1, Construction:  Tube: Smooth Black Fuel Resistant nitrile synthetic rubber
                            Reinforcement: High tensile polyester fiber braided.
                            Cover:
Smooth Black Ozone and Abrasion Resistant nitrile synthetic rubber

2, Appearance:   Smooth finish, Black


3, Applicable temperature: -30℃ to +100℃


4, Bend radius: 10 times of proper diameter dimension


5, Package:  Common packed by OPP transparent film and woven stripes wrapped

The pallet and woven bag packing are available, the color sticker can be offerd,

but shall be charged additionally.


6, Trademark: PASSION, OEM is available


7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture  after 180°bending over or doubling


8, Certificates: CE, SGS


9, Main market: Middle East, Europe and America


10: Joint Connection: Customized as your request



Applications:

It is applied to
transfer of unleaded, leaded, diesel & E10 fuels.



Competitive Advantage:

Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China.

8 years manufacturing experience, 50 sets of braiders and 3 production lines.

Paishun has a strict quality inspection team, every shipment would be tested before shipment.


Free sample can be offered, we are happy to customize as your request.



High Temperature 3 / 8'' Fuel Hose SAE 30R7 with High Tensile Fiber Braiding 2

Cooperative Brands:


WELDMANMax WeldSAEFLEX, BALFLEX
