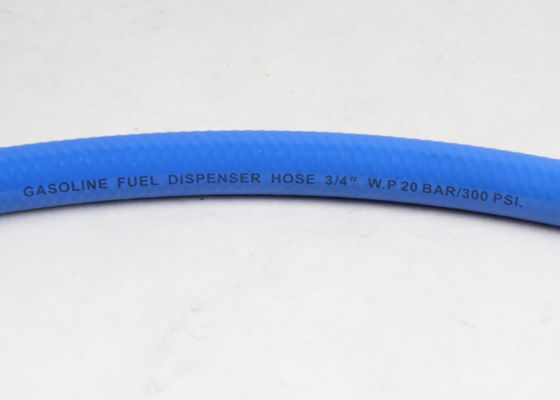

ID 3 / 4 Inch Blue Flexible Fuel Dispenser Hose Single Wire For Gas Station
Specifications:
|
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m/roll |
cbm/roll |
kg/m |
|
|
|
3/4 |
19.1 |
28 |
30 |
450 |
120 |
1740 |
50 |
0.073 |
0.55 |
Description:
1, Construction: Tube: NBR Synthetic Rubber
Reinforcement: Single High-strength wire braided.
Cover: NBR Synthetic Rubber
2, Appearance: Smooth finish, Black, Red, Blue, Green
3, Applicable temperature: -40℃ to +70℃
4, Bend radius: 10 times of proper diameter dimension
5, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offerd,
but shall be charged additionally.
6, Trademark: PASSION, OEM is available
7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling
8, Certificates: CE, SGS
9, Main market: Middle East, Europe and America
10: Joint Connection: Customized as your request
Applications
For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested before shipment.
Free sample can be offered, we are happy to customize as your request.
