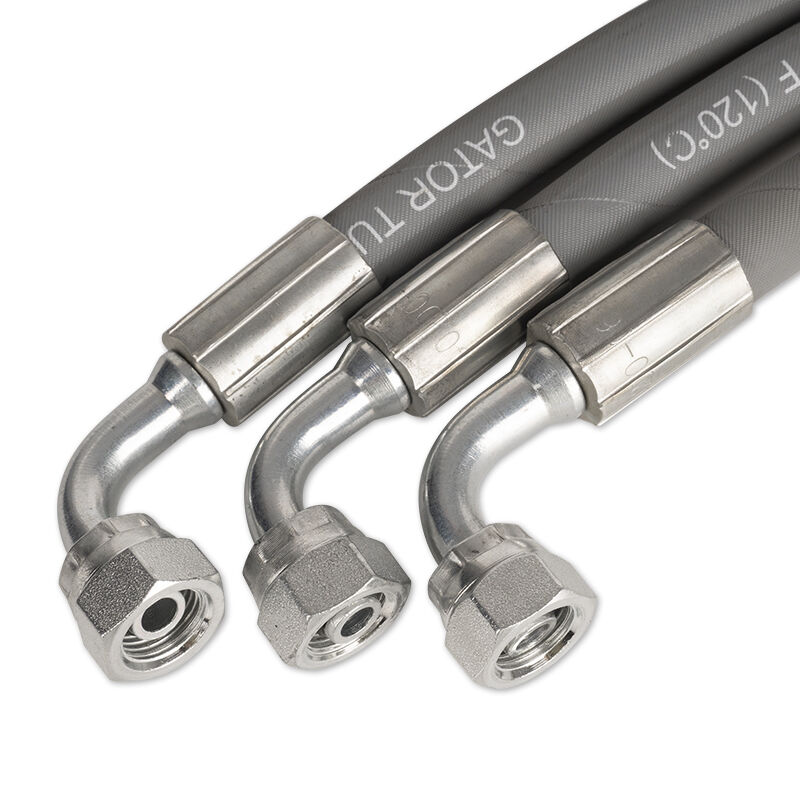

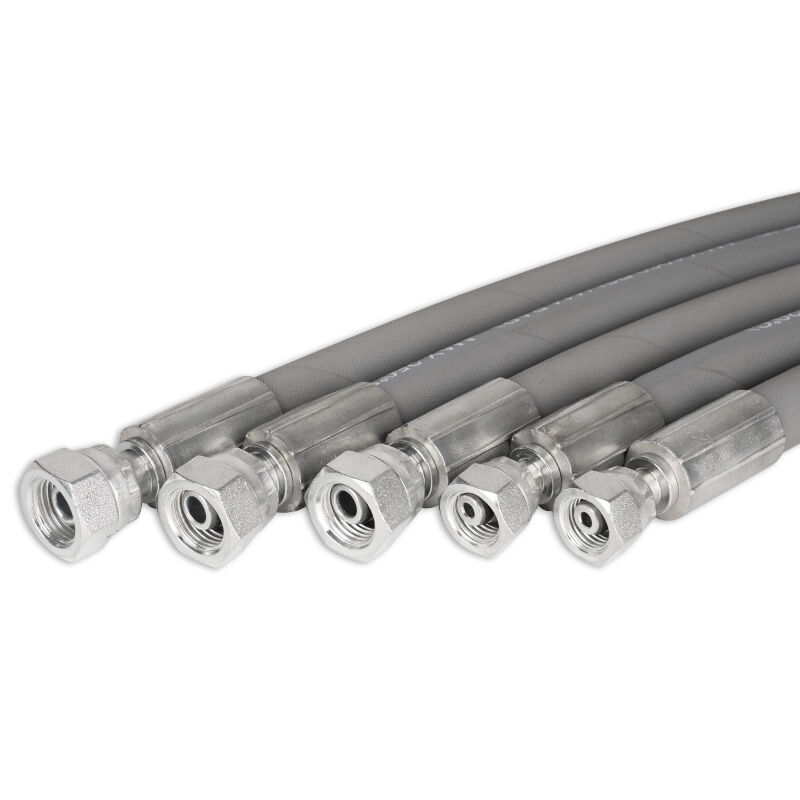

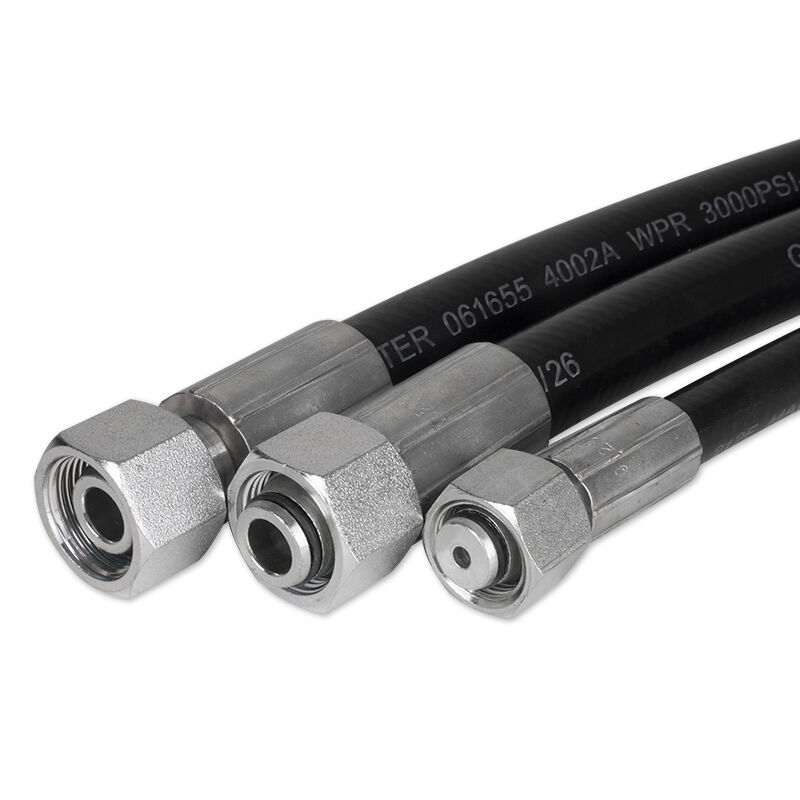

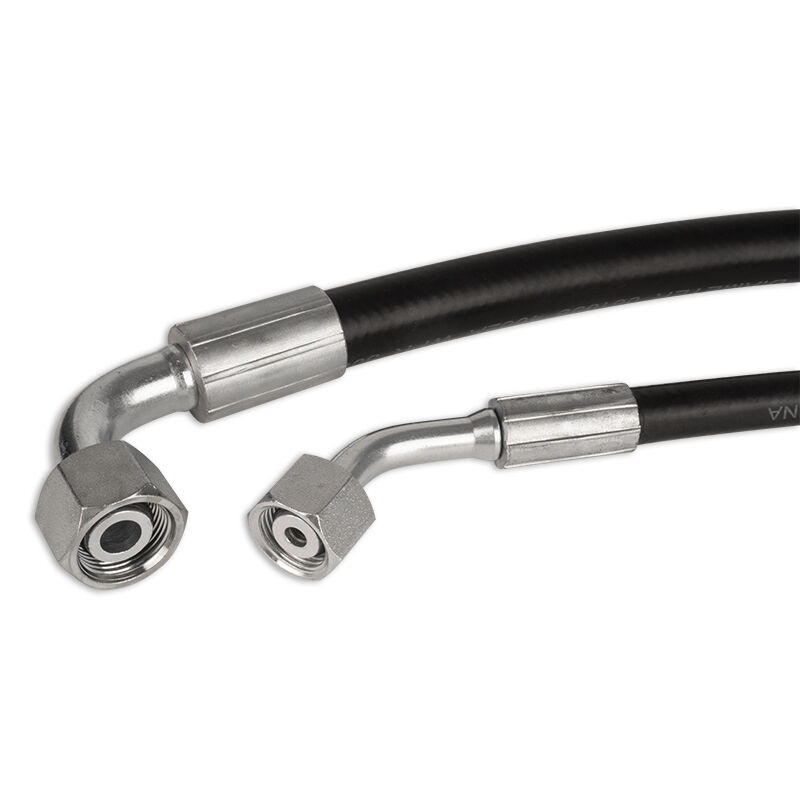

Two Wire Braid EN857 2SC High Pressure Hydraulic Hose For Bus

Place of Origin:

Zhejiang, China

Brand Name:

PASSION

Certification:

CE, ISO 9001, MSHA

Model Number:

2SC

Request A Quote

Product Details

Tube:

Oil Resistant Synthetic Rubber

Reinforcement:

Two High Tensile Steel Braid

Cover:

Cloth Or Smooth Wrapped

Type Approvel:

MSHA / CE

Type:

EN857 2SC

Max Temperature:

212 °F

Temperature Range:

-40 °F / 212 °F

Payment & Shipping Terms

Minimum Order Quantity

400 meters

Price

Negotiable

Packaging Details

Colorful poly stripes or as your request.

Delivery Time

20 days

Payment Terms

T/T,L/C,,PayPal,Western Union,,etc.

Supply Ability

350,000 meters per month

EN857 2SC High Pressure Hydraulic Rubber Hose Assembly For Bus Application

Get Best Price

Factory Direct 3/8" SAE 100R6 One Braid Fiber Reinforced Hydraulic Rubber Hose Custom Lengths Smooth or Wrapped Cover High Tensile

Get Best Price

Video

Flexible EN857 1SC High Pressure Hydraulic Hose

Get Best Price

Video

One Wire Braid EN857 1SC High Pressure Hydraulic Hose

Get Best Price

86-571-8102-3093

Contact Now

Product Description

2SC is a compact, high-pressure hydraulic hose standardized under EN 857 2SC (and ISO 11237 2SC), featuring two braids of high-tensile steel wire reinforcement. It is widely recognized as a more flexible, lighter, and compact alternative to the standard 2SN hose, specifically designed for medium-to-high pressure hydraulic lines where installation space is constrained.

🛠️ Construction

Inner Tube: Black, oil-resistant synthetic rubber (typically Nitrile/NBR), compatible with petroleum-based and water-based fluids.
Reinforcement: Two layers (braids) of high-tensile steel wire.
Cover: Black synthetic rubber, resistant to oil, abrasion, weather, and ozone (often MSHA-approved for flame resistance).
⚙️ Key Specifications
Standards: EN 857 2SC, ISO 11237 2SC, and typically exceeds or meets SAE 100R16 performance criteria.
Working Pressure (Example 1/4"): Approximately 400 bar (5800 psi).
Safety Factor: Usually 4:1 (burst pressure is four times working pressure).
Temperature Range: Generally -40°C to +100°C (some brands allow intermittent peaks up to +120°C).

🚜 Common Applications

Oil Hydraulics: Medium-high pressure lines in narrow spaces, return lines, and suction lines.
Industries: Construction equipment, agricultural machinery, mining, and general industrial systems.

Two Wire Braid EN857 2SC High Pressure Hydraulic Hose For Bus
