SAE 100R6 One Fiber Braid Hydraulic Hose – Nonmetallic, Rubber Covered, for Low-Pressure Hydraulic Systems

Size Range: 3/16" to 1-1/4" | Working Pressure: Up to 505 PSI (3.4 MPa) | Temperature Range: -40°C to +100°C (-40°F to +212°F)

Product Overview

The SAE 100R6 One Fiber Braid Hydraulic Hose is a high-quality, nonmetallic rubber hose designed for reliable low-pressure hydraulic fluid transmission in industrial, agricultural, and mobile equipment applications. Featuring a single high-tensile fiber braid reinforcement, this hose delivers excellent flexibility and kink resistance while maintaining consistent pressure performance.

This hose is widely used in hydraulic systems, construction machinery, agricultural equipment, lubrication lines, and low-pressure return lines where durability, oil resistance, and cost-effectiveness are required.

Key Features

Durable Inner Tube: Synthetic rubber tube provides excellent resistance to hydraulic oils and fluids, ensuring safe and stable fluid transmission with minimal degradation over time.

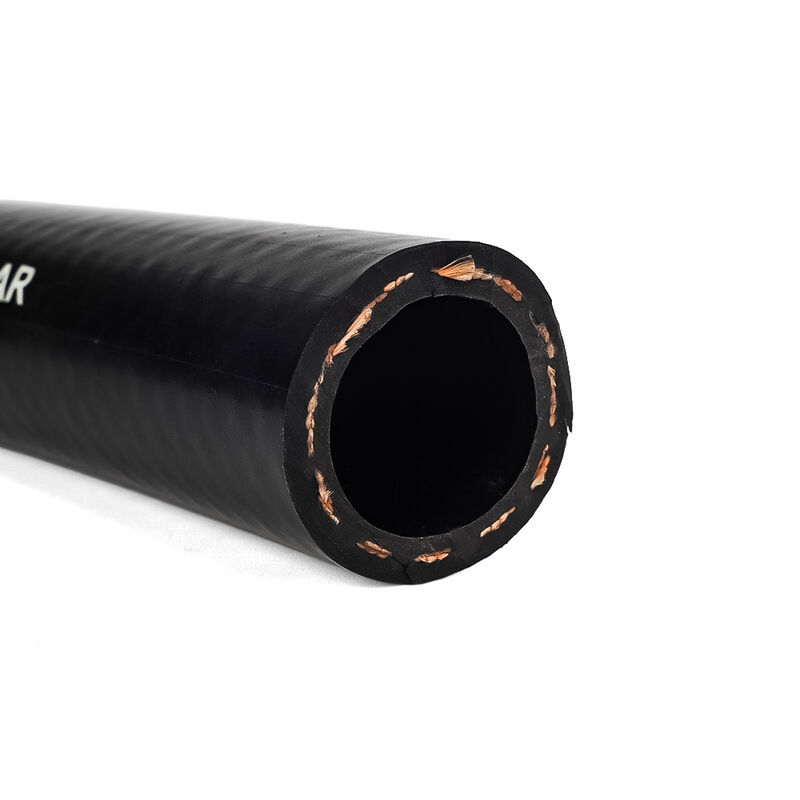

High-Strength Fiber Reinforcement: One braid of high-tensile textile fiber delivers superior flexibility, kink resistance, and consistent pressure performance while remaining nonmetallic for lightweight handling.

Protective Outer Cover: Oil- and weather-resistant synthetic rubber cover ensures long service life in demanding working conditions, protecting against abrasion, ozone, and environmental exposure.

Wide Temperature Range: Operates reliably from -40°C to +100°C (-40°F to +212°F), making it suitable for extreme cold and high-heat environments.

Industry Standards: Meets or exceeds SAE 100R6 performance requirements, ensuring safety, reliability, and global compatibility.

Flexible Cover Options: Available in Smooth Cover or Wrapped Cover finish to suit your specific application and installation preferences.

Comprehensive Size Range: Available in 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1", and 1-1/4" nominal sizes to accommodate diverse system requirements.

Technical Specifications
