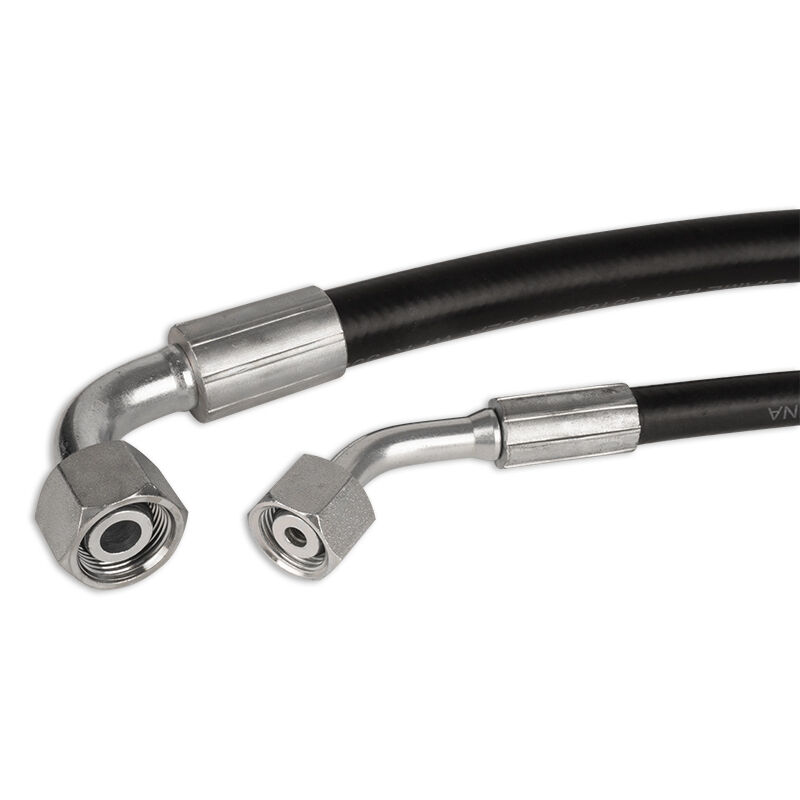

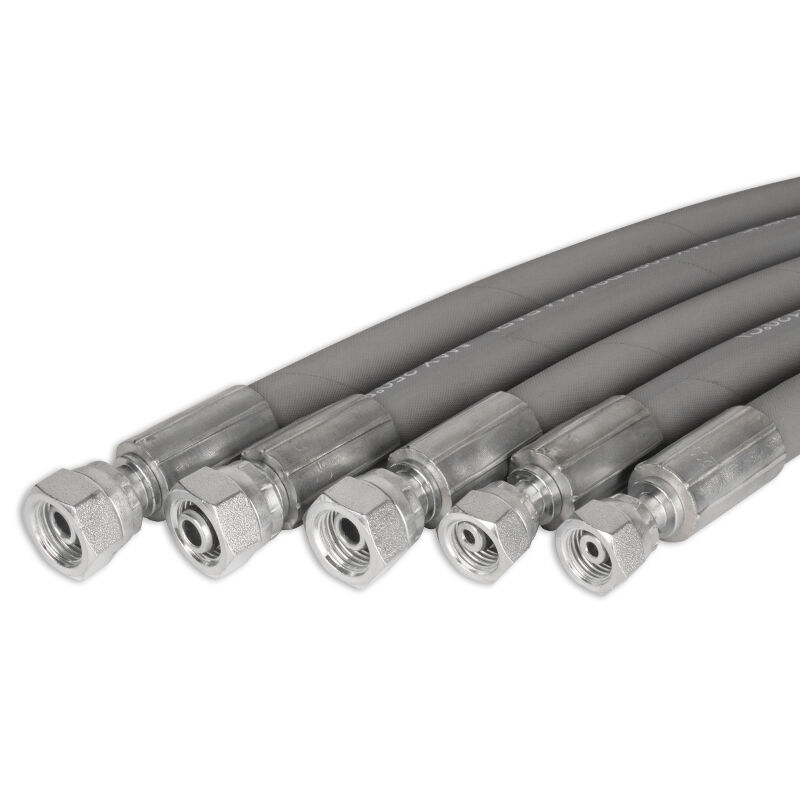

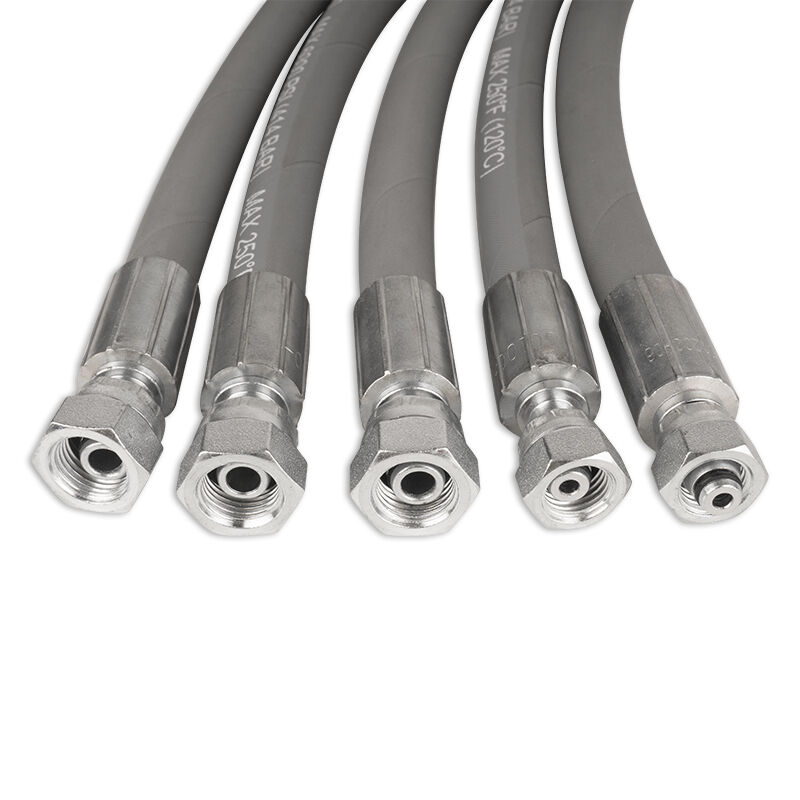

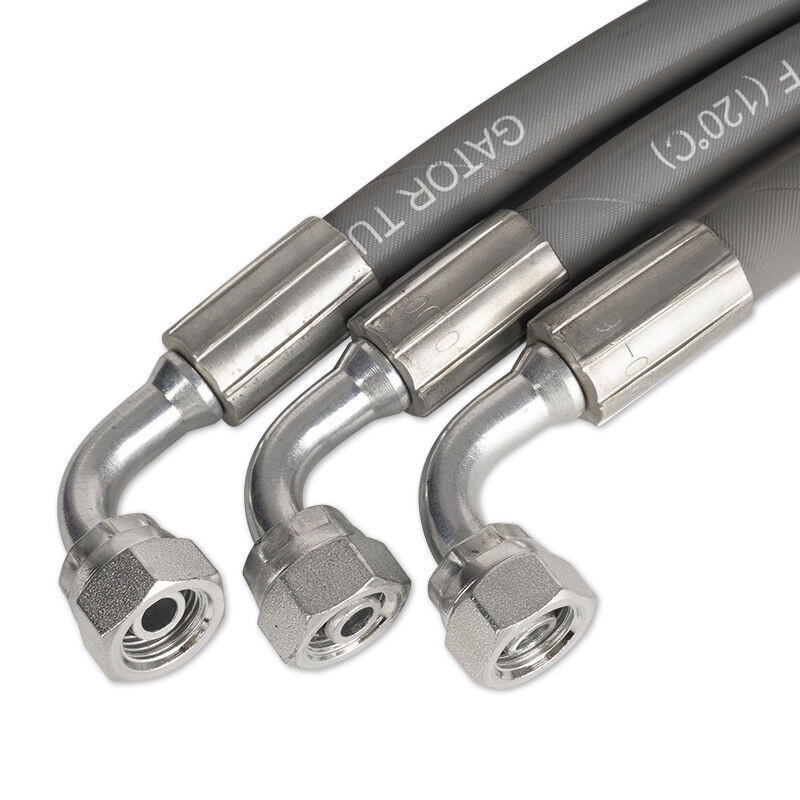

EN857 2SC High Pressure Hydraulic Rubber Hose Assembly For Bus Application

Place of Origin:

Zhejiang, China

Brand Name:

PASSION

Certification:

CE, ISO 9001, MSHA

Model Number:

2SC

Request A Quote

Product Details

Tube:

Oil Resistant Synthetic Rubber

Reinforcement:

Two High Tensile Steel Braid

Cover:

Cloth Or Smooth Wrapped

Type Approvel:

MSHA / CE

Type:

EN857 2SC

Max Temperature:

212 °F

Temperature Range:

-40 °F / 212 °F

Payment & Shipping Terms

Minimum Order Quantity

400 meters

Price

Negotiable

Packaging Details

Colorful poly stripes or as your request.

Delivery Time

20 days

Payment Terms

T/T,L/C,,PayPal,Western Union,,etc.

Supply Ability

350,000 meters per month

EN857 2SC High Pressure Hydraulic Rubber Hose Assembly For Bus Application

Get Best Price

Factory Direct 3/8" SAE 100R6 One Braid Fiber Reinforced Hydraulic Rubber Hose Custom Lengths Smooth or Wrapped Cover High Tensile

Get Best Price

Video

Flexible EN857 1SC High Pressure Hydraulic Hose

Get Best Price

Video

One Wire Braid EN857 1SC High Pressure Hydraulic Hose

Get Best Price

86-571-8102-3093

Contact Now

Product Description

2SC hydraulic hose is a compact, high-pressure hose manufactured to EN 857 2SC / ISO 11237 2SC, reinforced with two braids of high-tensile steel wire. It delivers performance comparable to SAE 100R16, offering a smaller bend radius and greater flexibility than standard 2SN hose — ideal for tight-routing hydraulic systems.

Construction

Inner tube: Oil-resistant synthetic rubber (NBR)
Reinforcement: Two braids of high-tensile steel wire
Cover: Abrasion-, weather-, and ozone-resistant synthetic rubber (flame-retardant/MSHA options available)

Performance

Working pressure: Up to ~400 bar (5,800 psi) for 1/4" size
Safety factor: 4:1
Temperature range: -40°C to +100°C (short-term peaks to +120°C)
Standards: EN 857 2SC, ISO 11237 2SC, SAE 100R16 equivalent

Applications

Medium-to-high pressure hydraulic lines, return and suction lines, construction and agricultural machinery, mining equipment, and space-constrained industrial systems.

Key Advantage

Compared with 2SN, 2SC offers a tighter bend radius and lighter weight while maintaining similar pressure ratings — making it the preferred choice where installation space is limited.
