Smooth Bore Covoluted PTFE Hose

Place of Origin:

China

Brand Name:

PASSION

Certification:

FDA, RoHS, REACH

Model Number:

301

Request A Quote

Product Details

Payment & Shipping Terms

Minimum Order Quantity

100m

Price

Negotiation

Packaging Details

Well packed by poly stripes or as your request.

Delivery Time

Usually in 10-20 days after received your payment

Payment Terms

T/T, L/C, Paypal

Supply Ability

250,000 meters per month

Smooth Bore Covoluted PTFE Hose

Get Best Price

Smooth Bore PTFE Inner Tube for Power Steering in Industrial Applications

Get Best Price

Smooth Bore PTFE Inner Tube for Chemical Transfer in Industrial Applications

Get Best Price

Smooth Bore PTFE Braided Hose for High Temperature Resistence

Get Best Price

86-571-8102-3093

Contact Now

Product Description

This PTFE hose refers to a highly specialized industrial hose engineered for conveying aggressive chemicals, high-purity fluids, or high-temperature media. Its core is constructed from PTFE (Polytetrafluoroethylene), a material renowned for its exceptional chemical resistance, wide temperature tolerance, and non-stick properties. The "Smooth Bore" feature indicates that the inner liner is seamless and flat, which minimizes pressure drop, prevents clogging, and allows for easy cleaning—critical for sanitary or precise transfer applications. The external "Convoluted" structure, with its distinct bellows-like folds, provides excellent flexibility, allowing the hose to bend and route easily in tight spaces without kinking, while also offering superior resistance to mechanical stress and vibration. This combination makes it an ideal solution for demanding sectors such as chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.

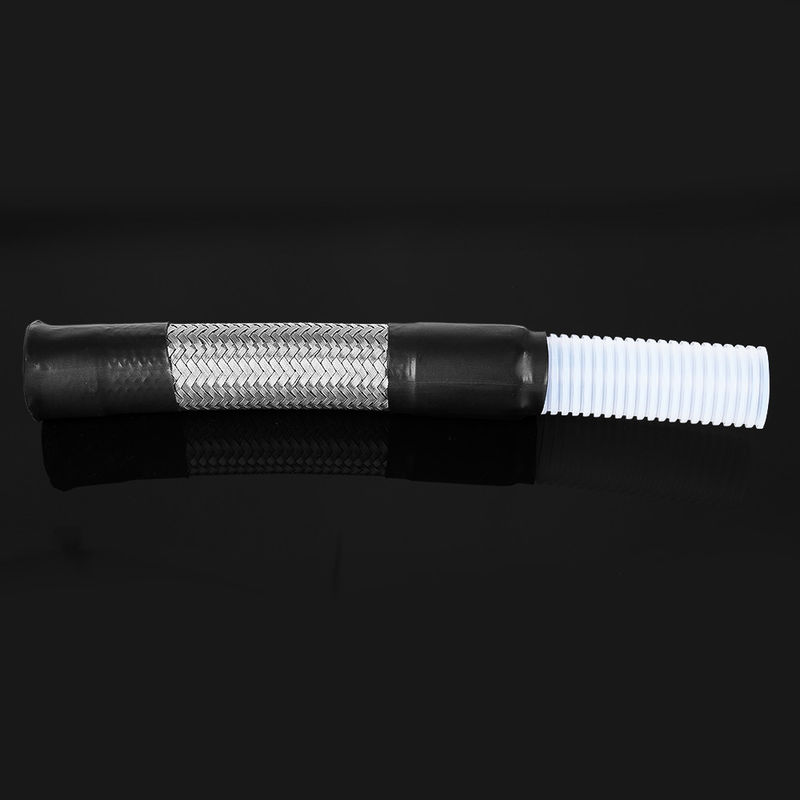

Smooth Bore Covoluted PTFE Hose 0

Tube: PTFE

Reinforcement: SS304/316 wire

Temperature: -65C to 260C

Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.

ID. (inch)	ID.(mm)	OD (mm)	Thickness (mm)	WP (bar)	BP (bar)	Min. Bend Radius (mm)
3/8"	10	13.5	1.4	90	360	25
1/2"	13	16.6	1.6	83	333	28
5/8"	16	20.5	1.8	75	300	50
3/4"	19	23.7	2	74	296	63
1"	25.4	30.8	2	59	236	90
1-1/4"	32	37	2	38	150	150

Application:

Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.

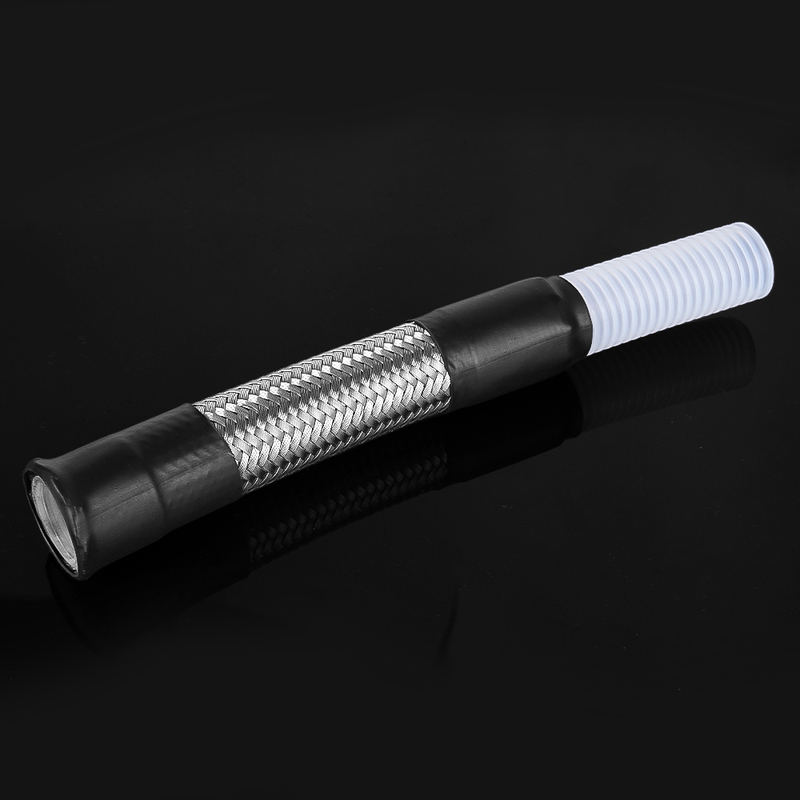

Smooth Bore Covoluted PTFE Hose 1

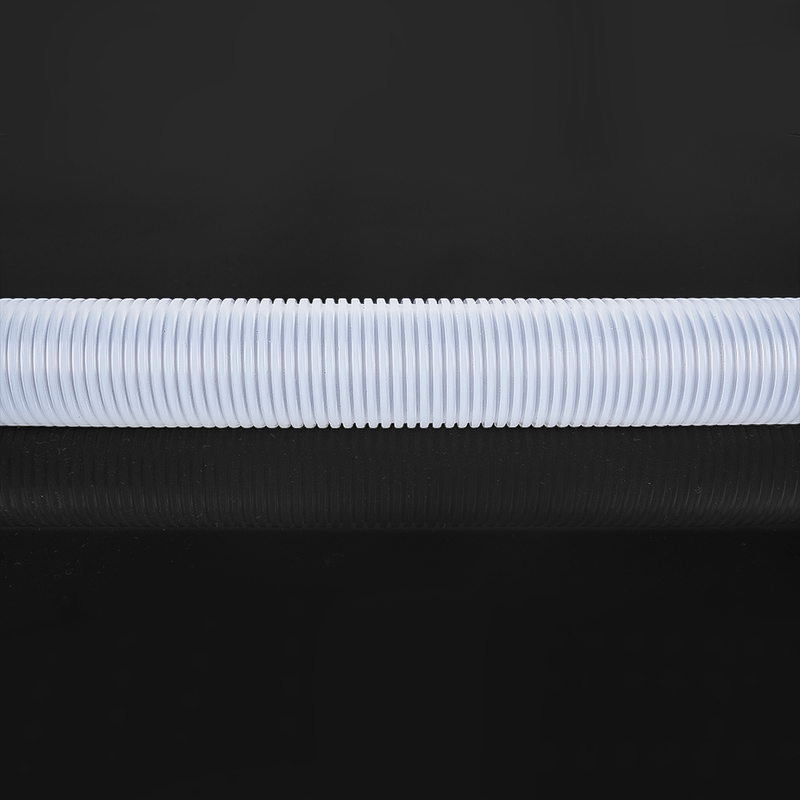

Smooth Bore Covoluted PTFE Hose 2
