Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
SAE 100R14

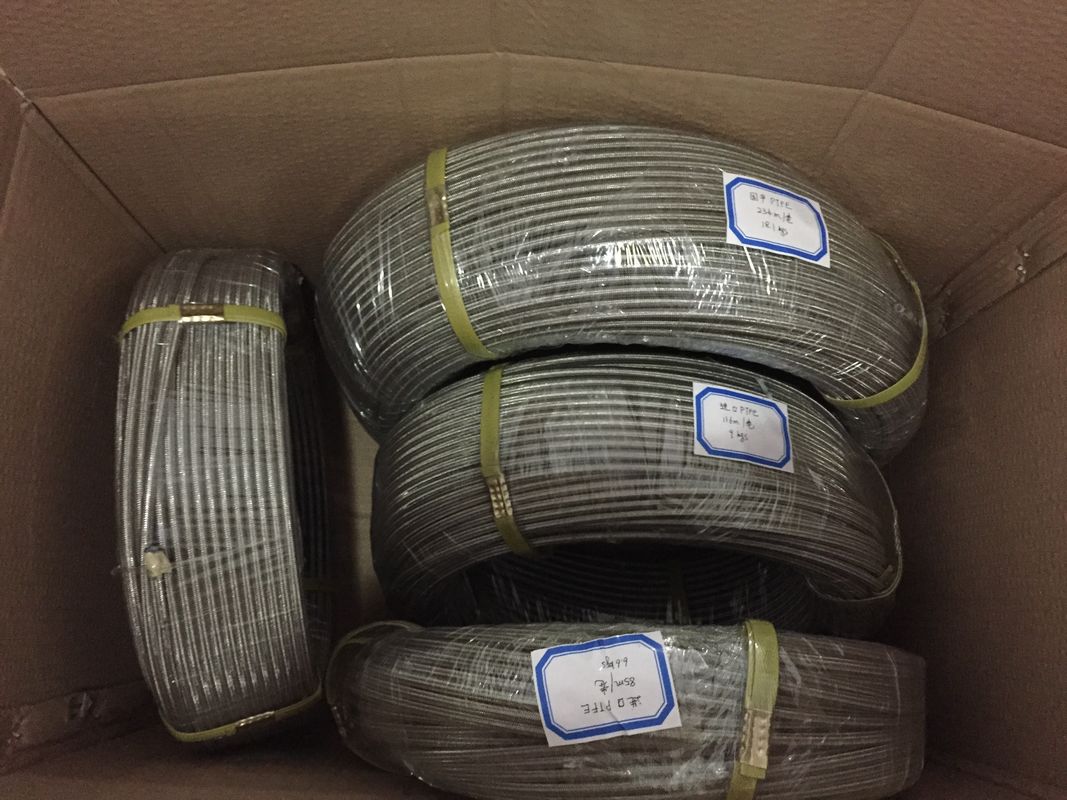

Stainless Steel Braided Hose Smooth Bore 100M Length For Marine Industry
Description:
Smooth Surface Stainless Steel Braided PTFE Hoses
Construction: Tube: The imported F-205 of Japan Daikin
Cover: SS304 braided.
Temperature: -50℃ to +260℃
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Standard length: 100m (Random Length).
Sizes
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Weight |
|
|
inch |
mm |
mm |
bar |
bar |
m |
kg/m |
|
|
PPT-02 |
1/8" |
3.5 |
6.2 |
314 |
1080 |
100 |
0.07 |
|
PPT-03 |
3/16" |
5.0 |
7.7 |
256 |
752 |
100 |
0.09 |
|
PPT-04 |
1/4" |
6.5 |
9.3 |
232 |
644 |
100 |
0.11 |
|
PPT-05 |
5/16" |
8.0 |
10.8 |
180 |
504 |
100 |
0.15 |
|
PPT-06 |
3/8" |
10.0 |
12.7 |
152 |
426 |
100 |
0.17 |
|
PPT-08 |
1/2" |
13.0 |
16.3 |
90 |
270 |
100 |
0.31 |
|
PPT-10 |
5/8" |
16.3 |
19.3 |
80 |
240 |
50 |
0.47 |
|
PPT-12 |
3/4" |
19.0 |
22.3 |
70 |
196 |
50 |
0.57 |
|
PPT-14 |
7/8" |
22.5 |
25.8 |
60 |
175 |
50 |
0.7 |
|
PPT-16 |
1" |
25.4 |
29.8 |
50 |
150 |
50 |
0.8 |
*The Inner Diameter and Outer Diameter only refer to the PTFE Hose inside, when you measure please
don’t include the Stainless Steel.
*The Hose is tested when the Hose is under condition of rest.
*Temperature-Pressure:
20C---------P
100C-------0.43P
150C----------0.3P
200C------------0.22P
220C--------------0.2P
