1/4" 6AN Braided PTFE Hose For Air Compressor

1/4" 6AN Braided PTFE Hose For Air Compressor

1/4" Braided PTFE Hose

Air Compressor Braided PTFE Hose

PTFE PTFE braided hose

Place of Origin:

China

Brand Name:

PAISHUN

Certification:

ISO9001

Model Number:

P04-R14

Contact Us

Request A Quote
Product Details
Inner Tube:
PTFE
Cover:
SS304 Wire Braided
I.D.:
1/4"
Length:
Customized
Connector:
Carbon Steel With Zinc-nickel Alloy Plated
Thread Of Connector:
JIC Female 04
Payment & Shipping Terms
Minimum Order Quantity
200PCS
Price
Negotiated
Packaging Details
woven strips wrapped / pallets, carton, reel or customized
Delivery Time
15~20 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
100,000 meter per month
Product Description



Character of PTFE
The PTFE hose material is made of Japanese Daikin.
The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.
PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:
1. Excellent weather resistance, long service life, no brittle fracture and no aging.
2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.
3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
4. With a very low friction coefficuent. non-flammable.
5. With very low evaporate transpiration rate, cold liquid is not volatile.
6. With excellent electrical charateristics (does not change with frequency and temperature changes)
7. Excellent mechanical properties, shock resistance and flexibility.




1/4" 6AN Braided PTFE Hose For Air Compressor 0



Inner tube: PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Advantage:
Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.


no Specification I.D. O.D. Thickness W.P. B.P. Min.Bending Radius
mm mm mm bar bar mm
1 1/8 3.5 6.6 1 320 988 51
2 3/16 4.8 7.6 0.85 242 726 75
3 1/4 6.4 9.2 0.85 210 653 81
4 5/16 8 11 0.85 188 587 92
5 3/8 9.7 12.8 0.85 185 556 131
6 1/2 12.7 15.9 1 106 461 182
7 5/8 16 19.2 1 90 382 211
8 3/4 19 22.7 1.2 78 269 338
9 7/8 22.2 26 1.2 60 195 421
10 1 25 29.3 1.5 40 153 539
11 2 50 55.6 2 30 120 1015

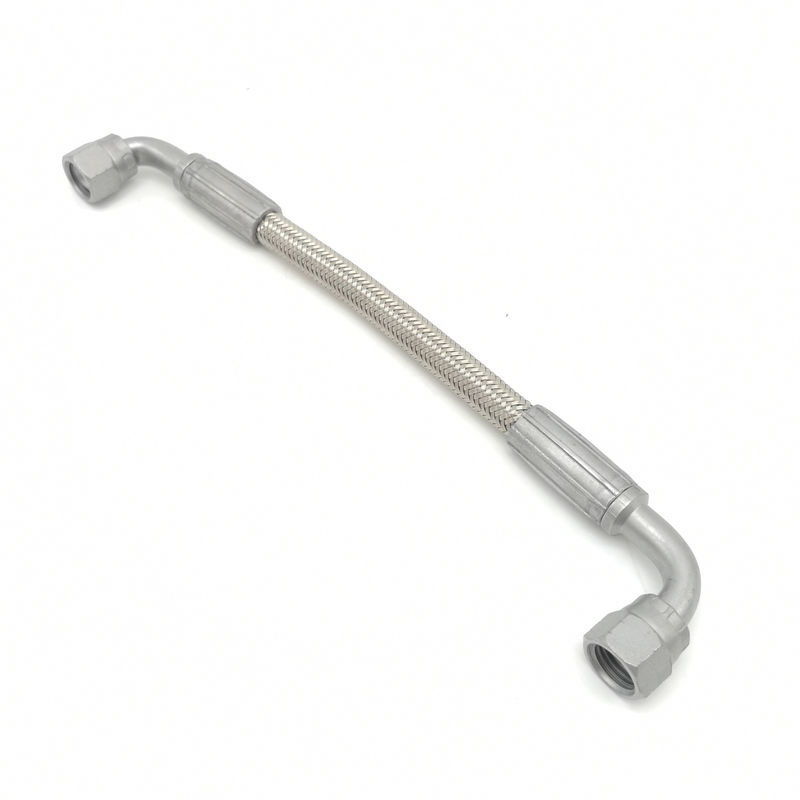

PTFE Hose Assembly

We can crimp the hose assembly in our factory.
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316

1/4" 6AN Braided PTFE Hose For Air Compressor 1

Application
Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

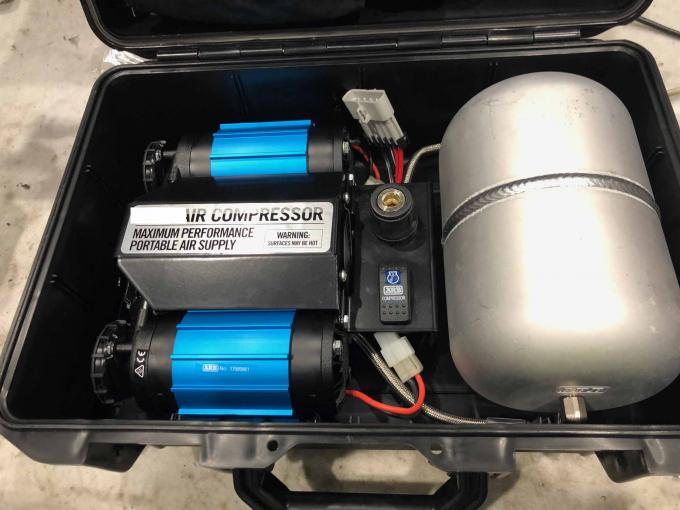

-Air Compressor

1/4" 6AN Braided PTFE Hose For Air Compressor 2
1/4" 6AN Braided PTFE Hose For Air Compressor 3
