Place of Origin:
China
Brand Name:
PAISHUN
Certification:
CE ISO 9001-2015
Model Number:
ID 3/8" 1/2"
ID 3/8" 1/2" Push lock Fuel Line 300 PSI Non - Clamping Long Service Life
PUSH ON HOSE, PUSH- LOK HOSE, PUSH LOCK HOSE
Non-clamp fastening, RMA super oil resistant, wear resistant and bending resistant;
120℃ temperature resistant, applicable to outdoor harsh environment, excellent durability;
Application: High-quality multipurpose push-on hose is especially designed for manipulators and automation equipment, with flexibility, durability and high tensile strength. It is especially suitable for transporting gas, oils, air, water and emulsified liquid at rigorous occasions in assembly line, mold, robot and T-grade welding. It is non-conducting, and can withstand 6000V or above voltage.
Technical characteristics: It is produced according to the highest European and American standards, so that it can withstand severe tests in aspect of air-tightness, durability and pressure safety.
The hose stands 5 million times of bending tests, is applicable to rolling-up of spindle, in particular to occasions needing repeated bending or friction;
It has excellent anti-UV property, can be used around clock.
By dedicated push-on connectors, it can be fastened without clamps.
Structure:
Inner rubber layer: black RMA-A super oil-resistant and gas-tight NBR synthetic rubber;
Outer rubber layer: Oil-resistant, wear-resistant and super anti-aging CSM synthetic rubber.
Reinforced layer: high-strength fiber reinforced layer.

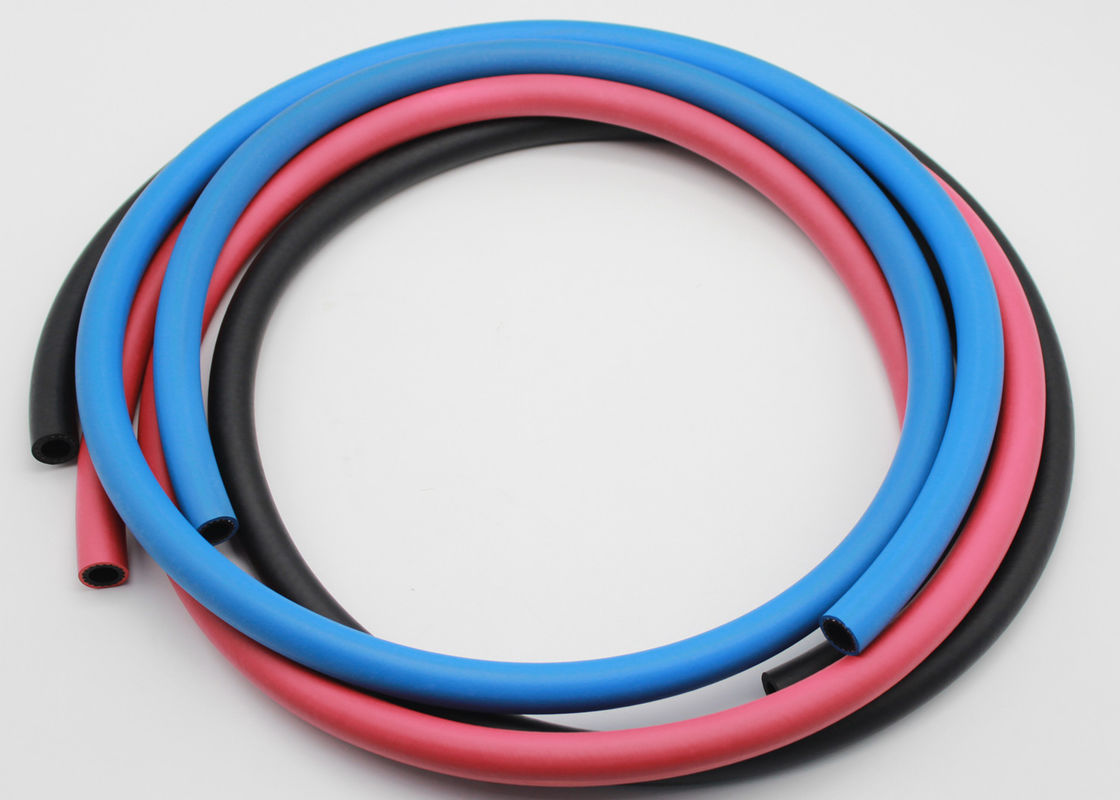

Appearance: Glossy, commonly in black, red or blue, or customized colors.
Working pressure: W.P 300 PSI
Safety factor: 4 times
Temperature: -30 to 120℃ (Free clip fastening temperature -30 to 80 ℃; With clamps temperature -30 to 120℃)
Packing: Standard export packing with double protection. Available for specific length cutting and pallet package according to customer needs.
Technical standard: ISO 19013 AS 1869
Product number | specifications | I.D (mm) | O.D (mm) | W.P (PSI) | B.P (PSI) | Bend Radius (mm) | Weight (kg/m) | Length (m/pc) |
push on hose -06 | 1/4" | 6.4 | 13.0 | 300 | 1200 | 50 | 0.15 | 100 |
push on hose -08 | 5/16" | 7.9 | 15.0 | 300 | 1200 | 60 | 0.18 | 100 |
push on hose -10 | 3/8" | 9.5 | 17.0 | 300 | 1200 | 70 | 0.23 | 100 |
push on hose -13 | 1/2" | 12.7 | 21.0 | 300 | 1200 | 120 | 0.31 | 100 |
push on hose -16 | 5/8" | 15.9 | 24.0 | 300 | 1200 | 150 | 0.38 | 60 |
push on hose -19 | 3/4" | 19.0 | 28.0 | 300 | 1200 | 170 | 0.50 | 60 |
push on hose -25 | 1" | 25.4 | 36.0 | 300 | 1200 | 200 | 0.74 | 60 |
