Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant

Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant

  • High Light

    Braided PTFE Hose


    PTFE Braided Hose

  • Inner Tube
    Seamless PTFE (Smooth Bore)
  • Cover
    Stainless Steel Braided
  • Available Sizes
    1/8'' To 2''
  • Thickness
    0.85mm To 1.2mm
  • Property
    High Pressure / Temperature Resistance
  • Coil Length
    80m To 200m Per Roll
  • Main Market
  • Standard
    SAE100 R14
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001: 2015
  • Model Number
  • Minimum Order Quantity
    100 meters
  • Price
  • Packaging Details
    woven strips wrapped / pallets
  • Delivery Time
    15 days
  • Payment Terms
    T/T, L/C, Western Union, MoneyGram
  • Supply Ability
    400,000 meters per month

Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant


Construction: Tube: Domestic PTFE / The imported F-205 of Japan Daikin

                         Cover: SS304 / SS316 Braided


Temperature: -50℃ to +200℃ (Domestic Material)

                         -50℃ to +260℃ (Imported Material)


Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc


Coil length: 80~200m (Random Length).


Standard: SAE100 R14


Connector: Customize as per request



Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Weight
inch mm mm bar bar m kg/m
1/8" 3.2 6.5 314 1080 100 0.07
3/16" 4.8 7.7 256 725 100 0.09
1/4" 6.4 9.3 232 680 100 0.11
5/16" 7.9 10.8 194 620 100 0.15
3/8" 9.5 12.7 162 540 100 0.17
1/2" 12.7 16.3 90 360 100 0.31
5/8" 15.9 19.3 80 250 50 0.47
3/4" 19 22.3 70 223 50 0.57
7/8" 22.2 26.2 60 210 50 0.7
1" 25.4 29.8 40 195 50 0.8



Excellent resistance to aging

Excellent ease of installation

The non-stick properties of PTFE prevents any debris from clogging the tube


Item Photo

Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant 0

Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant 1



smooth PTFE (virginal)

Excellent high temperature & corrosion resistance

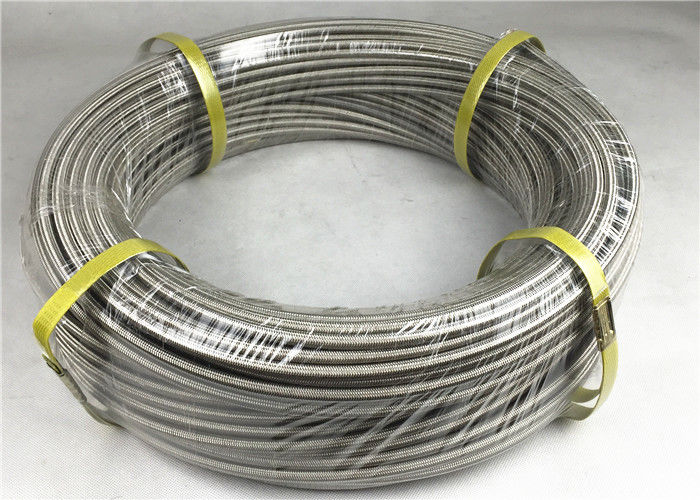

Packing & Shipment

Normal Packing: opp film and woven strips wrapped

Customized Packing: Non-fumigation pallrt or Wooden reels


Hose I.D

Length roll

3/16'' ~ 1/2''


5/8'' ~ 2''




Steel AISI 304 Over Braid Smooth PTFE Hose for Oil / Coolant 2


Competitive Advantage


1, 15 years manufacturing experience


2, Hot sale in America, Canada, Germany, Mexico. Bulk hose


3, Free Sample is available / Hose assembly is available


4, Convoluted PTFE Hose is available



Hangzhou Paishun Rubber and Plastic Co., Ltd established in 2007, is a rapid growing enterprise who integrate the production and marketing of rubber industrial hoses, rubber hydraulic hoses, and hydraulic hose fittings.

After 8 years effort and development, now we have become one of the leading rubber hose manufacturers and suppliers in China. We have been enjoying high reputation in rubber industrial hose and hydraulic hose market domestically and internationally.

Hangzhou Paishun Products Range:

Our factory focus on manufacturing Rubber industrial hoses, which include Rubber air hose , Rubber water hose , LPG gas hose , twin welding hose , rubber fuel hose.

Our stock-shared factory focus on manufacturing Rubber hydraulic hose , which includes SAE 100R1 , SAE 100R2 , SAE 100R7/ R8 , EN856 4SH , 4SP , SAE 100 R9 , R10 , R12 , SAE 100R14 Braided PTFE hose , Hydraulic hose fitting and ferrule ; Air conditioning hose ; Refrigerant charging hose .

We are very professional and have full experience in crimping fittings and quick release couplings on hoses. Such as rubber air hose assembly, contractor garden hose assembly, washing machine hose assembly, LPG hose assembly, hydraulic hose assembly, high pressure washer hose assembly, paint spray hose assembly, etc.

We are capable of supplying our products in various kinds of packaging according to customers' specific requirements.

Now our rubber hoses and hose assemblies are exported to USA, Canada, Italy, UK, Norway, Russia, Spain, Portugal, Denmark, Australia, Japan, Thailand, Sri Lanka, Peru, Brazil, Venezuela, South Africa etc, about 50 countries all over the world.

PASSION® Rubber hoses are approved by CE, SGS, TUV.

But Hangzhou Paishun have never stop going forward, in order to supply more rubber hoses to our customersand enlarge the production range, in 2012, together with our partner, we build another factory, which produce silicone auto rubber hoses in Jiangsu China.
