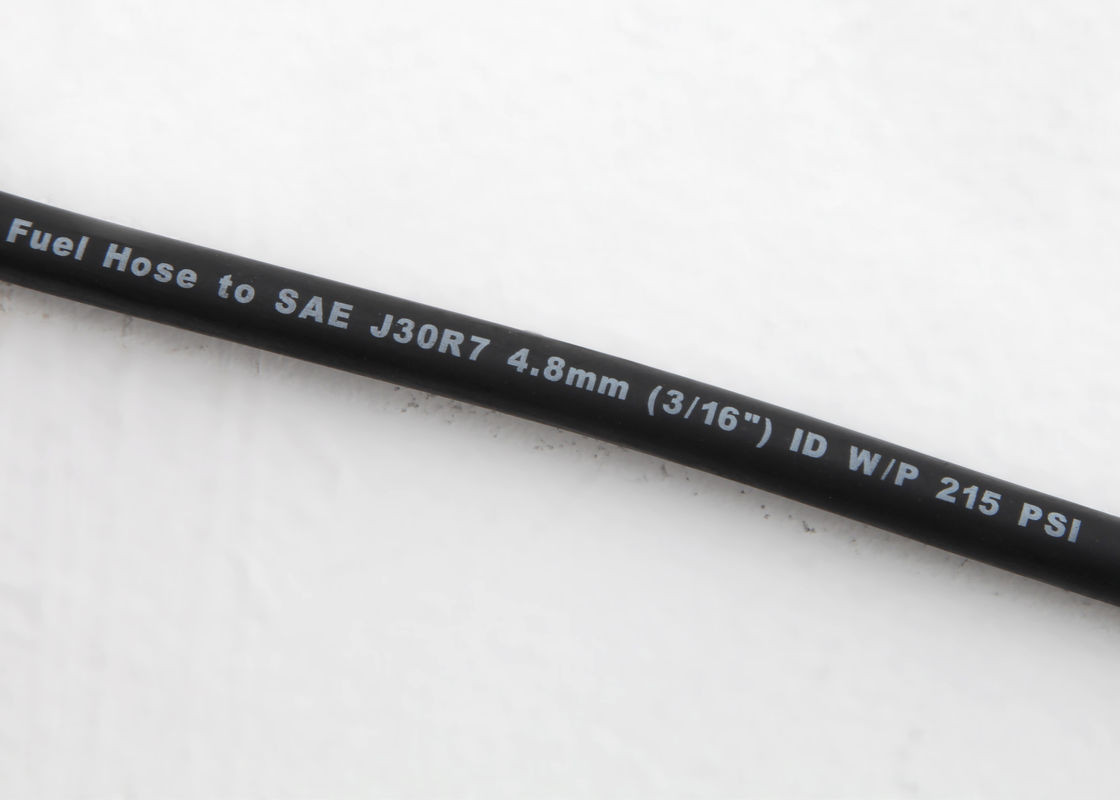

ID 3/16 Inch Smooth Fiber Braided Flexible Fuel Hose For Diesel , Oil Fuel , 20 Bar
Specifications:
|
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
3/16" |
5 |
11.5 |
20 |
300 |
60 |
900 |
100 |
0.028 |
0.15 |
|
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.031 |
0.17 |
|
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.0353 |
0.216 |
|
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.0442 |
0.24 |
|
1/2" |
12.7 |
22 |
20 |
300 |
60 |
900 |
100 |
0.0756 |
0.428 |
|
5/8" |
16 |
25 |
20 |
300 |
60 |
900 |
50 |
0.0329 |
0.40 |
|
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.0572 |
0.60 |
|
1" |
25 |
36 |
20 |
300 |
60 |
900 |
50 |
0.099 |
0.84 |
|
1-1/4" |
32 |
43 |
10 |
150 |
30 |
450 |
50 |
0.170 |
1.20 |
|
1-1/2" |
38 |
50 |
10 |
150 |
30 |
450 |
50 |
0.190 |
1.39 |
|
2" |
51 |
65 |
10 |
150 |
30 |
450 |
50 |
0.410 |
1.80 |
Description:

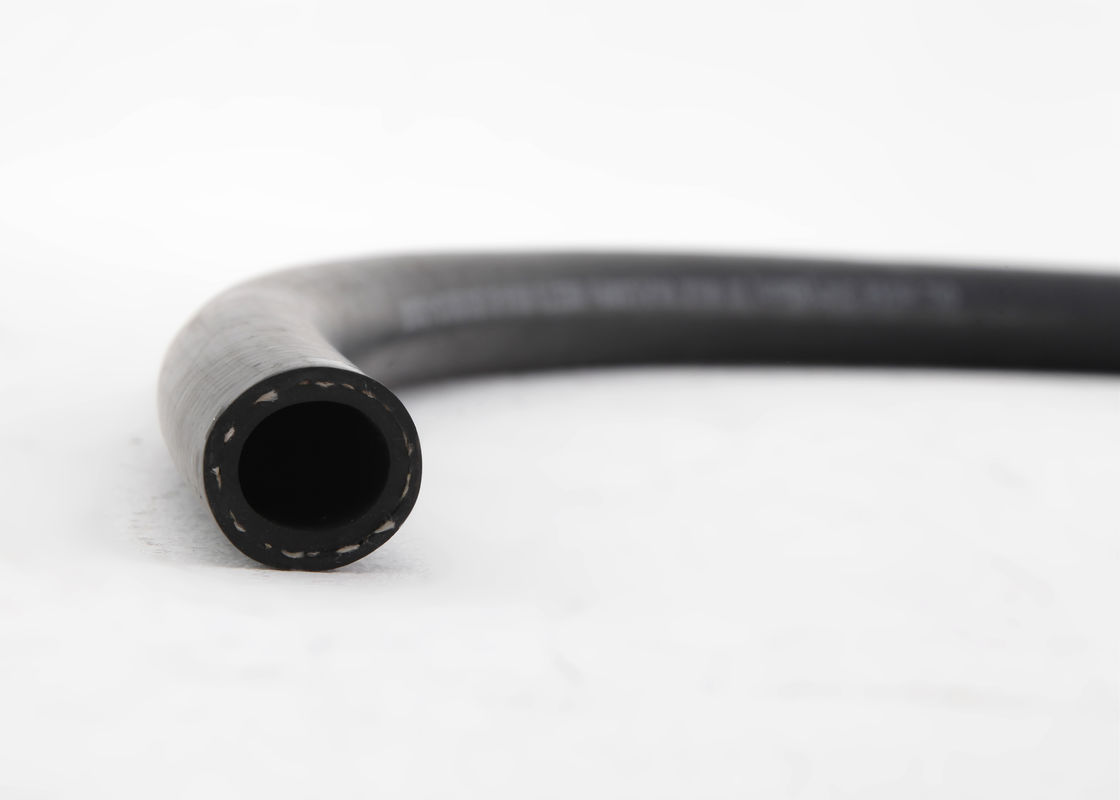

1, Construction: Tube: NBR Synthetic Rubber

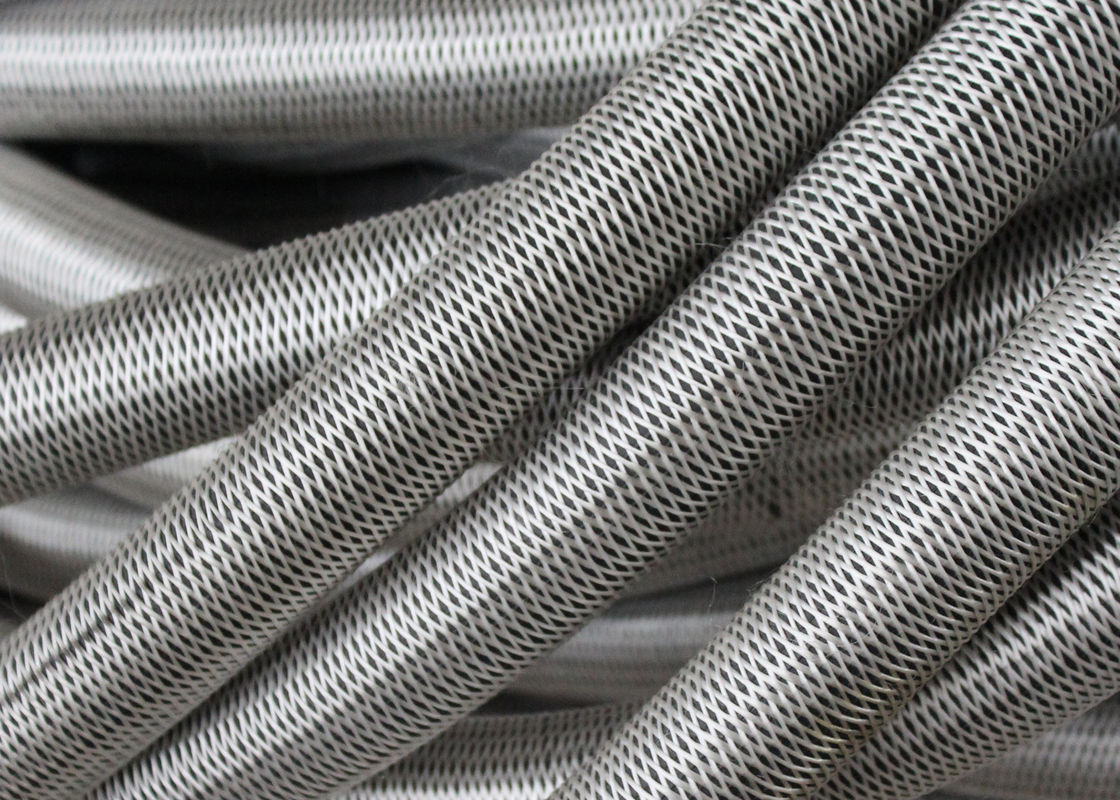

Reinforcement: High tensile polyester fiber braided.
Cover: NBR Synthetic Rubber
2, Appearance: Smooth finish, Black, Red, Blue etc
3, Applicable temperature: -30℃ to +100℃
4, Bend radius: 10 times of proper diameter dimension

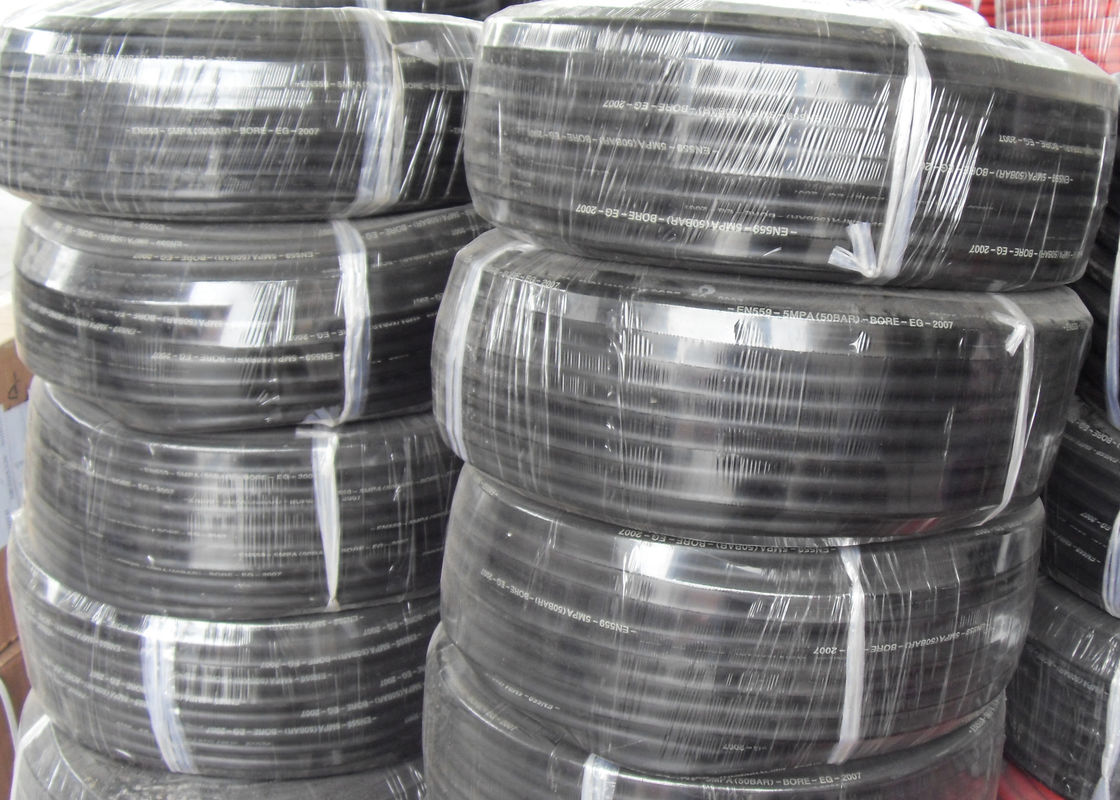

5, Package: Common packed by OPP transparent film.
The pallet and woven bag packing are available, the color sticker can be offerd,
but shall be charged additionally.
6, Trademark: PASSION, OEM is available
7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture after 180°bending over or doubling
8, Certificates: CE, SGS
9, Main market: Middle East, Europe and America
10: Joint Connection: Customized as your request
Applications:
It is applied to circulating diesel, biodiesel, hydraulic oil, machinery oils and lubricating oil, or the oil products with the contents of aromatic substances not more than 30%; both the inner layer and protective layer of rubber hose of this grade are oil corrosion resistant and insulated.
Competitive Advantage:
Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the
east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.
Paishun has a strict quality inspection team, every shipment would be tested before shipment.
Free sample can be offered, we are happy to customize as your request.
