SAE 100R9 ID 3 / 8" ~ 2" 4 Wire Hydraulic Hose 50M Or 40M Per Roll

SAE 100R9 ID 3 / 8" ~ 2" 4 Wire Hydraulic Hose 50M Or 40M Per Roll

Custom Hydraulic Hose

Weatherhead Hydraulic Hose

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

3/8" ~ 2"

Contact Us

Request A Quote
Product Details
Tube:
Synthetic Rubber NBR (oil Resistant)
Reinforcement:
4 Ply High-tensile Steel Wire Spiral
Cover:
Cloth, Non-smooth
Inner Diameter Sizes:
ID 3/8" ~ 2"
Appliable Temperature:
-40℃ ~ 100℃
Color:
Black
Length:
50m, 40m, 20m
Standard:
SAE 100R9
Cetification:
CE, ISO9001
Payment & Shipping Terms
Minimum Order Quantity
300m
Price
Negotiated
Packaging Details
Well packed by poly stripes or as customers' request.
Delivery Time
Generally speaking, 30 working days after received your payment
Payment Terms
L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability
300,000m per month
Product Description

SAE 100R9 , ID 3/8" ~ 2" , 4 Wire Hydraulic Hose , 50m Or 40m Per Roll







About the product:



Specification:



Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

A

AT

bar

psi

bar

psi

m

cbm/roll

kg/m

3/8"

9.7

21.4

21.1

315

4570

1260

18270

50

0.039

0.85

1/2"

12.8

24.6

24.3

280

4060

1120

16240

50

0.044

1

3/4"

19.2

31.4

31.5

210

3045

840

12180

50

0.059

1.9

1"

25.8

39.7

40.5

210

3045

840

12180

50

0.1

2.3

11/4"

32.2

50.2

50.7

175

2540

700

10150

40

0.12

2.9

11/2"

38.5

57.2

58.7

140

2030

560

8120

40

0.169

3.4

2"

51.2

71.5

73

140

2030

560

8120

40

0.27

5

































Application



Hose range suitable for use with petroleum base hydraulic fluids within a temperature range of -40℃- + 100℃.



High pressure applications subject go surges or flexing such as construction equipment, mining and the high performance industrial market.

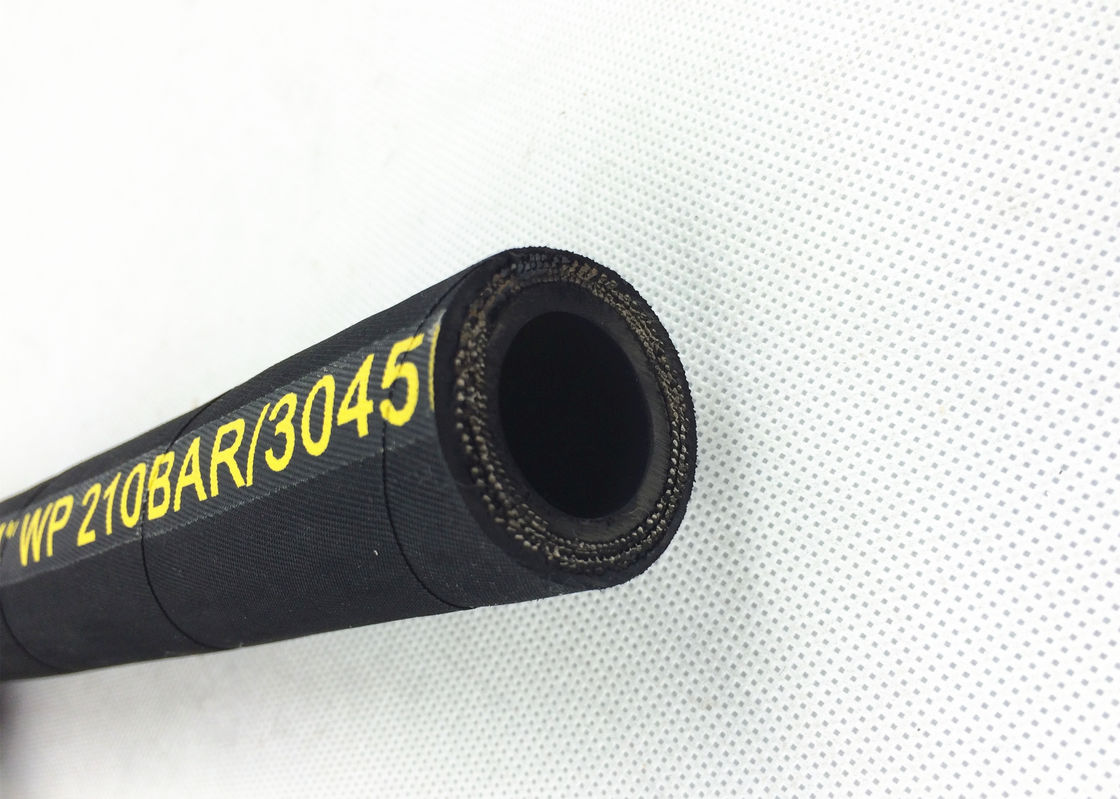

structure



This hose SAE 100R9 is made of three layers:

Inner tube: oil resistant synthetic rubber (NBR),

Reinforced layer: four layers of spiral steel wire wrapped in alternating directions,

Cover: an oil and weather resisitant synthetic rubber (NBR).





Detail Information



Inner and outer tube material: NBR

Color: Black

Standard Length: 50m,40m, 20m

Temperature  Range: -40℃- + 100℃.



Packaging and Shipping



Packaging: We pack the goods with poly stripes or we can pack according to your                                 requirement.

Shipping: We ship the goods by express, by sea or by air or as customers' requirement.

               If by sea, Ningbo or Shanghai port is OK.

Lead Time: According to your quantity, usually, 30 days for a 20' FCL.





FAQ:



Q1. Do you produce smooth or cloth wrapped surface?
A. We can produce both surfaces, it depends on customers' requirement. The regular surface is cloth wrapped surface.



Q2. How many kinds of payments do you have and what is your main one?
A. We have more than three kinds of payment, the main one is 30% deposite and 70% against the copy of B/L.


Q3. Can you provide free samples?
A. Yes, free samples are available for customers to test.





Our service:



1. We can provide matching hose connections like fittings, ferrules, protective sleeve etc.



2. Other hydraulic rubber hoses are also served here like SAE 100R1, SAE 100R2 etc.



3. Other sizes can be customized.



4. We can design the printing for you, print words on the hose according to your requirement.



5. We can package the goods according to your specific requirement.



6. For the sizes from 1" to 2", we can produce 40 meters per roll.



7. We have a set of equipments to test the hydraulic hoses like pulse test. The quality of our hydraulic hoses are stable.

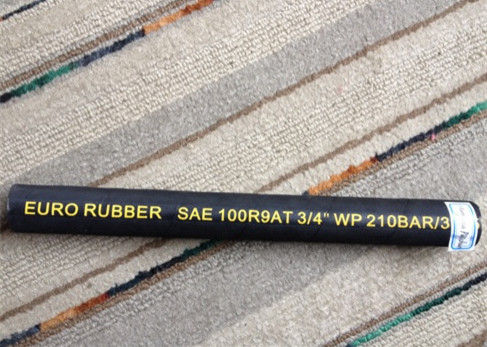

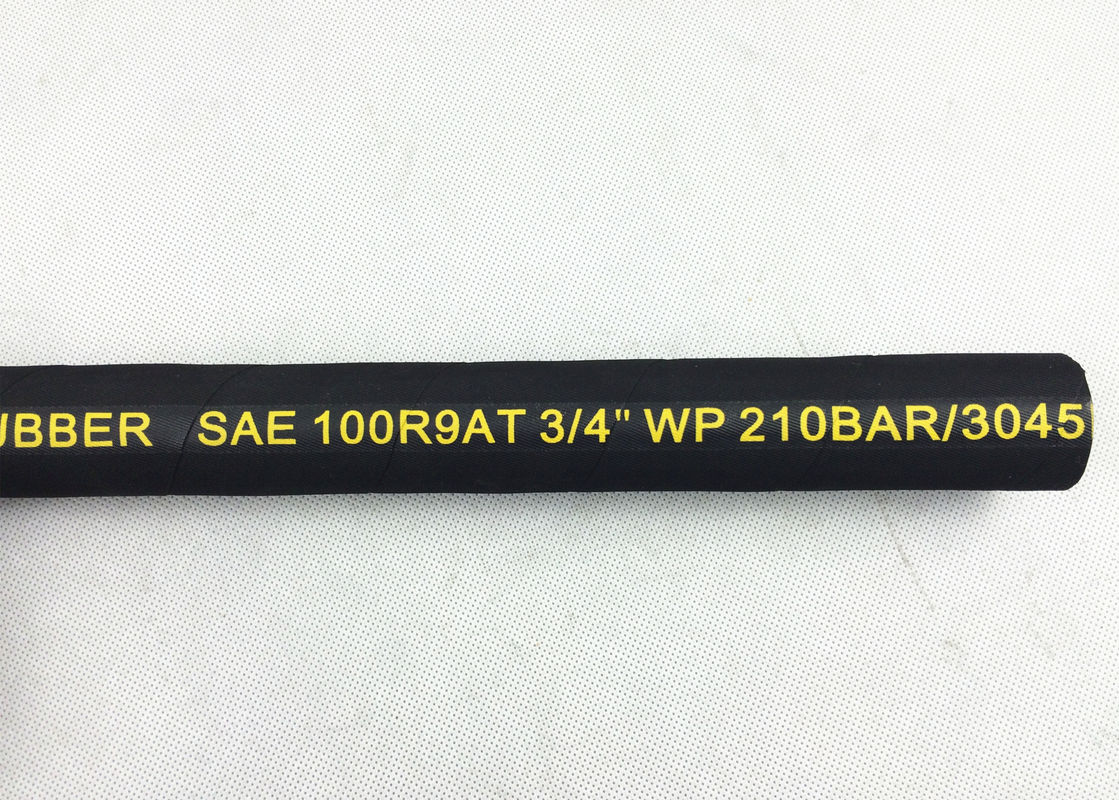

                                        SAE 100R9 ID 3 / 8" ~ 2"  4 Wire Hydraulic Hose 50M Or 40M Per Roll 0
