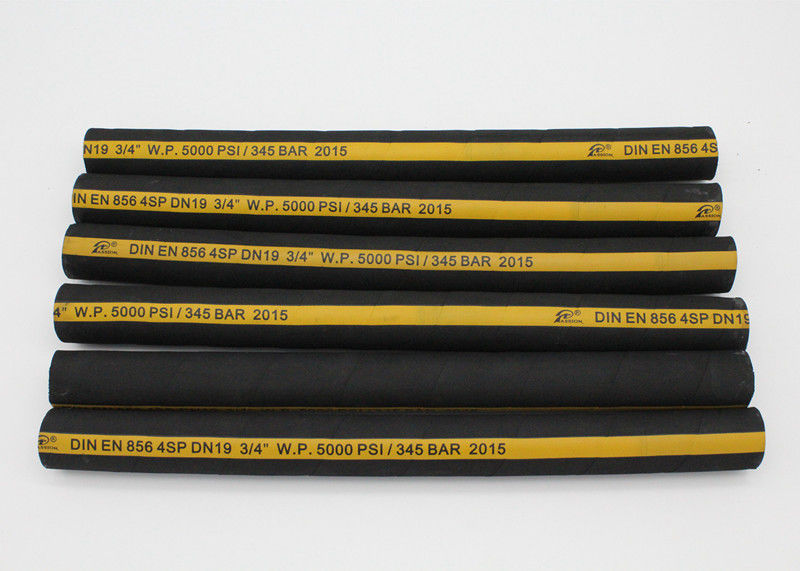

ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover

ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover

    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
    • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover
  • ID 1 / 4" ~ 2" 4SP 4 Wire Hydraulic Hose Black Cloth Wrapped Cover

    Product Details:

    Place of Origin: Zhejiang China
    Brand Name: PASSION
    Certification: ISO 9001-2008, CE
    Model Number: 1/4" ~ 2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 300m
    Price: Negotiated
    Packaging Details: Well packed by poly stripes or as customers' request.
    Delivery Time: Generally speaking, 30 working days after received your payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability: 300,000m per month
    Contact Now
    Detailed Product Description
    Inner Tube: Synthetic NBR Rubber Reinforcement: Four Spiral Plies Of Steel Wire Wrapped In Alternating Directions
    Outer Tube: Synthetic NBR Rubber Specification: ID 1/4" ~ 2"
    Temperature: -40℃ ~ 100℃ Colors: Black Etc
    Standard Length: 20m Or 40m Application: Pulsating Applications Used For Petroleum Based Hydraulic Fluids
    Cover: Cloth Wrapped

    ID 1/4" ~ 2" , EN 856 4SP , 4 Wire Hydraulic Hose , Black Cloth Wrapped Cover





    Specifications Sheet:



    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Measurement

    Weight

    inch

    mm

    mm

    bar

    psi

    bar

    psi

    m

    cbm/roll

    kg/m

    1/4''

    6.4

    17.9

    452

    6500

    1806

    26200

    50





    3/8''

    9.5

    21.4

    445

    6450

    1779

    25800

    50

    0.039

    0.85

    1/2''

    12.7

    24.6

    414

    6000

    1655

    24000

    50

    0.044

    1

    5/8''

    15.9

    28.2

    345

    5000

    1379

    20000

    50

    0.049

    1.3

    3/4"

    19

    32.2

    345

    5000

    1379

    20000

    50

    0.059

    1.9

    1"

    25.4

    39.3

    276

    4000

    1103

    16000

    40

    0.1

    2.3

    11/4"

    32

    50..8

    210

    3045

    840

    12180

    40

    0.12

    2.9

    11/2"

    38.5

    57.2

    185

    2680

    740

    10730

    40

    0.169

    3.4

    2"

    51.2

    69.8

    165

    2390

    660

    9570

    40

    0.27

    5







    Description:



    This hose shall consist of an inner tube of oil resistant synthetic rubber, four layers of spiral plies of steel wire wrapped in alternating directions, and an oil and weather resisitant synthetic rubber cover.



    Hose Material: Tube: NBR ( neoprene)

                                Reinforcement: four alternating layers of spiral high-tensile steel wire

                                Cover: NBR (neoprene)



    Temperature: -40℃ - +100℃



    Color: Black, Grey, Blue.



    In many hydraulics systems, inflexible or rigid pipes or tubes are used to transfer energy-generating liquid between different components to form a complete hydraulic circuit. Pipes and tubes can be rigid in order to bridge small amounts of space in a controlled manner. For instance, in a hydraulic circuit contained within a small casing, there is no extra room for piping, so the connections must be rigid and contained within the casing.

    Some hydraulic circuits have much more liberal space accommodations or even require connection flexibility to facilitate faster replacement or range of motion operations. For example, many construction machines have external, flexible hydraulic hose connections so the tools are free to move.



    A number of standards exist for hydraulic hose production and use. Standards govern industry connection specifications and hose material, as well as guide installation operations.



    Application:



    Very high pressure applications subject go surges or flexing such as construction equipment, mining and the high performance industrial market. Hose range suitable for use with petroleum base hydraulic fluids within a temperature rang of -40℃- + 100℃.





    FAQ:



    Q1. Do you produce smooth or cloth wrapped cover?
    A. We can produce both cover, according to your request.


    Q2. Can you provide free samples?
    A. Yes, free samples are available.


    Q3. How many kinds of payments do you have and what is your main one?
    A. We have more than three kinds of payment, the main one is 30% deposite and 70% against the copy of B/L.


    Q4. How long does my order take to be delivered?
    A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)







    Competitive Advantage:



    1. We can provide matching hose connections.



    2. We can offer free hose sample.



    3. Other hydraulic rubber hoses are also served here like SAE 100R1, SAE 100R2 etc.



    4. Other sizes can be customized.



    5. We can print words on the hose according to your requirement. We can design the printing for you.



    6. We can package the goods according to your requirement.



    7. For the sizes from 1" to 2", we can produce 40 meters per roll.



    8. We have a set of equipments to test the hydraulic hoses like pulse test. The quality of our hydraulic hoses are stable.
