    Product Details:

    Place of Origin: Zhejiang China
    Brand Name: PASSION
    Certification: ISO 9001-2008, CE
    Model Number: 3/4" ~ 2"

    Payment & Shipping Terms:

    Minimum Order Quantity: 300m
    Price: Negotiated
    Packaging Details: Well packed by poly stripes or as customers' request.
    Delivery Time: Generally speaking, 30 working days after received your payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability: 300,000m per month
    Contact Now
    Detailed Product Description
    Inside Tube: NBR (oil Resistant) Reinforced Layer: Multiple Layers Of Spiral Heavy Steel Wire Wrapped
    Outside Tube: NBR (oil And Wear Resistant) Inner Diameter Sizes: ID 3/4" ~ 2"
    Appliable Temperature: -40℃ ~ 120℃ Cover: Black And Cloth Wrapped
    Length: 50m, 40m, 20m Standard: SAE 100R13
    Pressure: Very High Working And Burst Pressure

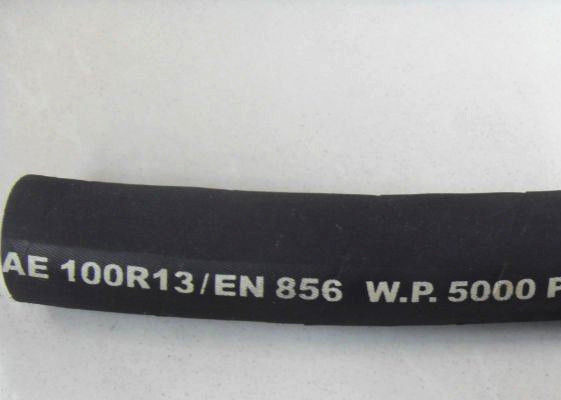

    SAE 100R13 , ID 3/4" ~ 2" , 4 Wire Hydraulic Hose , Very High Pressure





    Hydraulic hose SAE 100R13
    1 Professional factory
    2 High pressure
    3 Four or six steel wire spiraled
    4 CE approved





    About the product:

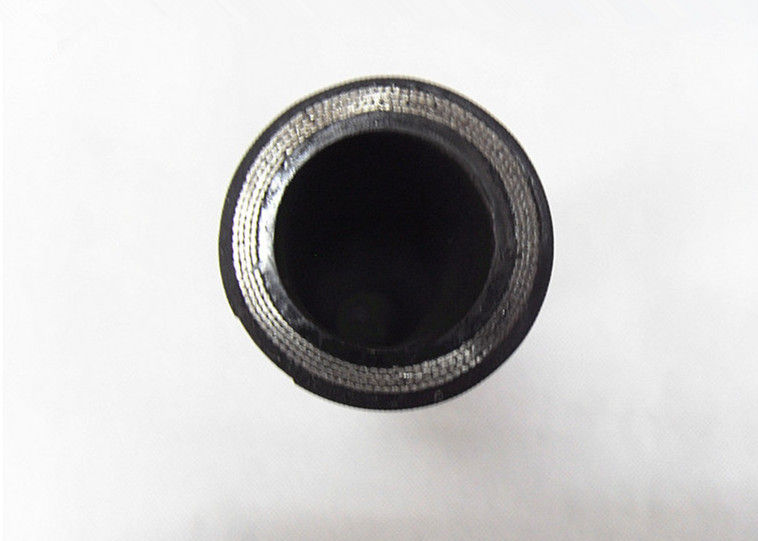

    structure



    This hose SAE 100R13 is made of three layers, they are inner tube of oil resistant synthetic rubber (NBR), reinforced by multiple layers of spiral heavy steel wire wrapped in alternating directions, and an oil and weather resisitant synthetic rubber cover (NBR).



    Application



       Very high pressure applications subject go surges or flexing such as construction equipment, mining and the high performance industrial market. Hose range suitable for use with petroleum base hydraulic fluids within a temperature range of -40℃- + 121℃.



    Detail Information



    Inner and outer tube material: NBR

    Color: Black

    Standard Length: 100m, 50m,20m.

    Temperature  Range: -40℃- + 121℃.



    Packaging and Shipping



    Packaging: We pack the goods with poly stripes or we can pack according to your                                 requirement.

    Shipping: We ship the goods by express, by sea or by air or as customers' requirement.

    Lead Time: According to your quantity, usually, 30 days for a 20' FCL.





    General Technical Data:



    part

    In

    Hose Size ID DIN Dash Size

    Hose OD

    Max.Working pressure

    Min.Bend Radius

    Min..Burst pressure

    Weight

    (ibs/foot)

    in

    mm

    psi

    mpa

    in

    mm

    psi

    mpa

    GR13-12

    3/4

    19  Din Dash Size

    1.264

    32.1

    5000

    34.5

    9.5

    241

    20000

    137.9

    1.0372

    GR13-16

    1

    25.4  Din Dash Size

    1.524

    38.7

    5000

    34.5

    12

    305

    20000

    137.9

    1.3387

    GR13-20

    11/4

    31.8  Din Dash Size

    1.961

    49.8

    5000

    34.5

    16.5

    419

    20000

    137.9

    2.4026

    GR13-24

    11/2

    38.1 Din Dash Size

    2.256

    57.3

    5000

    34.5

    20

    508

    20000

    137.9

    3.3493

    GR13-32

    2

    50.8 Din Dash Size

    2.799

    71.1

    5000

    34.5

    25

    635

    20000

    137.9

    4.3818



































    Our service:



    1. We can provide matching hose connections.



    2. We can offer free hose sample.



    3. Other hydraulic rubber hoses are also served here like SAE 100R1, SAE 100R2 etc.



    4. Other sizes can be customized.



    5. We can print words on the hose according to your requirement. We can design the printing for you.



    6. We can package the goods according to your requirement.



    7. For the sizes from 1" to 2", we can produce 40 meters per roll.



    8. We have a set of equipments to test the hydraulic hoses like pulse test. The quality of our hydraulic hoses are stable.





    FAQ:



    Q1. Do you produce smooth or cloth wrapped cover?
    A. We can produce both cover, according to your request.


    Q2. Can you provide free samples?
    A. Yes, free samples are available.


    Q3. How many kinds of payments do you have and what is your main one?
    A. We have more than three kinds of payment, the main one is 30% deposite and 70% against the copy of B/L.


    Q4. How long does my order take to be delivered?
    A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
