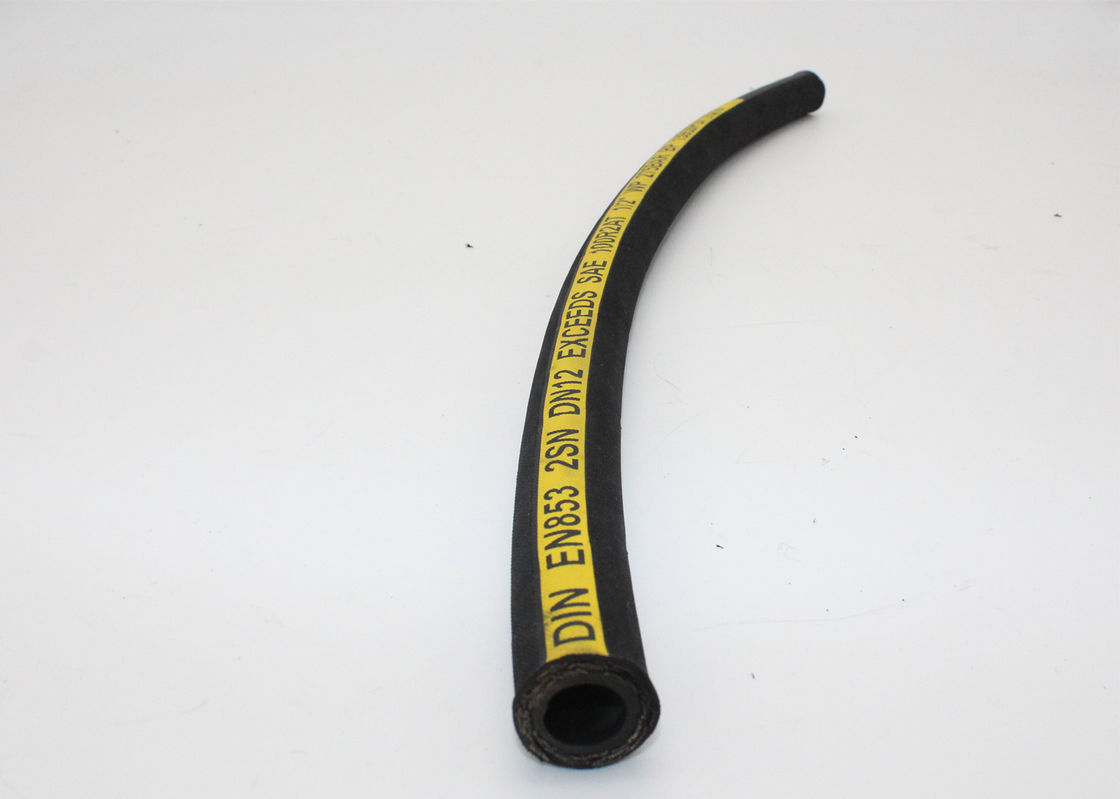

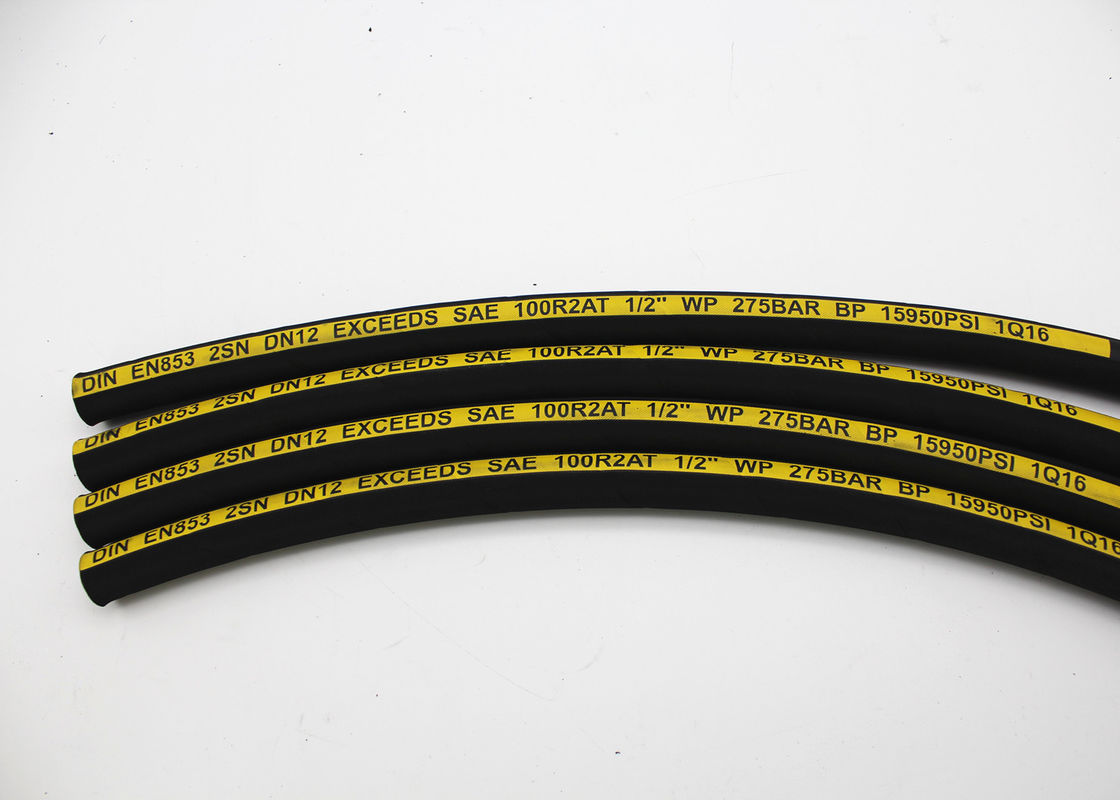

1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread

1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread

Products - High Pressure Hydraulic Hose
  • High Light

    Hydraulic Rubber Hose

    ,

    High Pressure Hydraulic Pipe

  • Product Name
    High Pressure Hydraulic Hose
  • Size
    1/2:"
  • Color
    Black, Blue, Grey, Etc.
  • Standard
    SAE J517
  • Surface
    Cloth Wrapped
  • Temperature
    -40°C~ +100°C
  • Length
    According To Customer's Request
  • Inner Tube
    NBR
  • Cover
    Neoprene
  • Reinforcement
    Two Single High-tensile Steel Wire Braided
  • Ferrule
    03310
  • Fitting
    NPT Male 15611
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    SAE J517 100 R2 AT
  • Minimum Order Quantity
    500m
  • Price
    Negotiated
  • Packaging Details
    Packed in weaving strip, it also can be packed as per your requirement,
  • Delivery Time
    Within 30 days after we receive advance payment
  • Payment Terms
    T/T, L/C, Western Union, Paypal, MoneyGram
  • Supply Ability
    30,000m per month

1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread

  • 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread
  • 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread
  • 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread
  • 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread
  • 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread
Get Price Contact Now





1/2 in. SAE 100R2AT Hydraulic Hose Assembly 1/2 in. NPT Male Pipe Thread at each end With 3,500 PSI Maximum Working





Description:



Standard: SAE J517



Construction

 Tube: NBR synthetic rubber.
Reinforcement: Two high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.



Temperature: -40℃ - +100℃



Color: Black, Grey, Blue, etc.



Standard length: 100m/roll



Ferrule: 03310 for SAE 100 R2 AT

Fitting: 15611 of NPT Male at both end



Specification of R2.pdf



Specifications:



                                                 1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread 0

                               Double Wire Braided Reinforced Hydraulic Rubber Hose



Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
inch mm mm bar psi bar psi m cbm/roll kg/m
R2-05 3/16 4.8 12.3 414 6000 1655 24000 100   0.32
R2-06 1/4 6.4 15.5 400 5800 1600 23200 100 0.0514 0.37
R2-08 5/16 8.0 16.5 350 5075 1400 20300 100 0.0612 0.412
R2-10 3/8 9.5 19.2 330 4785 1320 19140 100 0.0784 0.53
R2-13 1/2 12.7 21.8 275 3988 1100 15950 100 0.0833 0.64
R2-16 5/8 16.0 25.5 250 3630 1001 14520 50 0.074 0.77
R2-19 3/4 19.0 29.5 215 3120 860 12480 50 0.0833 0.96
R2-25 1 25.4 38.1 165 2400 662 9600 50 0.1445 1.35
R2-32 1 1/4 32.0 48.0 125 1820 502 7280 20 0.209 2.05
R2-38 1 1/2 38.0 55.0 90 1310 361 5240 20 0.2509 2.511
R2-51 2 50.8 68.6 80 1160 320 4640 20 0.3796

3.165






Application:

This high pressure hydraulic hose SAE J517 100 R2 AT 1/2" can be used for snowplows.



1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread 1



We have several ways of hydraulic hose packaging for our customers.


1. Colorful poly stripes (normal packing)

1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread 2




  1. Reel

1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread 3



3. Customized carton hose assembly



1/2 in SAE 100R2AT High Pressure Hydraulic Hose Assembly NPT Male Pipe Thread 4



We can do the following tests:



1. Material test.

2. Working pressure test
All the hoses need to do this test before shipment.

3. Burst pressure test

4. Impulse test

1 wire and 2 wire braided hose pass the impulse testing of 200,000 times; 4 wire spiral hose pass the impulse testing of 400,000 times.
