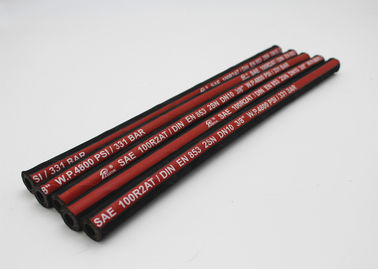

SAE J517 100R2 AT High Pressure Hydraulic Hose 3/8 , 1/2" for Tractor Trolley
Description:
Standard: SAE J517
Construction
Tube: NBR synthetic rubber.
Reinforcement: Two high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 100m/roll
Fitting: 00210 or 03310 ferrule and 1 serious crimping fitting.
Specifications:
Double Wire Braided Reinforced Hydraulic Rubber Hose
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
| R2-05 | 3/16 | 4.8 | 12.3 | 414 | 6000 | 1655 | 24000 | 100 | 0.32 | |
| R2-06 | 1/4 | 6.4 | 15.5 | 400 | 5800 | 1600 | 23200 | 100 | 0.0514 | 0.37 |
| R2-08 | 5/16 | 8.0 | 16.5 | 350 | 5075 | 1400 | 20300 | 100 | 0.0612 | 0.412 |
| R2-10 | 3/8 | 9.5 | 19.2 | 330 | 4785 | 1320 | 19140 | 100 | 0.0784 | 0.53 |
| R2-13 | 1/2 | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 100 | 0.0833 | 0.64 |
| R2-16 | 5/8 | 16.0 | 25.5 | 250 | 3630 | 1001 | 14520 | 50 | 0.074 | 0.77 |
| R2-19 | 3/4 | 19.0 | 29.5 | 215 | 3120 | 860 | 12480 | 50 | 0.0833 | 0.96 |
| R2-25 | 1 | 25.4 | 38.1 | 165 | 2400 | 662 | 9600 | 50 | 0.1445 | 1.35 |
| R2-32 | 1 1/4 | 32.0 | 48.0 | 125 | 1820 | 502 | 7280 | 20 | 0.209 | 2.05 |
| R2-38 | 1 1/2 | 38.0 | 55.0 | 90 | 1310 | 361 | 5240 | 20 | 0.2509 | 2.511 |
| R2-51 | 2 | 50.8 | 68.6 | 80 | 1160 | 320 | 4640 | 20 | 0.3796 |
3.165 |
Application:

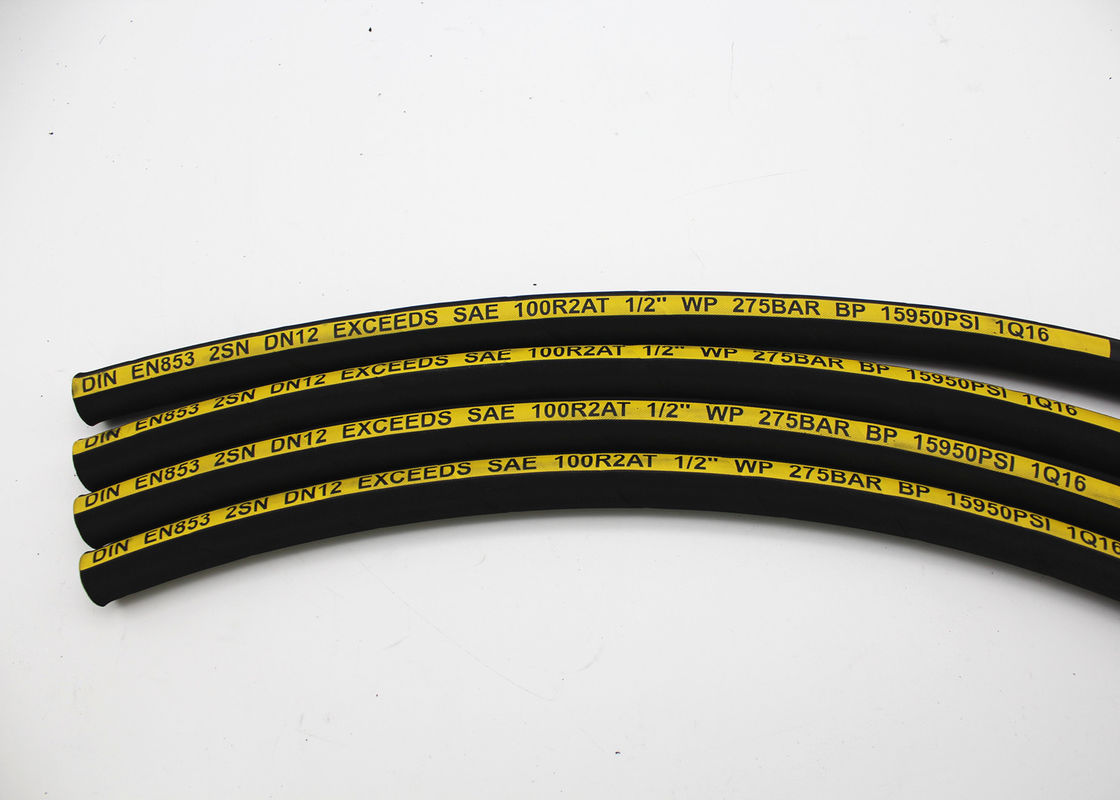

This high pressure hydraulic hose SAE J517 100 R2 AT 3/8" and 1/2" can be used for tractor trolly
Competitive Advantage:
It is made according to SAE J517 / DIN EN 853 standard.
We have several ways of hydraulic hose packaging for our customers:
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
The hydraulic hoses R1 and R2 can be made in smooth surface.
We also supply hose protector for our customers.
