Smooth Nylon / Polyurethane High Pressure Test Hose with M14*1.5 Connectors

Product Details

Place of Origin: Zhejiang China

Brand Name: PASSION

Certification: ISO 9001-2008, CE

Model Number: Hydraulic Testing Hose

Payment & Shipping Terms

Minimum Order Quantity: 300pcs

Price: Negotiable

Packaging Details: Well packed in high quality MC (for export)

Delivery Time: Within 20 days after we have received the advanced payment.

Payment Terms: Western Union, MoneyGram, L/C, T/T

Get Best Price
Highlight:

High Pressure Hose Assemblies

,

Hydraulic Pressure Hose

Inner Tube:
Nylon
Reinforcement:
Braided Fibers Or Wires
Outer Tube:
Polyurethane
Main Market:
North America And South America
Temperature:
-40C-120C
Feature:
Oil ,PH And Pressure Resistance
Application:
To Be Used As Air, Mineral Oil , Water-glycol ,alcohol Transport.
Burst Pressure:
As High As 3000bar
Fitting Type:
*Cone Seal Fitting Metric 60 Degree Female, Thread M12 X 1.5. *Cone Seal Fitting Metric 60 Degree Female, Thread M14 X 1.5 On One Side And M12x1.5 On The Other Side.
Inner Tube:
Nylon
Reinforcement:
Braided Fibers Or Wires
Outer Tube:
Polyurethane
Main Market:
North America And South America
Temperature:
-40C-120C
Feature:
Oil ,PH And Pressure Resistance
Application:
To Be Used As Air, Mineral Oil , Water-glycol ,alcohol Transport.
Burst Pressure:
As High As 3000bar
Fitting Type:
*Cone Seal Fitting Metric 60 Degree Female, Thread M12 X 1.5. *Cone Seal Fitting Metric 60 Degree Female, Thread M14 X 1.5 On One Side And M12x1.5 On The Other Side.

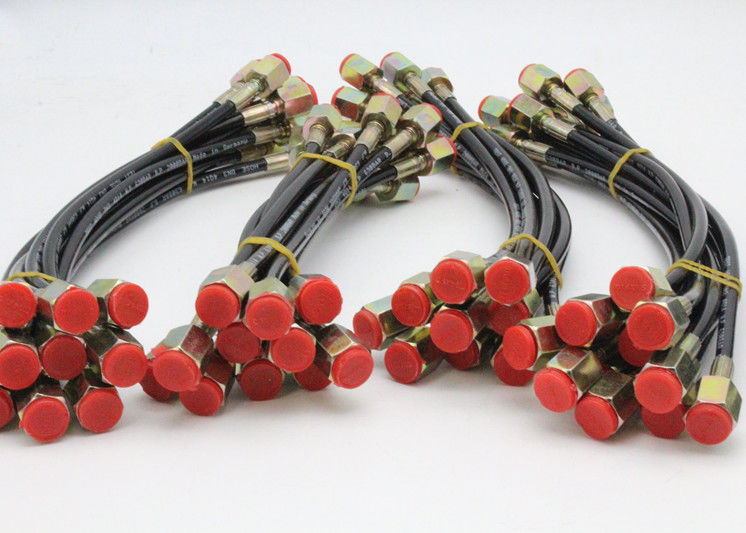

Smooth Nylon / Polyurethane High Pressure Test Hose with M14*1.5 Connectors

M14*1.5 Connectors for Testing Diesel Injectors , Safety 2 Inch Flexible Hose



SIZE I.D O.D W.P B.P
inch bar psi bar psi
2/25" 2 5 400 5800 1200 17400
1/10" 2.5 5.5 600 8700 1400 20300
1/8" 3 6 640 9280 1600 23200
1/8" 3 7 900 13050 2500 36250
1/8" 3 9 2000 29000 3000 43500
4/25" 4 12 2000 29000 4300 62350
1/50" 5 15 2500 36250 5000 72500



High Pressure Common Rail Test Tube with M14*1.5 Connectors



Inner Tube: Nylon



Reinforcement: Three Layers of Strength Fiber Inserted.



Outer Tube: Polyurethane.



Temperature: -40C-120C.



Feature: Oil ,PH and pressure resistance.



Application: To be used as air, mineral oil , water-glycol ,alcohol transport.



Burst Pressure: 3000bar.



Fitting type:

*Cone Seal Fitting Metric 60 Degree Female, Thread M12 x 1.5.*Cone Seal Fitting Metric 60 Degree Female, Thread M14 x 1.5 on one side and M12x1.5 on the other side.



ps: We can customize based on your request, not only 3000bar burst pressure.



Paishun High Pressure Testing Hose provide high-pressure service for construction, ship maintenance, and general water blast cleaning applications, for use in high- and ultra-high pressure hydrostatic testing requirements, where durability and flexibility are required.
