Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: Hydraulic Testing Hose
Payment & Shipping Terms
Minimum Order Quantity: 300pcs
Price: Negotiable
Packaging Details: Well packed in high quality MC (for export)
Delivery Time: Within 20 days after we have received the advanced payment.
Payment Terms: Western Union, MoneyGram, L/C, T/T
Inner Tube: |
Nylon |
Reinforcement: |
Braided Fibers Or Wires |
Outer Tube: |
Polyurethane |
Main Market: |
North America And South America |
Temperature: |
-40C-120C |
Feature: |
Oil ,PH And Pressure Resistance |
Application: |
To Be Used As Air, Mineral Oil , Water-glycol ,alcohol Transport. |
Burst Pressure: |
As High As 3000bar |
Fitting Type: |
*Cone Seal Fitting Metric 60 Degree Female, Thread M12 X 1.5. *Cone Seal Fitting Metric 60 Degree Female, Thread M14 X 1.5 On One Side And M12x1.5 On The Other Side. |
Model Number: |
Test Hose |
Standard: |
GB,SAE ,DIN |
Place Of Origin: |
Zhejiang (CHINA) |
Length: |
0.5M/1M Or As Customized |
Name: |
High Pressure Test Hose |
MOQ: |
50PCS |
Inner Tube: |
Nylon |
Reinforcement: |
Braided Fibers Or Wires |
Outer Tube: |
Polyurethane |
Main Market: |
North America And South America |
Temperature: |
-40C-120C |
Feature: |
Oil ,PH And Pressure Resistance |
Application: |
To Be Used As Air, Mineral Oil , Water-glycol ,alcohol Transport. |
Burst Pressure: |
As High As 3000bar |
Fitting Type: |
*Cone Seal Fitting Metric 60 Degree Female, Thread M12 X 1.5. *Cone Seal Fitting Metric 60 Degree Female, Thread M14 X 1.5 On One Side And M12x1.5 On The Other Side. |
Model Number: |
Test Hose |
Standard: |
GB,SAE ,DIN |
Place Of Origin: |
Zhejiang (CHINA) |
Length: |
0.5M/1M Or As Customized |
Name: |
High Pressure Test Hose |
MOQ: |
50PCS |

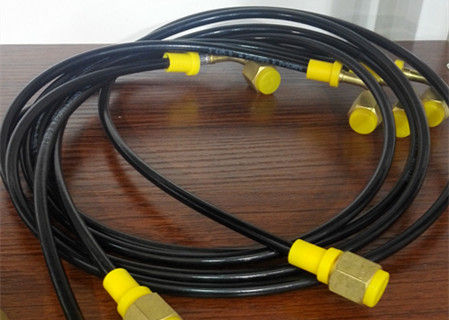

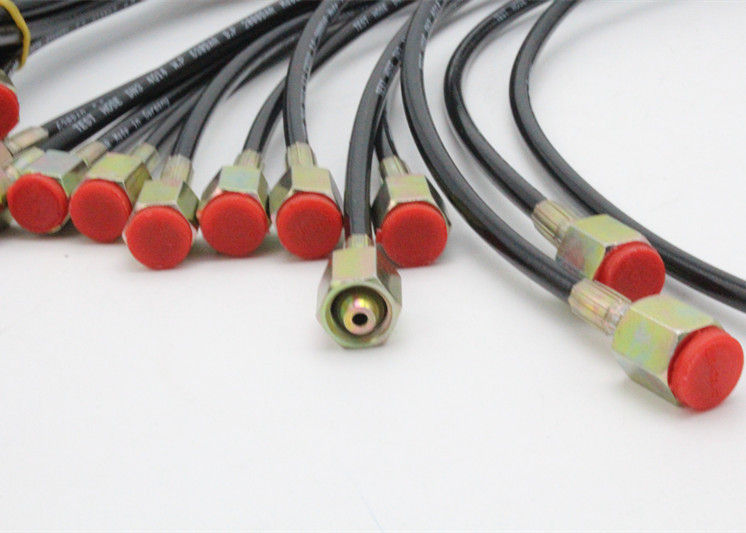

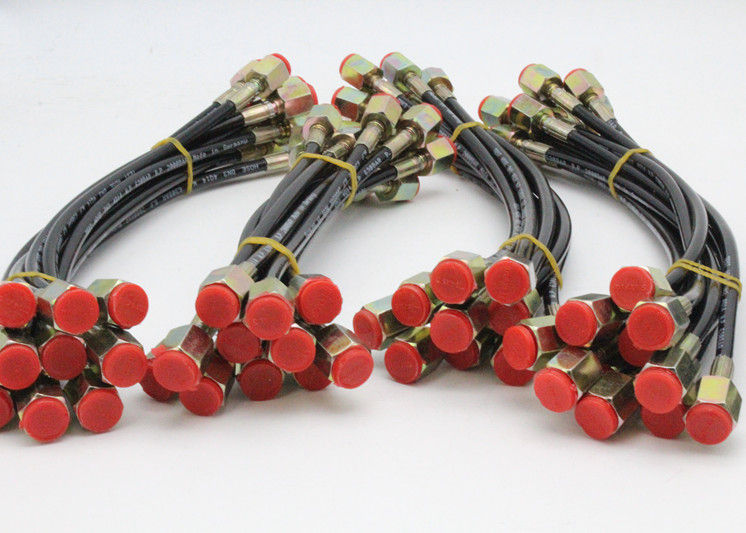

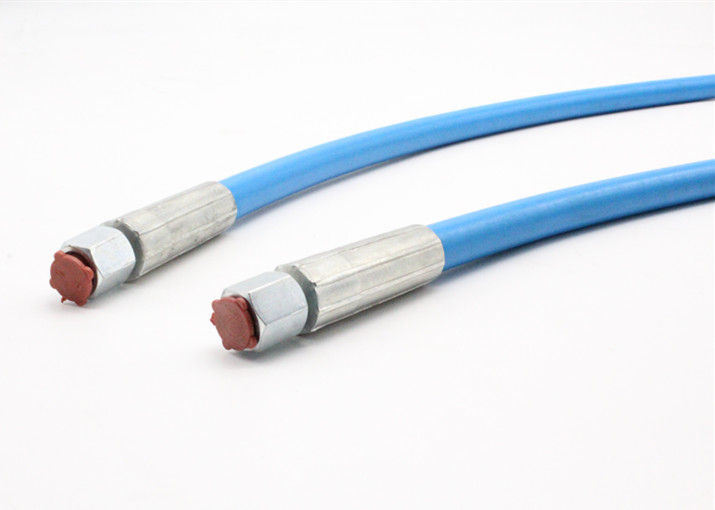

PA11 PU Flexible Common Rail High Pressure Test Hose , 3mm * 7mm
Application: To transfer high pressure fuel.
Inner tube: Nylon Resin (PA11)
Reinforcement: 1 or multiple layers of high strength braided textile or braided wires.
Outer cover: Polyurethane (PU)
Temperature Range: -40℃ ~ +120℃ (-40℉ ~ +248℉)
Connectors: M10*1.5,M12*1.5,M14*1.5,M12*1.25,M14*1.25,M16*1.5,M20*1.5,G1/2,G1/4 and so on.
| SIZE | I.D | O.D | W.P | B.P | ||
| inch | mm | mm | bar | psi | bar | psi |
| 2/25" | 2 | 5 | 400 | 5800 | 1200 | 17400 |
| 1/10" | 2.5 | 5.5 | 600 | 8700 | 1400 | 20300 |
| 1/8" | 3 | 6 | 640 | 9280 | 1600 | 23200 |
| 1/8" | 3 | 7 | 900 | 13050 | 2500 | 36250 |
| 1/8" | 3 | 9 | 2000 | 29000 | 3000 | 43500 |
| 4/25" | 4 | 12 | 2000 | 29000 | 4300 | 62350 |
| 1/50" | 5 | 15 | 2500 | 36250 | 5000 | 72500 |
