Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: ID 8mm
Payment & Shipping Terms
Minimum Order Quantity: 200 pcs
Price: Negotiated
Packaging Details: Well packed by transparent opp film and wooden pallet, or as your request.
Delivery Time: 30 days for 20' FCL
Payment Terms: Western Union, MoneyGram, L/C, T/T, PayPal
Supply Ability: 100,000 pcs per month
Material: |
SBR And NR |
Color: |
Black, Orange, Red, Etc |
Fitting: |
German Or Universal 3 In 1 Quick Couplers |
Temperature: |
-30 To +70 Deg C |
Length: |
10m, 20m, Etc |
Market: |
Europe |
Inner Diameter: |
8mm |
Outer Diameter: |
15mm |
Work Pressure: |
20bar |
Burst Pressure: |
60bar |
Application: |
Air Compressor Machine |
Letters: |
Print As Your Request |
Material: |
SBR And NR |
Color: |
Black, Orange, Red, Etc |
Fitting: |
German Or Universal 3 In 1 Quick Couplers |
Temperature: |
-30 To +70 Deg C |
Length: |
10m, 20m, Etc |
Market: |
Europe |
Inner Diameter: |
8mm |
Outer Diameter: |
15mm |
Work Pressure: |
20bar |
Burst Pressure: |
60bar |
Application: |
Air Compressor Machine |
Letters: |
Print As Your Request |

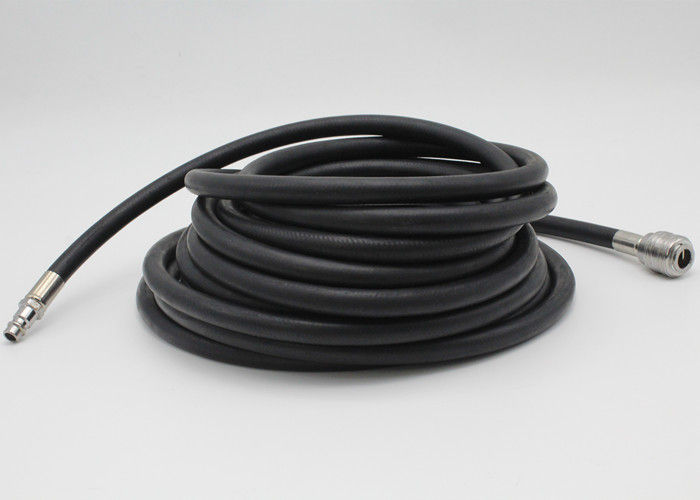

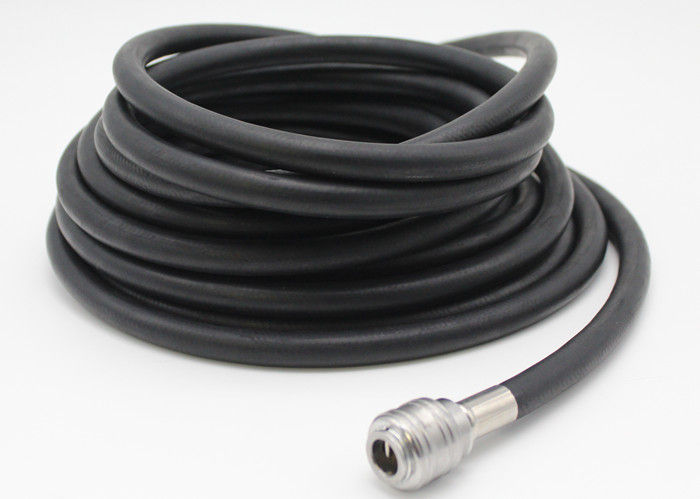

ID 5/16" Air Compressor Hose , with German or Universal 3 in 1 Quick Couplers
Hose Application: Mainly used for conveying of air for air compressor machine.Exported to: British, Portugal, etc.
Color Choice: Red, Yellow, Black etc.
Hose Structure: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR or SBR& EPDM synthetic rubber.
Temperature resistance Range: -30℃ - +70℃
Length: 10m, 20m, etc
Specification of hose:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m/pc |
kg/pc |
|
|
HPR1 |
1/4" |
6 |
12 |
20 |
300 |
60 |
900 |
10 |
1.7 |
|
HPR2 |
1/4" |
6 |
12 |
20 |
300 |
60 |
900 |
20 |
3.3 |
|
HPR3 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
10 |
2.1 |
|
HPR4 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
20 |
4.1 |
|
HPR5 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
10 |
2.5 |
|
HPR6 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
20 |
4.9 |
Specification of fittings:

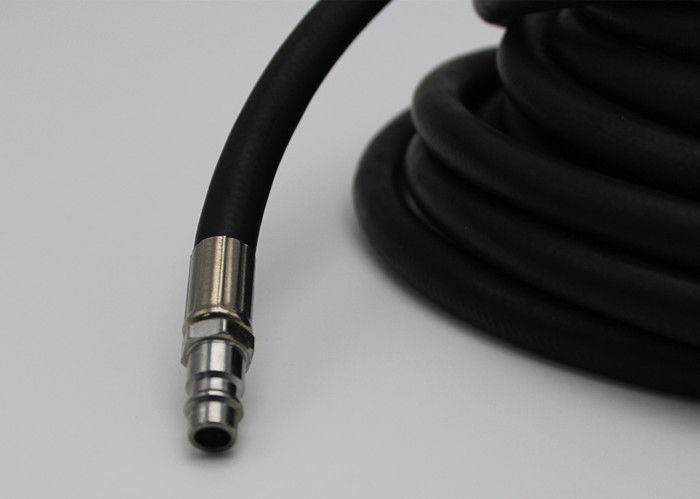

German or Universal 3 in 1 quick coupler and plug.
Competitive Advantage of PASSION Hose:
PASSION® Rubber air hose assembly, is popular in Europe market, made of non-recycled rubber, according to ISO-2398 standard.
Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.
If you have some special request of size, Hangzhou Paishun can also customize for you.
