1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units

1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units

Hydraulic Rubber Hose

High Pressure Hydraulic Pipe

Place of Origin:

Zhejiang China

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

SAE J517 100 R2

Contact Us
Request A Quote
Product Details
Product Name:
High Pressure Hydraulic Hose
Size:
1-1/2"
Color:
Black
Standard:
SAE J517
Surface:
Cloth Wrapped
Temperature:
-40°C~ +100°C
Length:
40m,20m
Inner Tube:
NBR
Cover:
NBR Oil And Weather Resistant Synthetic Rubber
Reinforcement:
Two Layers Of High-tensile Steel Wire Braided
Highlight:

Hydraulic Rubber Hose

,

High Pressure Hydraulic Pipe

Payment & Shipping Terms
Minimum Order Quantity
500m
Price
Negotiated
Packaging Details
Packed in weaving strip, it also can be packed as per your requirement,
Delivery Time
Within 30 days after we receive advance payment
Payment Terms
T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability
30,000m per month
Product Description



1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units



Description:

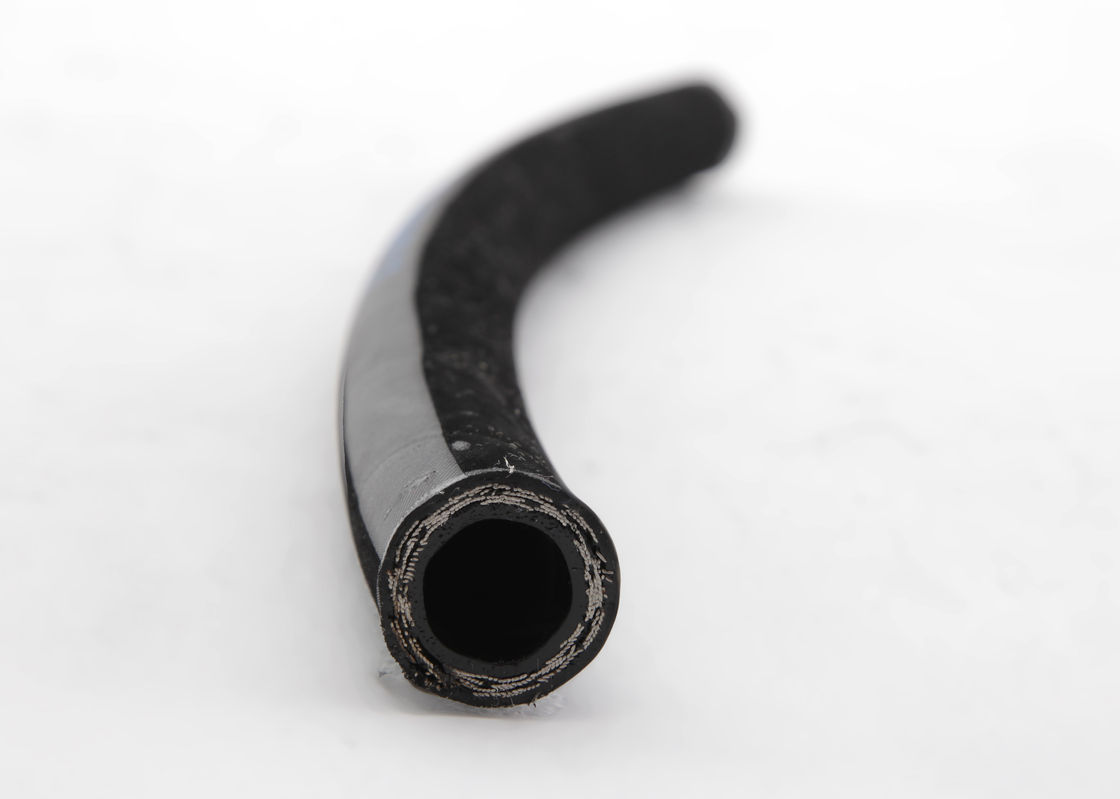

Construction:



Tube: NBR synthetic rubber.

Reinforcement: Two layers of high-tensile steel wire braided.

Cover: NBR oil and weather resistant synthetic rubber.



Temperature: -40℃ - +100℃

Color: Black



Standard length: 40m, 20m.



Specification of R2.pdf



Specifications:



Item Code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

m

cbm/roll

kg/m

R2-05

 3/16

4.8

12.3

414

6000

1655

24000

100



0.32

R2-06

 1/4

6.4

15.5

400

5800

1600

23200

100

0.0514

0.37

R2-08

 5/16

8.0

16.5

350

5075

1400

20300

100

0.0612

0.412

R2-10

 3/8

9.5

19.5

331

4800

1324

19200

100

0.0784

0.53

R2-13

 1/2

12.7

22.5

276

4000

1103

16000

100

0.0833

0.64

R2-16

 5/8

16.0

25.5

250

3630

1001

14520

50

0.074

0.77

R2-19

 3/4

19.0

29.5

215

3120

860

12480

50

0.0833

0.96

R2-25

1

25.4

38.1

165

2400

662

9600

50

0.1445

1.35

R2-32

1 1/4

32.0

48.0

125

1820

502

7280

20

0.209

2.05

R2-38

1 1/2

38.0

55.0

90

1310

361

5240

20

0.2509

2.511

R2-51

2

50.8

68.6

80

1160

320

4640

20

0.3796

3.165





Application:

Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

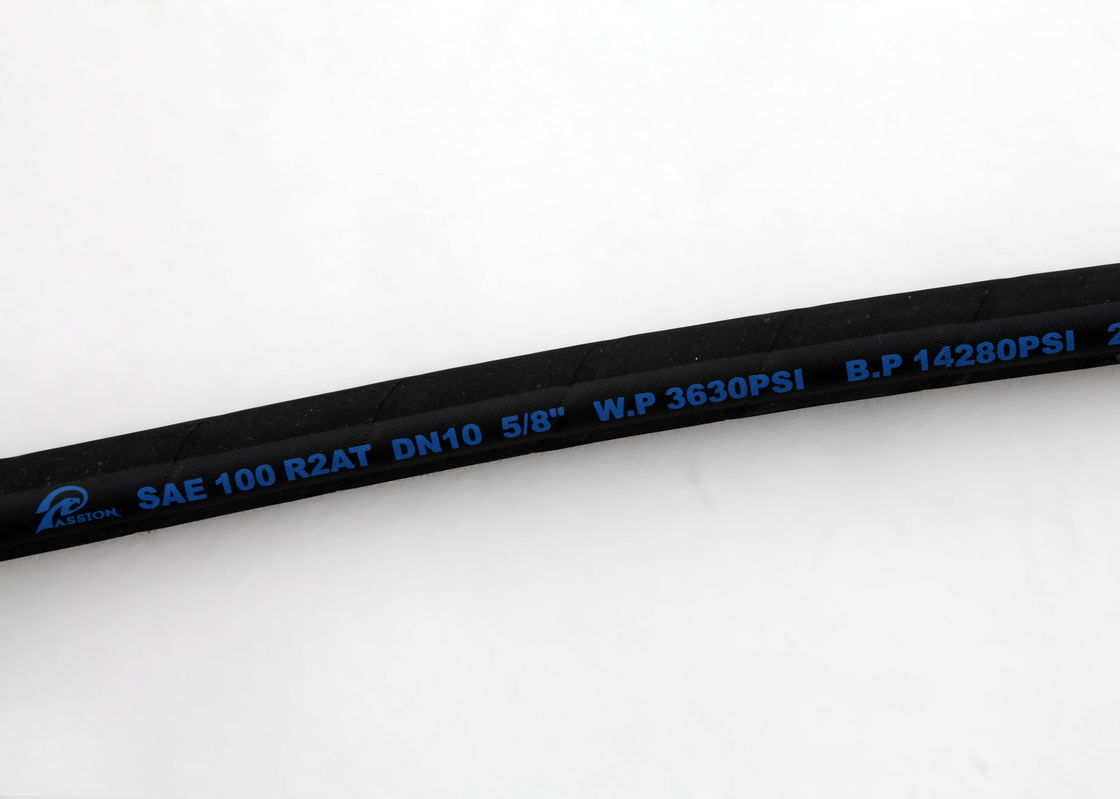

Hydraulic Hose SAE J517 100 R2 AT

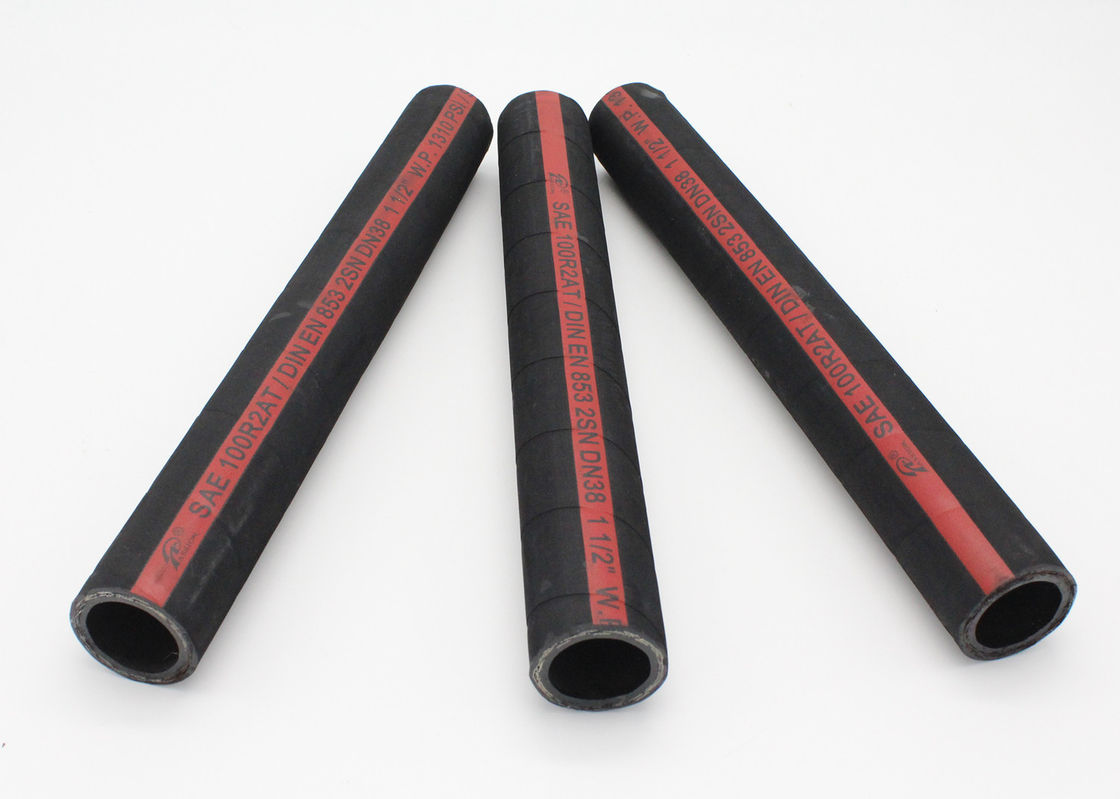

1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units 0













Application:

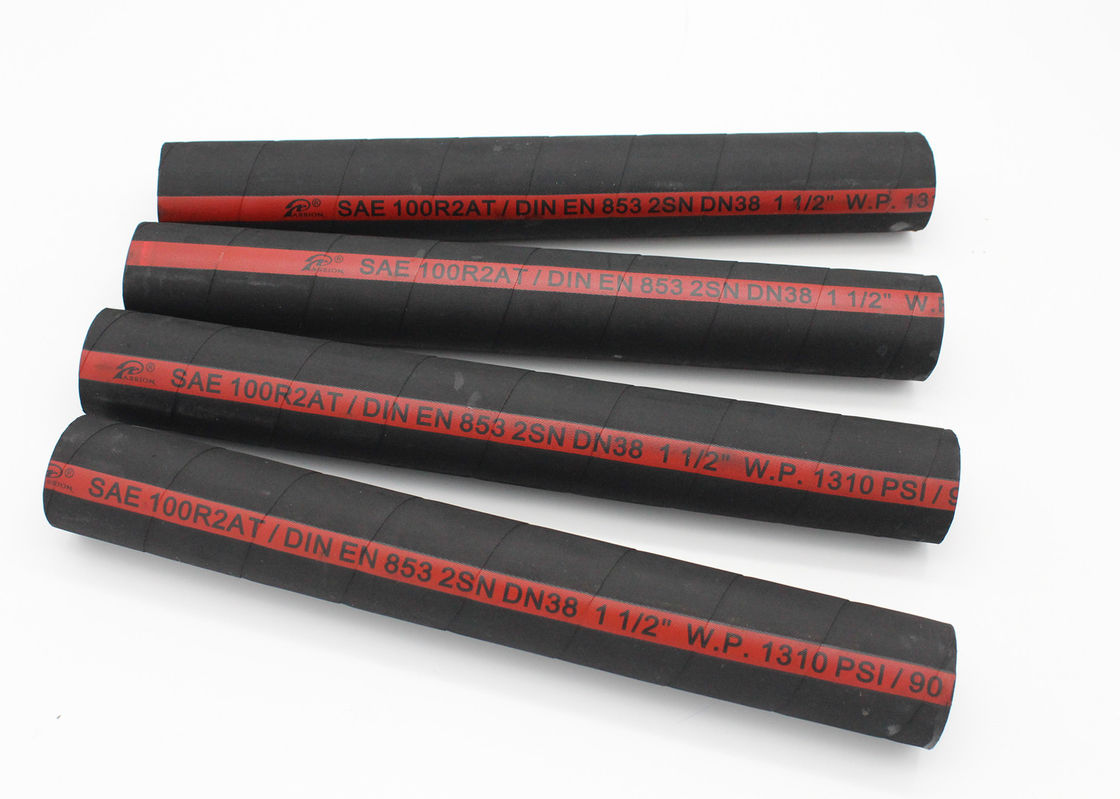

1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units 1

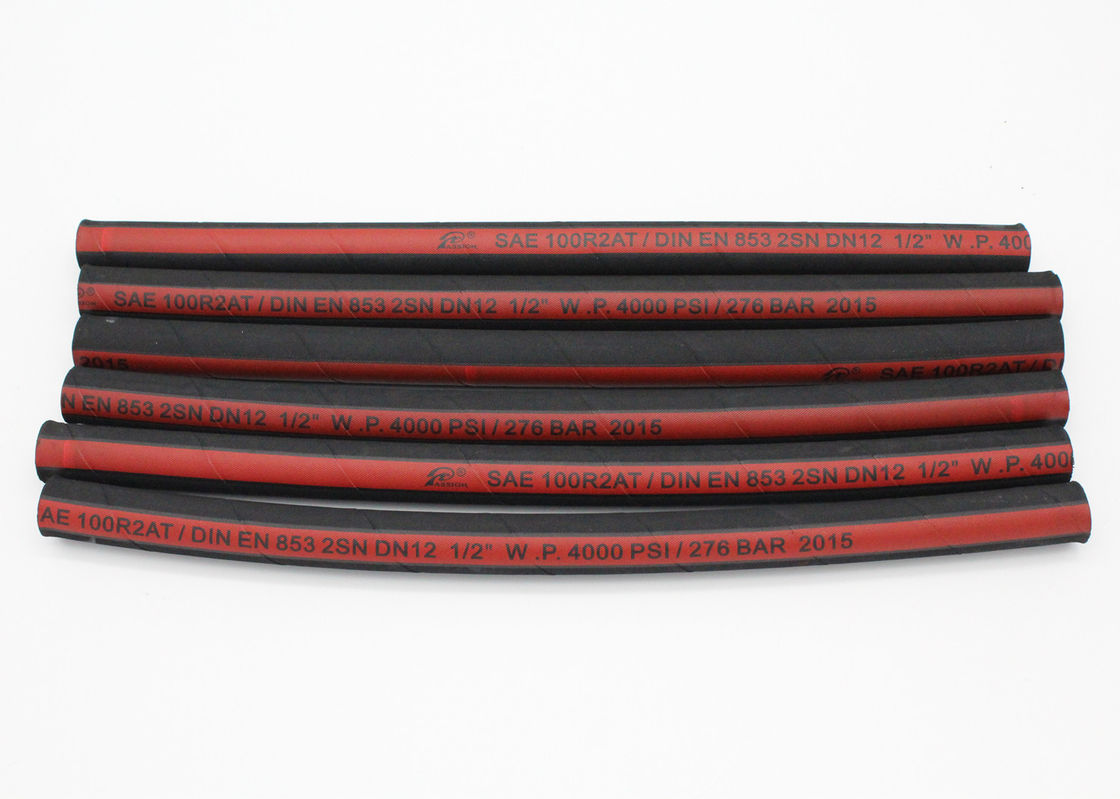

1- 1 / 2" SAE J517 100 R2 High Pressure Hydraulic Hose Wire Braided For Pumping Units 2





Competitive Advantage:


We are professional manufacturer and exporter of rubber hose in China.

It is excellent in quality and competitive in price.


The rubber material is without reclaimed rubber. The working time of our hydraulic hose is

considerable. We have professional testing machines of aging box, hardness tester, tensile

tester, etc. The exact testing report can be sent to our customers.


We supply OEM, ODM according to customer’s requirement.



The hydraulic hoses and fittings can be assembled in our factory.


The hydraulic hoses R2 can be made in both smooth surface and cloth wrapped surface.
