Paishun Advantages
* Various colors.
* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light
Product Detail

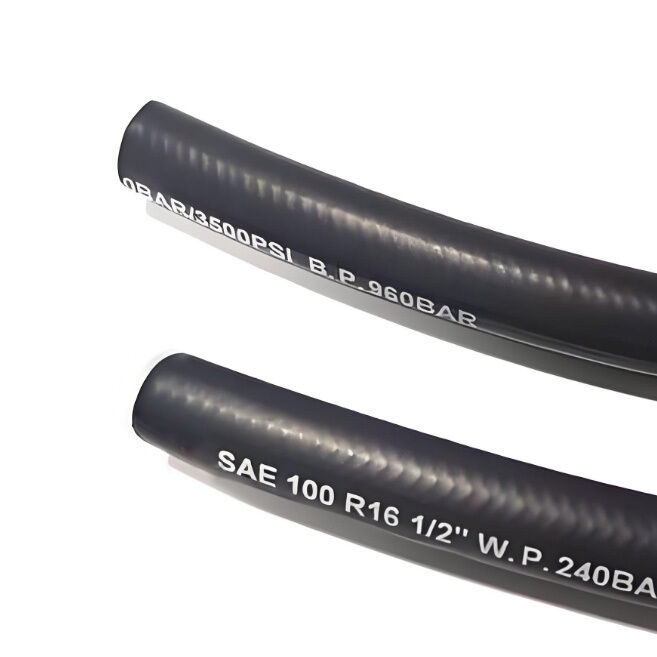

| Name |
SAE 100R16 |
| Material |
NBR |
| Certification |
CE approved. |
| Size |
1/4"~1-1/4" |
| Color |
Black |
| Temperature range |
-40ºC~+100ºC |
| Reinforcement |
Two braids of high-tensile steel wire. |
| Capability/Feature |
Oil-resistant, abrasion-resistant, anti-aging. |
| Length |
100m or 50m per roll. |
| Tolerance |
0.05mm |
| Application |
Medium-pressure hydraulic applications, including mobile, machine tool, and agricultural applications, use petroleum or water-based hydraulic fluids. |
| Package |
Well packed by poly stripes or as per your requirement. |
| Delivery |
According to your quantity, generally speaking, 35 days for a 20' container. |
Product Specification
| Part |
In |
Hose Size ID DIN Dash Size |
Hose OD |
Max. Working Pressure |
Min. Burst Pressure |
| mm |
mpa |
mpa |
| PR16-04 |
1/4 |
6.5 Din Dash size |
14.2 |
35 |
140 |
| PR16-05 |
5/16 |
8.1 Din Dash size |
15.4 |
29.7 |
118.8 |
| PR16-06 |
3/8 |
9.8 Din Dash size |
17.6 |
28 |
112 |
| PR16-08 |
1/2 |
12.8 Din Dash size |
20.9 |
24.5 |
98 |
| PR16-10 |
5/8 |
16.0 Din Dash size |
24.4 |
19.2 |
76.8 |
| PR16-12 |
3/4 |
19.0 Din Dash size |
28.4 |
15.7 |
62.8 |
| PR16-16 |
1 |
25.4 Din Dash size |
36.2 |
14 |
56.0 |
| PR16-20 |
11/4 |
31.8 Din Dash size |
44.3 |
12.5 |
50.0 |
Photo of Factory
With 14 brand new automatic inner hose knitting machines from Italy. The knitting speed is faster,
production capacity has been greatly improved, quality is better and more stable.
RELATIONSHIPS
Long term business relationships are of upmost importance to us at Paishun. With our roots planted
as a manufacturer, we take the time to learn about your business and your individual needs so we
can provide better service to you. We pride ourselves on maintaining long term business relationships
and understand that it takes time to build trust in new ones.
QUALITY
Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed
with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized
environment. This allows us to guarantee your hoses are produced promptly and efficiently.
SHORT LEAD TIMES
We have continually made improvements to our manufacturing process over 12+ years. We've implemented
lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth
and streamlined our supply chain process in order to respond quickly to market change. All with the goal to
decrease lead time and improve quality.
INVENTORY MANAGEMENT
A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand
how important production scheduling and inventory flow are to your business. We will work with you on
an individual basis and will process blanket orders to assist with your inventory level. All of our materials
are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality
standard.
