EN 854 3TE Low Pressure Hydraulic Rubber Hose

EN 854 3TE Low Pressure Hydraulic Rubber Hose

Place of Origin:

China

Brand Name:

PASSIONCOHOSE

Certification:

REACH, RoHS, CE

Model Number:

P3TE

Contact Us
Request A Quote
EN 854 3TE Low Pressure Hydraulic Rubber Hose EN 854 3TE Low Pressure Hydraulic Rubber Hose EN 854 3TE Low Pressure Hydraulic Rubber Hose EN 854 3TE Low Pressure Hydraulic Rubber Hose EN 854 3TE Low Pressure Hydraulic Rubber Hose EN 854 3TE Low Pressure Hydraulic Rubber Hose
Product Details
Outer Cover:
NBR
Sizes:
3/16" To 2"
Manufacturer:
China Hose Factory
Hose Letter:
Customized
Pressure:
6 To 32 MPa
Burst Pressure:
13 To 64 MPa
Length:
Varies (e.g., 25 Ft, 50 Ft, 100 Ft)
Inner Tube:
NBR
Hose Surface:
Smooth/wrapped Surface
Oem:
Yes
Logo:
Customized
Payment & Shipping Terms
Minimum Order Quantity
500m
Price
negotiation
Packaging Details
rolls, cartons, pallets, etc.
Delivery Time
20 to 30 working days
Payment Terms
T/T,L/C
Supply Ability
200, 000meters/Month
RELATED PRODUCTS
Good price Industrial Multipurpose Rubber Hose for Mining Equipment with Oil Resistant Nitrile Tube and High Tensile Textile Reinforcement online

Industrial Multipurpose Rubber Hose for Mining Equipment with Oil Resistant Nitrile Tube and High Tensile Textile Reinforcement

Get Best Price
Good price EN 854 3TE Low Pressure Hydraulic Rubber Hose online

EN 854 3TE Low Pressure Hydraulic Rubber Hose

Get Best Price
Good price EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C online

EN 854 3TE Low Pressure Hydraulic Rubber Hose with Oil & Weather Resistant Cover and Two Braids of High Tensile Fiber for -40C to +100C

Get Best Price
Good price Red Food Washing Hose with 300 PSI Working Pressure – FDA Approved NBR/EPDM Rubber for Hot Water Resistant Cleaning online

Red Food Washing Hose with 300 PSI Working Pressure – FDA Approved NBR/EPDM Rubber for Hot Water Resistant Cleaning

Get Best Price
Contact Us
Contact Now
Product Description

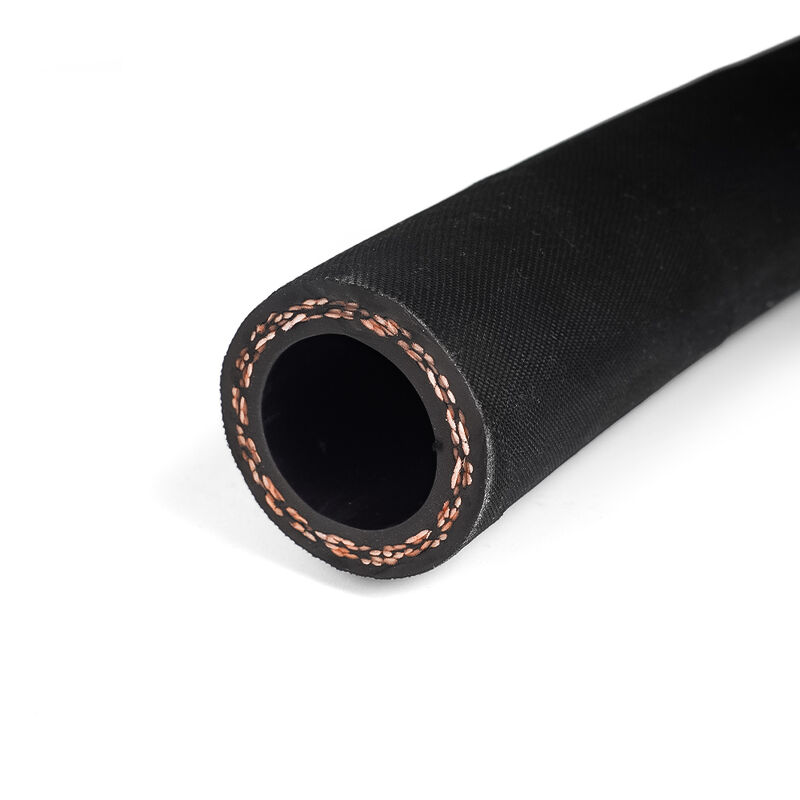

EN 854 3TE Low Pressure Hydraulic Rubber Hose
The EN 854 3TE is a high-quality, textile-reinforced hydraulic hose designed for low to medium-pressure applications. It is widely recognized for its excellent flexibility and durability in demanding industrial environments.
EN 854 3TE Low Pressure Hydraulic Rubber Hose 0
Construction & Specifications
  • Inner Tube: Synthetic Rubber
  • Reinforcement: Two Braids of High Tensile Fiber
  • Outer Cover: Oil & Weather Resistant Synthetic Rubber
  • Temperature Range: -40°C to +100°C (-40°F to +212°F)
  • Standard: EN 854 3TE

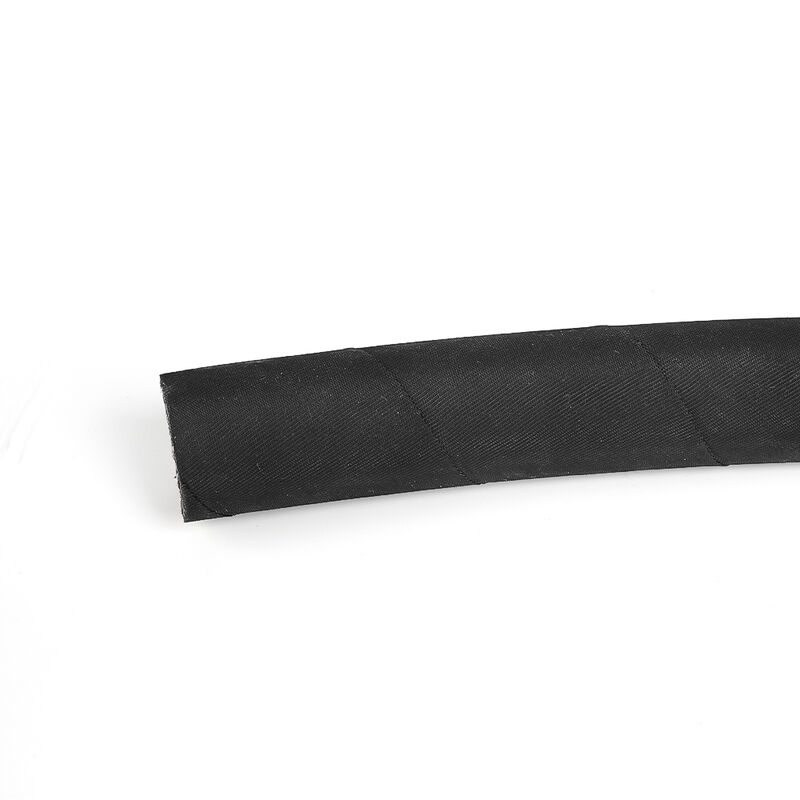

  • Options: Smooth Cover / Wrapped Cover
Technical Specifications
Part Number I.D. (inch) I.D. (mm) O.D. (mm) W.P. (MPa) B.P. (MPa) Min. Bend Radius (mm)
P3TE-03 3/16" 5.0 12.7 16.0 64.0 40
P3TE-04 1/4" 6.5 14.3 14.5 58.0 45
P3TE-05 5/16" 8.0 17.0 13.0 52.0 55
P3TE-06 3/8" 9.8 18.5 11.0 44.0 70
P3TE-08 1/2" 12.8 22.1 9.3 37.2 85
P3TE-10 5/8" 16.0 25.9 8.0 32.0 105
P3TE-12 3/4" 19.0 29.4 7.0 28.0 130
P3TE-16 1" 25.4 36.2 5.5 22.0 150
P3TE-20 1 1/4" 32.0 43.2 4.5 18.0 190
P3TE-24 1 1/2" 38.1 50.0 4.0 16.0 240
P3TE-32 2" 51.0 63.2 3.3 13.2 300
Application Range

Due to its lightweight and flexible nature, the EN 854 3TE is ideal for:

  • Return lines in hydraulic systems.

  • Power steering and fuel delivery.

  • Pneumatic systems and general industrial oil transfer.

  • Agricultural machinery and mobile equipment where space is restricted.

Why choose 3TE?

Unlike the 1TE or 2TE variants, the 3TE offers higher pressure ratings while remaining easy to route through tight engine compartments or complex machinery.

EN 854 3TE Low Pressure Hydraulic Rubber Hose 1 EN 854 3TE Low Pressure Hydraulic Rubber Hose 2
