High Resistant 1'' Flexible Rubber Air Intake Hose Automotive Braided EPDM NBR

High Resistant 1'' Flexible Rubber Air Intake Hose Automotive Braided EPDM NBR

1" flexible rubber air intake hose

Braided flexible rubber air intake hose

EPDM flexible rubber air intake hose

Place of Origin:

Zhejiang, China

Brand Name:

PASSIONCO HOSE

Certification:

CE, RoSH

Model Number:

PMP-25

Contact Us
Request A Quote
Product Details
Material:
EPDM
Size:
1'' X 50/100 Meters/roll
Working Pressure:
2MPa/20bar/300psi
Bursting Pressure:
6MPa/60bar/900psi
Length:
50m/100m Per Roll
Application:
Automotive Parts
Certification:
RoHS, CE
Temperature:
-30℃~+100℃
Logo:
Customized
Highlight:

1" flexible rubber air intake hose

,

Braided flexible rubber air intake hose

,

EPDM flexible rubber air intake hose

Payment & Shipping Terms
Minimum Order Quantity
1000meters
Price
USD 1.88~1.92 per meter
Packaging Details
Strong woven stripes wrapped
Delivery Time
4 weeks
Payment Terms
L/C, T/T
Supply Ability
200,000 meters per month
Product Description

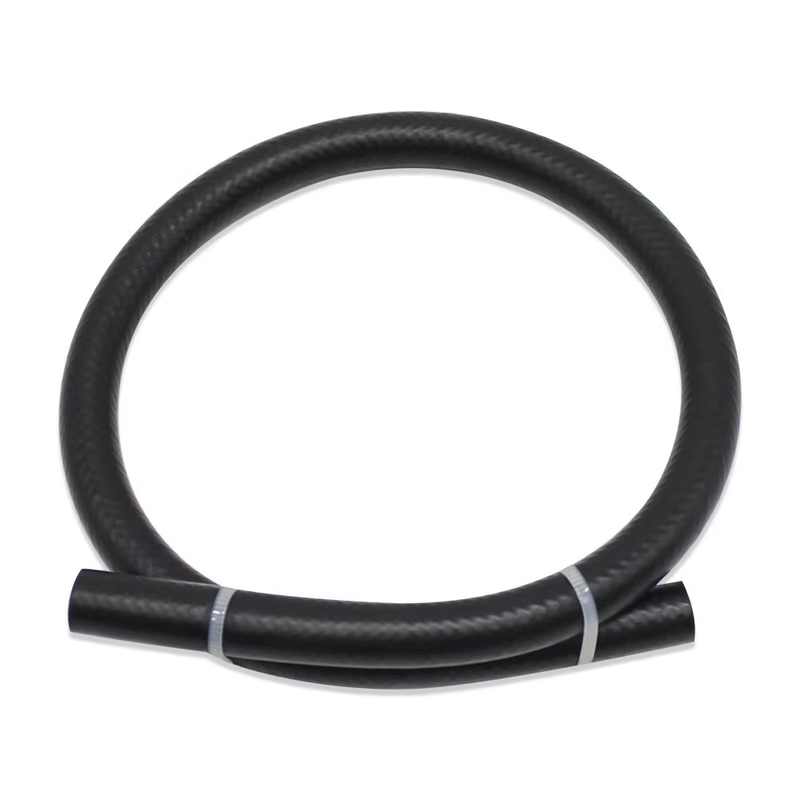

1'' Automotive Braided Flexible Intake Air Hose

Description:



Multi-Purpose EPDM Rubber Hose is a versatile and durable hose designed for use in various industrial and agricultural applications. It is made from EPDM (Ethylene Propylene Diene Monomer), a type of synthetic rubber known for its excellent resistance to weather, ozone, heat, and chemicals.



Applications: It can handle air, water, light chemicals, and non-corrosive liquids, making it ideal for tasks like irrigation, construction, and even for use with air tools such as nailers and staplers



Features: The hose is highly resistant to abrasion and can tolerate both hot and cold water. It is also widely used for suction and delivery operations



Flexibility: Its flexibility and resistance to wear make it suitable for delivering fertilizers, acids, and general-purpose air and water tasks




Product Parameters:

1'' Automotive Braided Flexible Intake Air Hose
Application Air intake and heat dissipation in automotive cooling systems
Color Black (Customized)
TEMP. Rang -30ºC~100ºC / -30ºF~+210ºF
Inner Diameter 1'' (25.4mm)
Certifications CE & RoHS approved.
Material High quality EPDM Synthetic Rubber
Reinforcement High tensile polyester fiber braided
Length 50/100 meters/roll
Specific Parameters
Part Number I.D O.D Max W.P. Min B.P. Min Bend Radius Weight
NO. inch mm inch mm psi bar psi bar inch mm kg/meter
PMP-05 3/16 4.8 0.45 11.5 300 20 900 60 4.53 115 0.14
PMP-06 1/4 6.3 0.51 13.0 300 20 900 60 5.12 130 0.16
PMP-08 5/16 8.0 0.59 15.0 300 20 900 60 5.91 150 0.20
PMP-10 3/8 10.0 0.67 17.0 300 20 900 60 6.69 170 0.23
PMP-13 1/2 12.7 0.83 21.0 300 20 900 60 8.27 210 0.43
PMP-16 5/8 16.0 0.94 24.0 300 20 900 60 9.45 240 0.45
PMP-19 3/4 19.0 1.14 29.0 300 20 900 60 11.42 290 0.58
PMP-25 1 25.4 1.40 35.5 300 20 900 60 13.98 355 0.73




Applications:

Air intake and heat dissipation in automotive cooling systems.

For the transfer of air, water, light oils, and chemicals. The black nitrile tube is non-conductive, with minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.



High Resistant 1'' Flexible Rubber Air Intake Hose Automotive Braided EPDM NBR 0


Advantages:
1. No bulge
2. Anti-kink
3. Non Conductive
4. High Flexibility
5. Wear Resistance
6. Aging Resistance

High Resistant 1'' Flexible Rubber Air Intake Hose Automotive Braided EPDM NBR 1


PLEASE FEEL FREE TO CONTACT US FOR ANY QUESTION!



PASSION FOR HOSE, PASSION FOR YOU!

High Resistant 1'' Flexible Rubber Air Intake Hose Automotive Braided EPDM NBR 2
