Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: ID 3/8", 1/2"
Payment & Shipping Terms
Minimum Order Quantity: 2,000m
Price: Negotiated
Packaging Details: Well packed by transparent opp film or poly stripe, or as your request.
Delivery Time: 30 days for 20' FCL
Payment Terms: Western Union, MoneyGram, L/C, T/T, PayPal
Supply Ability: 100,000 m per month
Material: |
EPDM |
Color: |
Black, Red, Etc |
Temperature: |
-40℃ - +100℃ |
Length: |
50m, 100m |
Inner Diameter: |
10mm, 13mm |
Standard: |
SAE J1402 |
Reinforcement: |
Fiber Briaded |
Material: |
EPDM |
Color: |
Black, Red, Etc |
Temperature: |
-40℃ - +100℃ |
Length: |
50m, 100m |
Inner Diameter: |
10mm, 13mm |
Standard: |
SAE J1402 |
Reinforcement: |
Fiber Briaded |

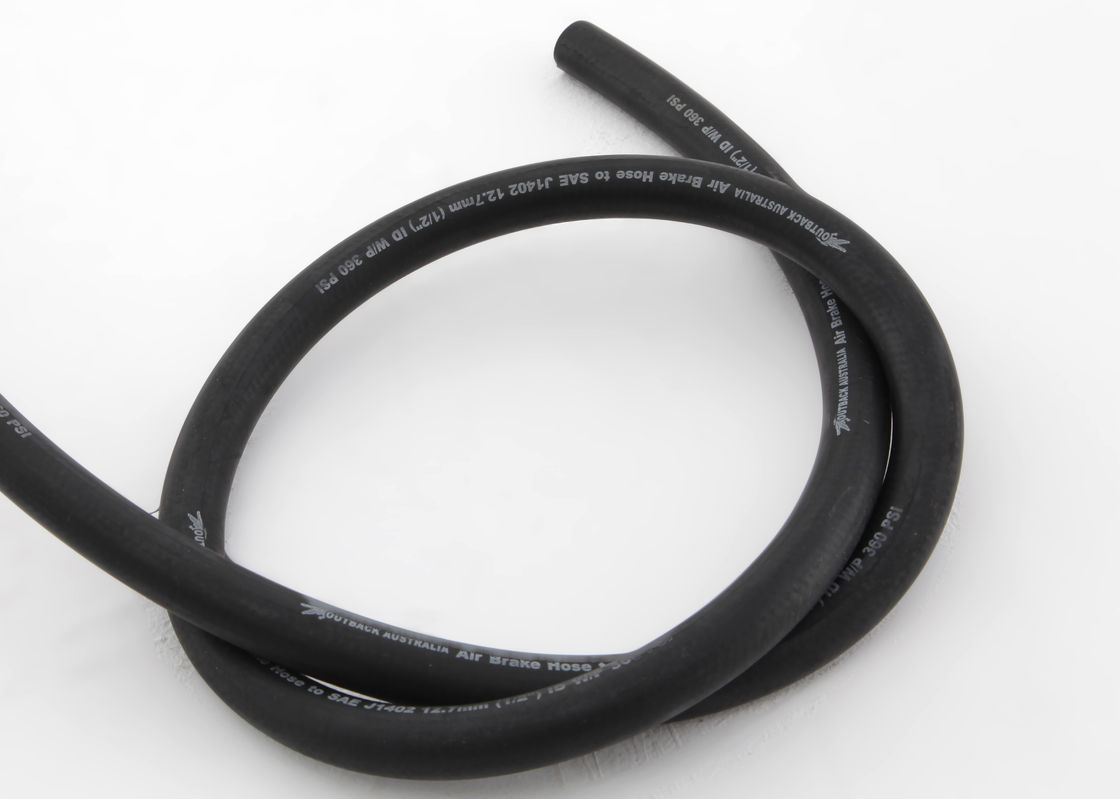

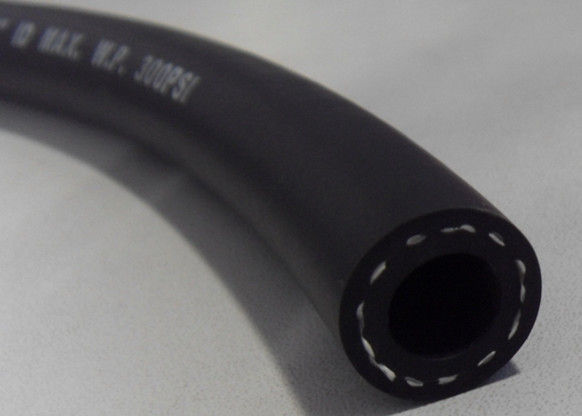

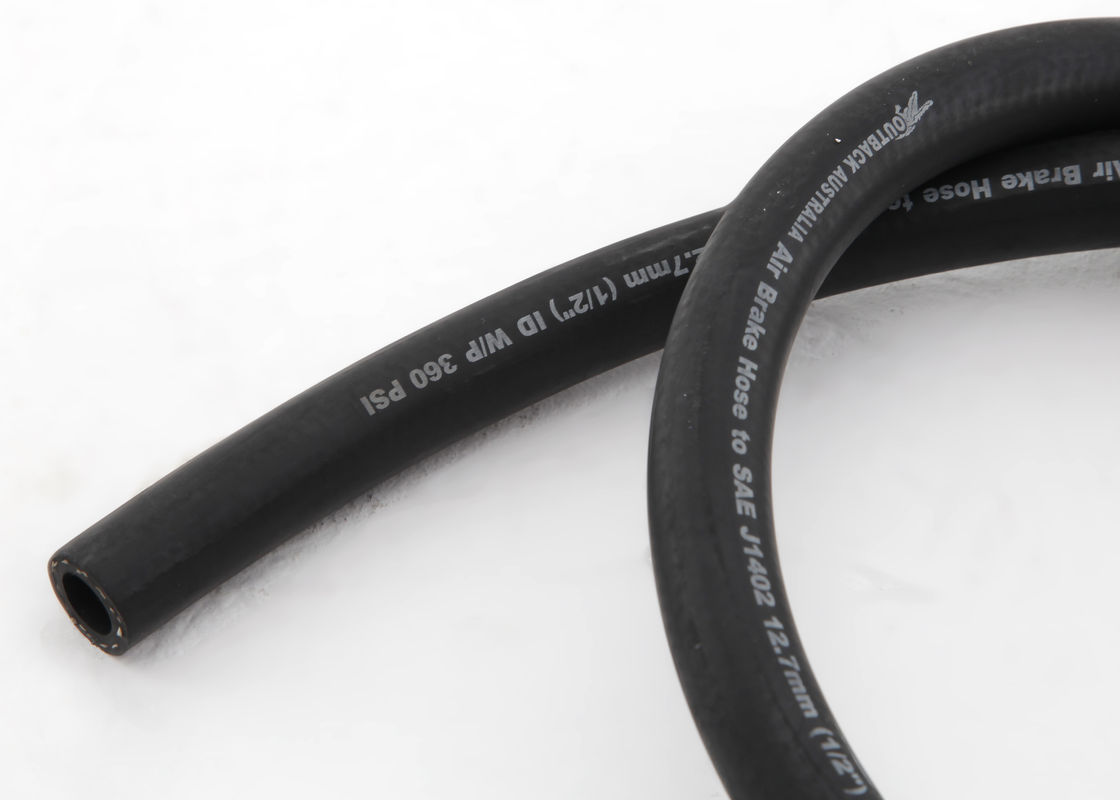

ID 3/8", 1/2" Smooth Cover J1402 Rubber Air Hose with Singl Fiber Braided 15 BAR
Applicable standard: SAE J1402-2006, GB7128-86
Structure: Inner Tube: EPDM
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Bend radius: 10 times of proper diameter dimension
Application: Mainly used for vehicle air brake system. The application includes the flexible connection between frame and axle, tractor and trailer and between trailers, as well as unprotected air circuit with air pressure coming to 1.0 MPa when the air circuit is possibly to be dragged or bumped.
Applicable temperature: -40℃ - +100℃
Standard length: 50m, 100m.
Specification:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
HPR1 |
3/8" |
9.5 |
19 |
15 |
225 |
62 |
900 |
100 |
0.05 |
0.34 |
|
HPR2 |
1/2" |
12.7 |
22 |
15 |
225 |
62 |
900 |
100 |
0.08 |
0.48 |
Competitive Advantage:
PASSION® J1402 rubber air hose is made of non-recycled rubber, according to SAE J1402 standard.
Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.
If you have some special request of size, Hangzhou Paishun can also customize for you.
