Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 1/4" 5/16" 3/8"
Contact Us

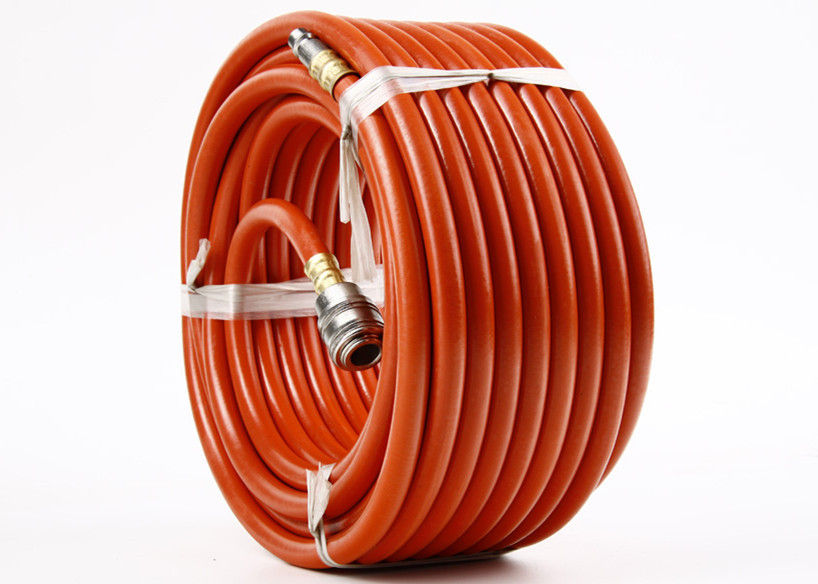

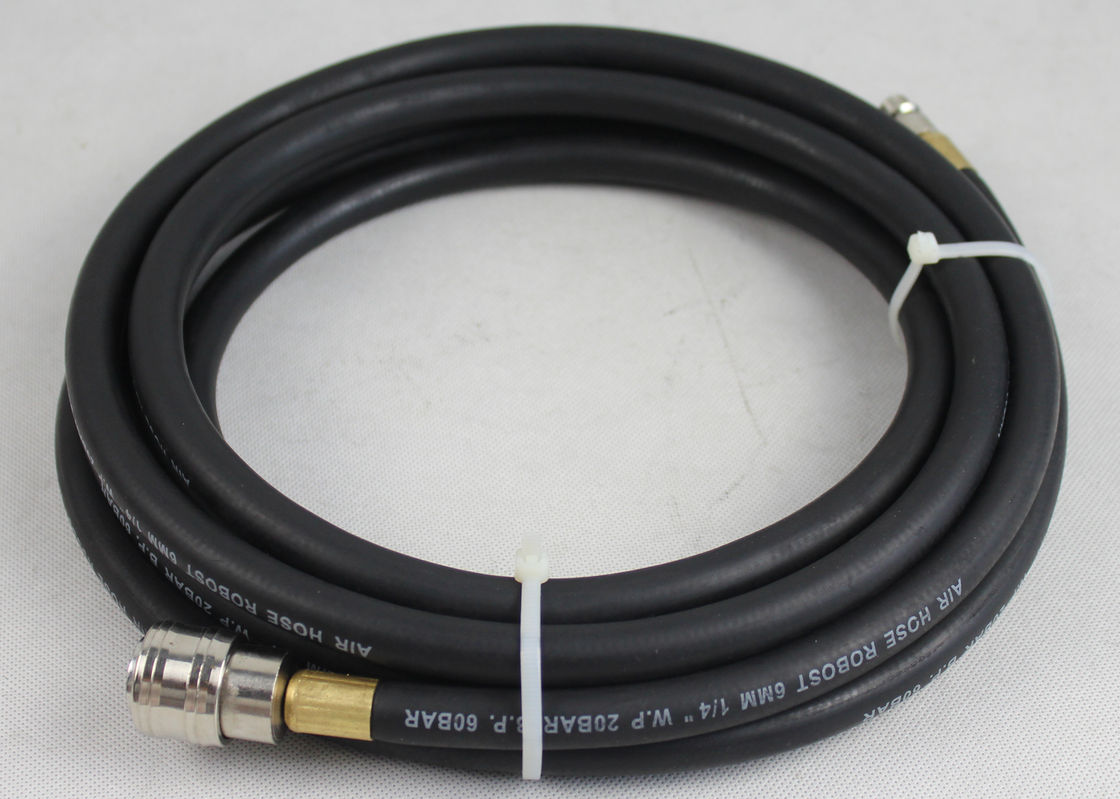

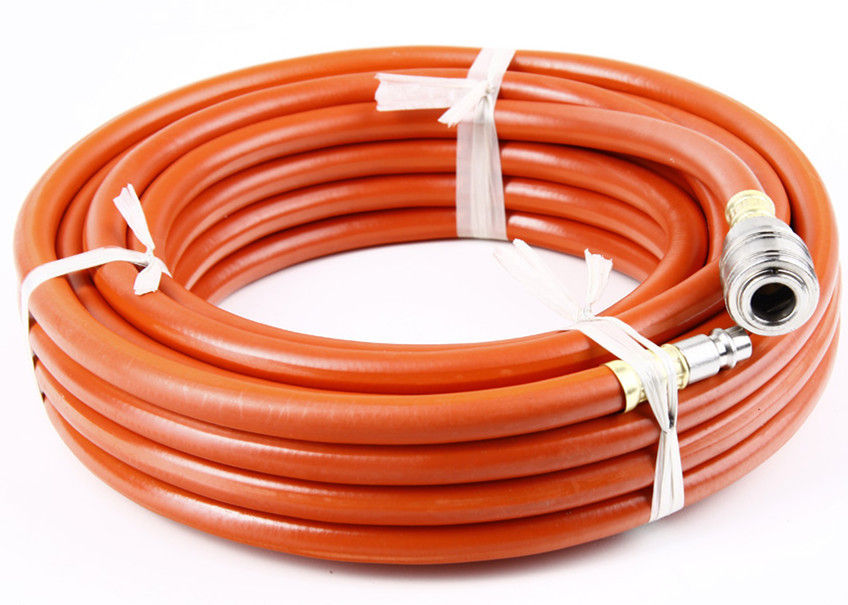

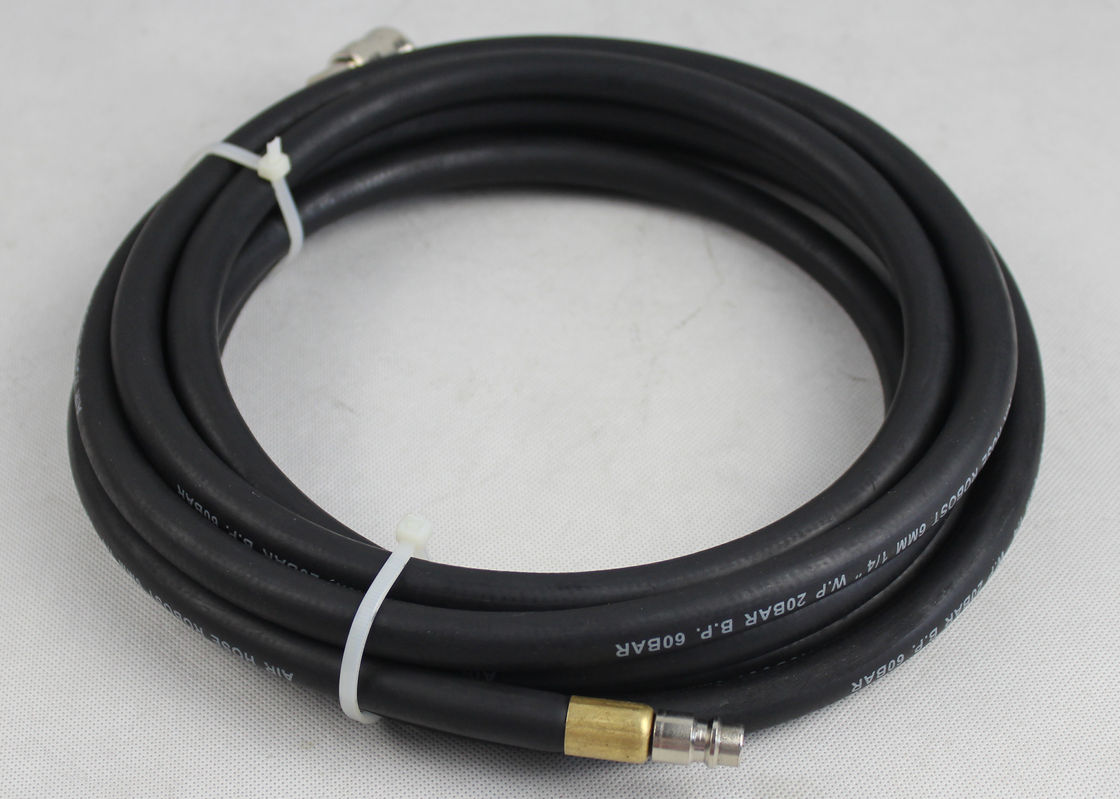

ID 1/4" 5/16" 3/8" Rubber Air Hose Assembly with Quick Couplers
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR or SBR& EPDM synthetic rubber.
Temperature: -30℃ - +70℃
Color: Red, Yellow, Black etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 10m, 20m
Specification of hose:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m/pc |
kg/pc |
|
|
HPR1 |
1/4" |
6 |
12 |
20 |
300 |
60 |
900 |
10 |
1.7 |
|
HPR2 |
1/4" |
6 |
12 |
20 |
300 |
60 |
900 |
20 |
3.3 |
|
HPR3 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
10 |
2.1 |
|
HPR4 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
20 |
4.1 |
|
HPR5 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
10 |
2.5 |
|
HPR6 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
20 |
4.9 |
Specification of fittings:
German or Universal 3 in 1 quick coupler and plug.
Competitive Advantage:
PASSION® Rubber air hose assembly, is popular in Europe market, made of non-recycled rubber, according to ISO-2398 standard.
Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.
If you have some special request of size, Hangzhou Paishun can also customize for you.
