Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 3/16" to 1"
Video

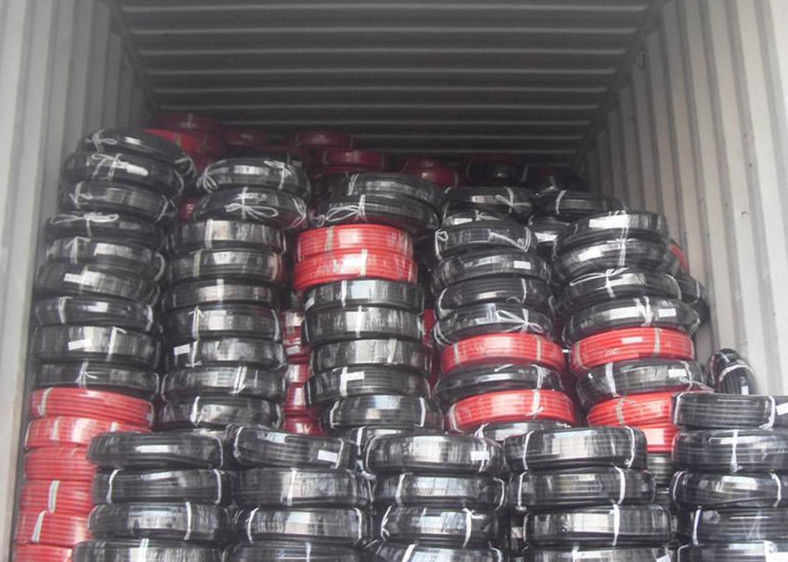

Red Groove Surface Rubber Air Hose , Recoil Air Hose ID 3 / 16" To 1"
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: Groove surface NR & SBR synthetic rubber.
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Temperature: -30℃ - +80℃
Standard length: 50m, 100m.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Hose Specification:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
HPR1 |
3/16" |
5 |
12 |
20 |
300 |
60 |
900 |
100 |
|
|
|
HPR2 |
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.0256 |
0.17 |
|
HPR3 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.0271 |
0.22 |
|
HPR4 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.036 |
0.26 |
|
HPR5 |
1/2" |
13 |
22 |
20 |
300 |
60 |
900 |
100 |
0.0634 |
0.4 |
|
HPR6 |
5/8" |
16 |
25 |
20 |
300 |
60 |
900 |
50 |
0.1095 |
0.45 |
|
HPR7 |
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.146 |
0.7 |
|
HPR8 |
1" |
25 |
36 |
20 |
300 |
60 |
900 |
50 |
0.171 |
0.85 |
Competitive Advantage:
PASSION® Rubber air water hose, with groove surface, is popular in Middle Eaat market, such as Saudi Arabia. The hose is made of non-recycled rubber, according
to ISO-2398 standard. Hangzhou Paishun can crimp the specified fittings and quick released coupling on
the rubber air water hose. If you have some special request of size, Hangzhou Paishun can also customize for you.
