ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station

ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station

  • High Light

    fuel delivery hose

    ,

    industrial rubber hose

  • Material
    NBR
  • Reinforcement Layer
    Single Steel Wire Braided
  • Color
    Black, Blue, Red Etc
  • ID Size
    16mm To 25mm
  • OD Size
    26.5mm To 35.5mm
  • Standard Length
    50m
  • Surface
    Smooth
  • Standard
    CE, ISO
  • Working Pressure
    30bar (450psi)
  • Burst Pressure
    120 Bar (1740psi)
  • Packing
    Strong OPP Film
  • Temperature Range
    -40° To +70°C
  • Trademark
    PASSION Or OEM
  • Place of Origin
    Zhejiang China
  • Brand Name
    PASSION
  • Certification
    ISO 9001-2008, CE
  • Model Number
    ID 5/8'' to 1''
  • Minimum Order Quantity
    2,000 m
  • Price
    Negotiable
  • Packaging Details
    Wrapped by transparent OPP film, pallet, color packing can be customized
  • Delivery Time
    30 days after received the advance payment
  • Payment Terms
    T/T, LC, Paypal or Western Union
  • Supply Ability
    400,000 m per month

ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station

To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.



We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.









ID 5 / 8 To 1 Inch Single Wire Rubber Fuel Hose 30 Bar For Gas Station



Specifications:


Code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

m/roll

cbm/roll

kg/m

PFD-16

5/8’’

16

24.5

30

450

120

1740

50

0.052

0.46

PFD-19

3/4’’

19

28

30

450

48

680

50

0.073

0.55

PFD-25

1’’

25

35.7

30

450

48

680

50

0.124

0.82





ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station 0

ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station 1

Description:

1, Construction:  Tube: NBR Synthetic Rubber
                          Reinforcement: Single High-strength wire braided.
                          Cover: NBR Synthetic Rubber

2, Appearance:  Smooth finish, Black, Red, Blue, Green


3, Applicable temperature: -40℃ to +70℃


4, Bend radius: 10 times of proper diameter dimension

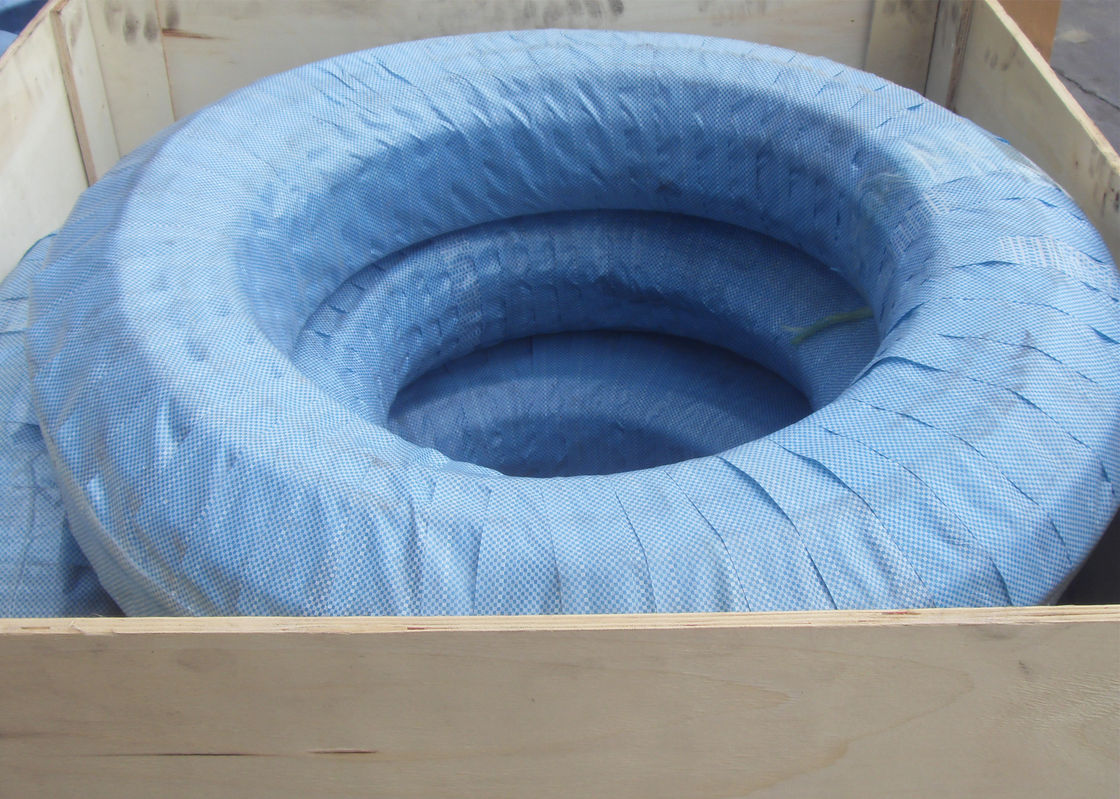

5, Package:  Common packed by OPP transparent film.

The pallet and woven bag packing are available, the color sticker can be offerd,

but shall be charged additionally.


6, Trademark: PASSION, OEM is available


7, Property: Good oil resistance and excellent flexibility. Without craze crack or fracture  after 180°bending over or doubling


8, Certificates: CE, SGS


9, Main market: Middle East, Europe and America


10: Joint Connection: Customized as your request



Applications: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels      (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.



Competitive Advantage:

Hangzhou Paishun Rubber And Plastic Co., Ltd, a leading rubber hose manufacturer in the east of China. 8 years manufacturing experience, 50 sets of braiders and 3 production lines.

Paishun has a strict quality inspection team, every shipment would be tested before shipment.


Free sample can be offered, we are happy to customize as your request.



ID 5 / 8 To 1 Inch Single Wire Fuel Dispensing Hose 30 Bar For Gas Station 2

Cooperative Brands:

WELDMAN, Max Weld, SAEFLEX. REDI-WELD

Paishun's Slogan:

PASSION FOR HOSE! PASSION FOR YOU!
