Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: 3/4", 1"
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Price: 4.0USD/m.
Packaging Details: Well packed by good and thick braided strap
Delivery Time: within 25 days after we have received your advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300000m/month
Tube: |
Conductive Synthetic Rubber Resistant To Gasoline |
Reinforcement: |
Braided Fibers |
Cover: |
Synthetic Rubber Resistant To Gasoline |
Temperature: |
-55℃ To +60℃ |
Color: |
Black Or Other Colors |
Application: |
For Fuel Dispensing Pump Applications, Including Gasoline, Diesel, Oxygenated Fuels (up To A Maximum Of 15% Oxygenated Compounds), Lubricating Oil, And Other Mineral Oil Etc. |
Standard Length: |
60meters |
Sizes: |
5/8", 3/4", 1" |
Working Pressure: |
16bar |
Bursting Pressure: |
48bar |
Tube: |
Conductive Synthetic Rubber Resistant To Gasoline |
Reinforcement: |
Braided Fibers |
Cover: |
Synthetic Rubber Resistant To Gasoline |
Temperature: |
-55℃ To +60℃ |
Color: |
Black Or Other Colors |
Application: |
For Fuel Dispensing Pump Applications, Including Gasoline, Diesel, Oxygenated Fuels (up To A Maximum Of 15% Oxygenated Compounds), Lubricating Oil, And Other Mineral Oil Etc. |
Standard Length: |
60meters |
Sizes: |
5/8", 3/4", 1" |
Working Pressure: |
16bar |
Bursting Pressure: |
48bar |

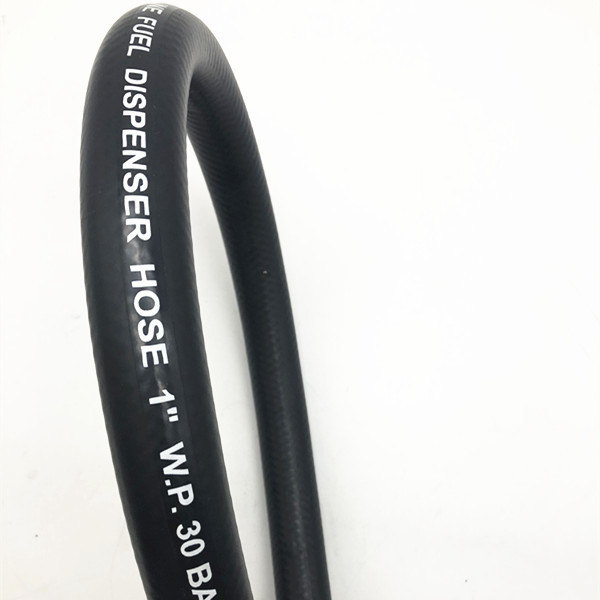

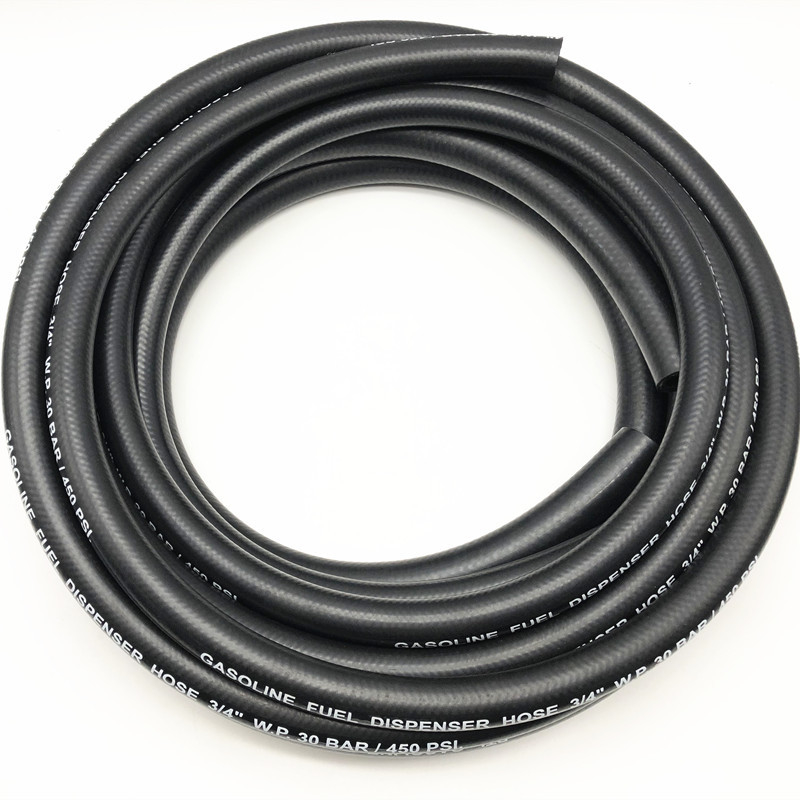

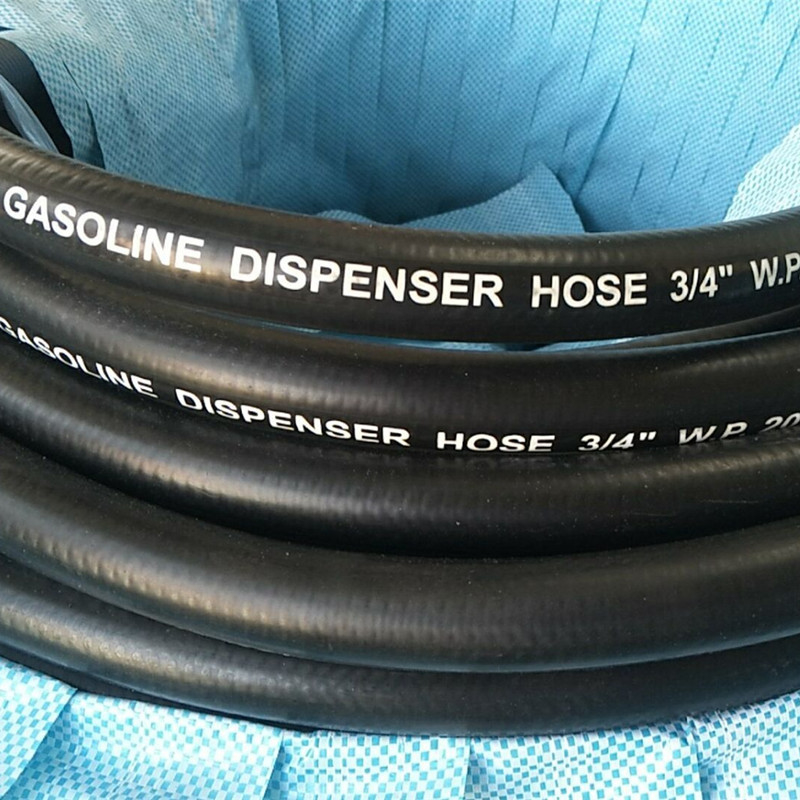

Extreme Low Temperature Resistant Petrol Pump Hoses for Service Stations
Construction -
Tube: Antistatic, Black, low-temp synthetic rubber
Reinforcement: Two Layers of Braided synthetic yarn
Cover: Black, low-temp synthetic rubber
Temperature Resistant: -54ºC to +60ºC
Color: Black or other colors.
Application: A premium fuel pump hose for use in extremely cold environments.
Remains flexible where temperatures of -65˚F (-54˚C) are encountered.
Length: 60meters/roll.
Specification:
| Inner Diameter | Outer Diameter | Max Working Pressure | Min Burst Pressure |
|||
| inch | mm | mm | bar | psi | bar | psi |
| 5/8 | 16 | 26 | 16 | 232 | 48 | 696 |
| 3/4'' | 19 | 30 | 16 | 232 | 48 | 696 |
| 1'' | 25 | 36 | 16 | 232 | 48 | 696 |
Benefits:
1). Electrically Conductive Gasoline Resistant Inner Tube Designed to Dissipate Static Build Up.
2). A Fiber Reinforcement for Maximum Pressure and Flexibility.
3). Still can work when temperature goes down to as low as -54ºC.
4). Lightweight.
