Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
SAE 100 R2 AT/EN 853 2SN
Description:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: Two layers of high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 50m/roll
Specifications:
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
R2-05 |
3/16 |
4.8 |
12.3 |
414 |
6000 |
1655 |
24000 |
100 |
|
0.32 |
R2-06 |
1/4 |
6.4 |
15.5 |
400 |
5800 |
1600 |
23200 |
100 |
0.0514 |
0.37 |
R2-08 |
5/16 |
8.0 |
16.5 |
350 |
5075 |
1400 |
20300 |
100 |
0.0612 |
0.412 |
R2-10 |
3/8 |
9.5 |
19.5 |
331 |
4800 |
1324 |
19200 |
100 |
0.0784 |
0.53 |
R2-13 |
1/2 |
12.7 |
22.5 |
276 |
4000 |
1103 |
16000 |
100 |
0.0833 |
0.64 |
R2-16 |
5/8 |
16.0 |
25.5 |
250 |
3630 |
1001 |
14520 |
50 |
0.074 |
0.77 |
R2-19 |
3/4 |
19.0 |
29.5 |
215 |
3120 |
860 |
12480 |
50 |
0.0833 |
0.96 |
R2-25 |
1 |
25.4 |
38.1 |
165 |
2400 |
662 |
9600 |
50 |
0.1445 |
1.35 |
R2-32 |
1 1/4 |
32.0 |
48.0 |
125 |
1820 |
502 |
7280 |
20 |
0.209 |
2.05 |
R2-38 |
1 1/2 |
38.0 |
55.0 |
90 |
1310 |
361 |
5240 |
20 |
0.2509 |
2.511 |
R2-51 |
2 |
50.8 |
68.6 |
80 |
1160 |
320 |
4640 |
20 |
0.3796 |
3.165 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

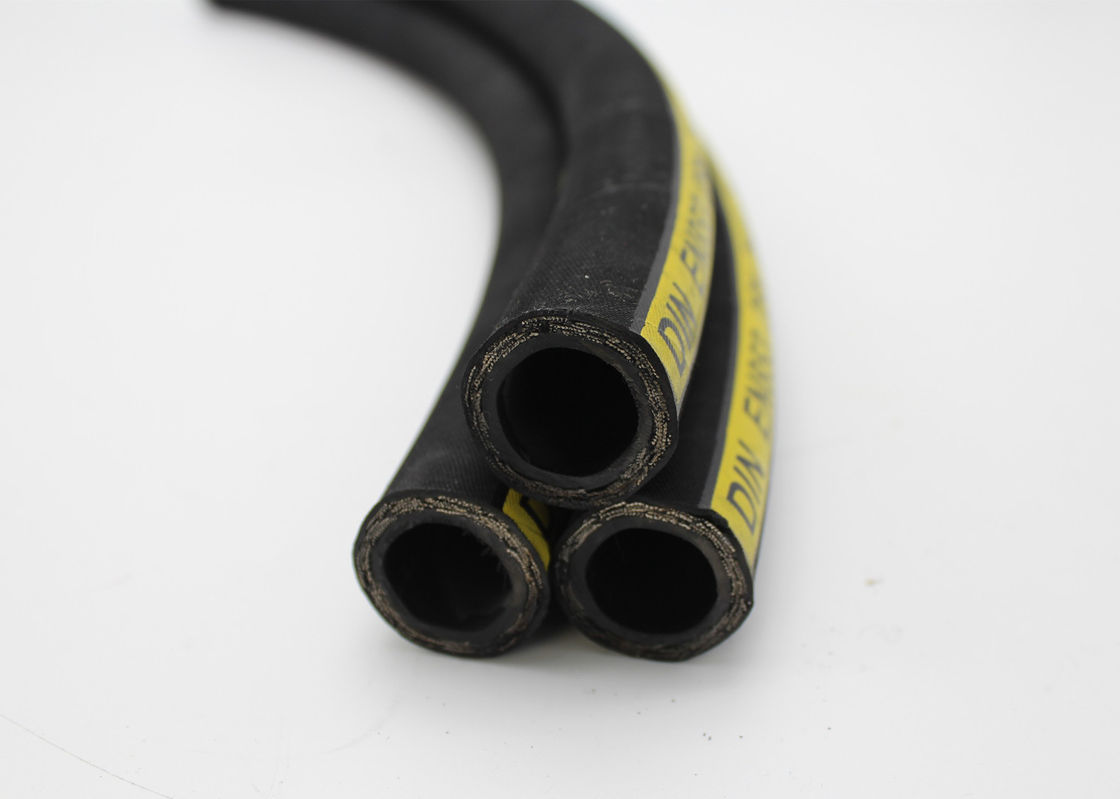

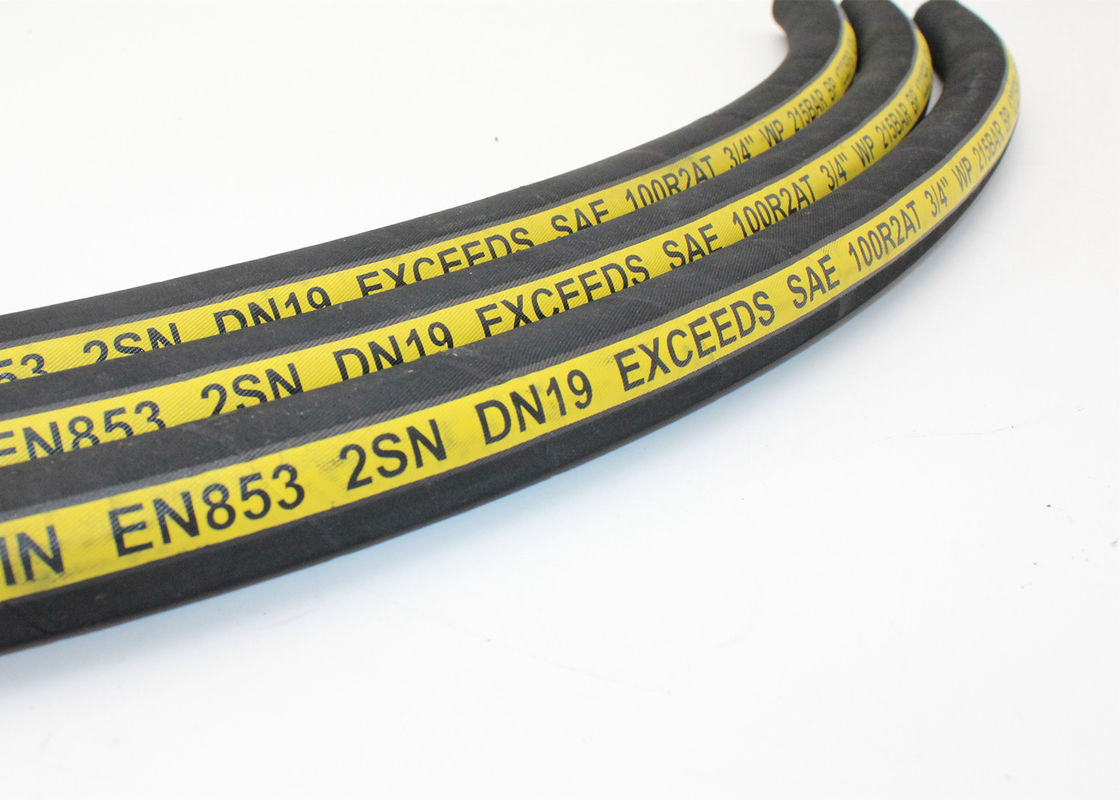

Hydraulic Hose SAE 100 R2 AT / EN 853 2SN:
Plant of Hydraulic Hose:
Application of Hydraulic Hose:
Competitive Advantage:
We are professional manufacturer and exporter of rubber hose in China.
It is excellent in quality and competitive in price.
The rubber material is without reclaimed rubber. The working time of our hydraulic hose is
considerable. We have professional testing machines of aging box, hardness tester, tensile
tester, etc. The exact testing report can be sent to our customers.
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
The hydraulic hoses R2 can be made in both smooth surface and cloth wrapped surface.
