Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
SAE 100 R1 AT/EN 853 1SN
Video
Hydraulic Rubber Hose Pipe , SAE 100 R1 AT , I.D. 1/4" , Smooth Surface
Description:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 20m , 50m or 100m / roll.
Specifications:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
0.0425 |
0.20 |
|
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
|
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
|
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
|
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
|
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
|
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
|
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
|
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
|
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
|
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

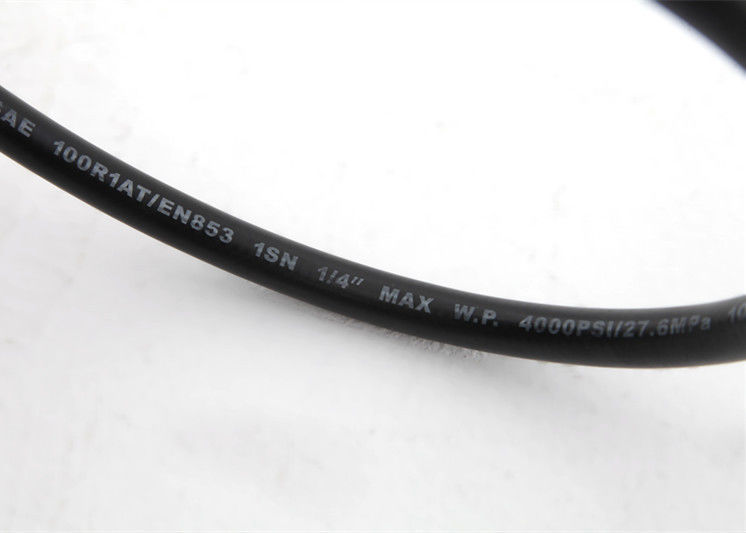

Smooth Surface Hydraulic Hose SAE 100 R1 AT / EN 853 1SN" 1/4":
Plant of Hydraulic Hose:
Application for Hydraulic Hose:
Competitive Advantage:
We are professional manufacturer and exporter of rubber hoses in China. It is excellent in quality and competitive in price.
The rubber material is without reclaimed rubber. The working time of our hydraulic hose is
considerable. We have professional testing machines of aging box, hardness tester, tensile
tester, etc. The exact testing report can be sent to our customers.
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
The hydraulic hoses R1 can be made in both smooth surface and cloth wrapped surface.
We also supply hose protector for our customers.
