Product Details
Place of Origin: Zhejiang China
Brand Name: PASSION
Certification: ISO 9001-2008, CE
Model Number: SAE 100 R1 AT/EN 853 1SN
Payment & Shipping Terms
Minimum Order Quantity: 500m
Price: Negotiated
Packaging Details: Packed in weaving strip, it also can be packed as per your requirement,
Delivery Time: Within 30 days after we receive advance payment
Payment Terms: T/T, L/C, Western Union, Paypal, MoneyGram
Supply Ability: 30,000m per month
Product Name: |
High Pressure Hydraulic Hose |
Size: |
1" |
Color: |
Black, Blue, Grey, Etc. |
Standard: |
SAE/DIN |
Surface: |
Cloth Wrapped |
Temperature: |
-40°C~ +100°C |
Length: |
100m,50m,40m,20m |
Inner Tube: |
NBR |
Cover: |
Neoprene |
Reinforcement: |
A Single High-tensile Steel Wire Braided |
Product Name: |
High Pressure Hydraulic Hose |
Size: |
1" |
Color: |
Black, Blue, Grey, Etc. |
Standard: |
SAE/DIN |
Surface: |
Cloth Wrapped |
Temperature: |
-40°C~ +100°C |
Length: |
100m,50m,40m,20m |
Inner Tube: |
NBR |
Cover: |
Neoprene |
Reinforcement: |
A Single High-tensile Steel Wire Braided |
I.D. 1" High Pressure Hydraulic Pipe , SAE 100 R1 AT / EN 853 1SN
Description:
Construction:
Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 20m
Specifications:
|
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
0.0425 |
0.20 |
|
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
|
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
|
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
|
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
|
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
|
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
|
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
|
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
|
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
|
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

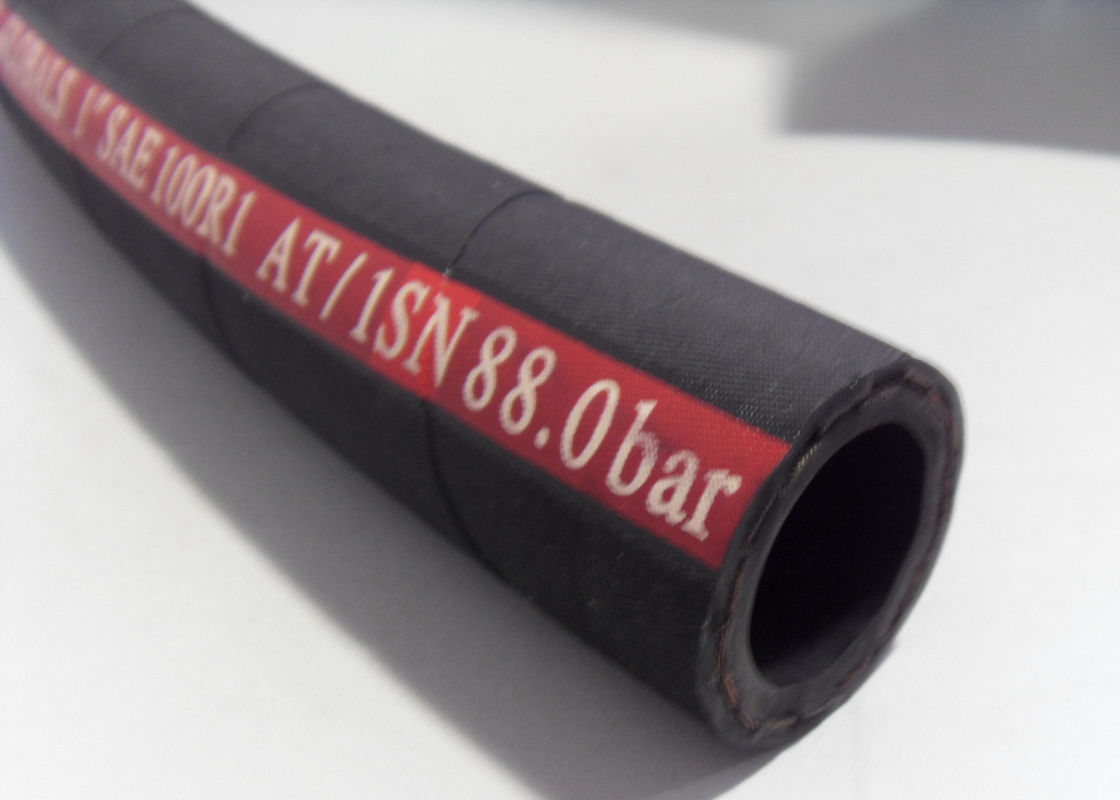

Printing on the Hydraulic Hose DN25 1":
Plant of Hydraulic Hose:
Application of Hydraulic Hose:
Competitive Advantage:
We are professional manufacturer and exporter of rubber hoses in China. It is excellent in quality and competitive in price.
The rubber material is without reclaimed rubber. The working time of our hydraulic hose is
considerable. We have professional testing machines of aging box, hardness tester, tensile
tester, etc. The exact testing report can be sent to our customers.
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
The hydraulic hoses R1 can be made in both smooth surface and cloth wrapped surface.
We also supply hose protector for our customers.
