Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2008, CE
Model Number:
ID 3/16” to 2”
Contact Us

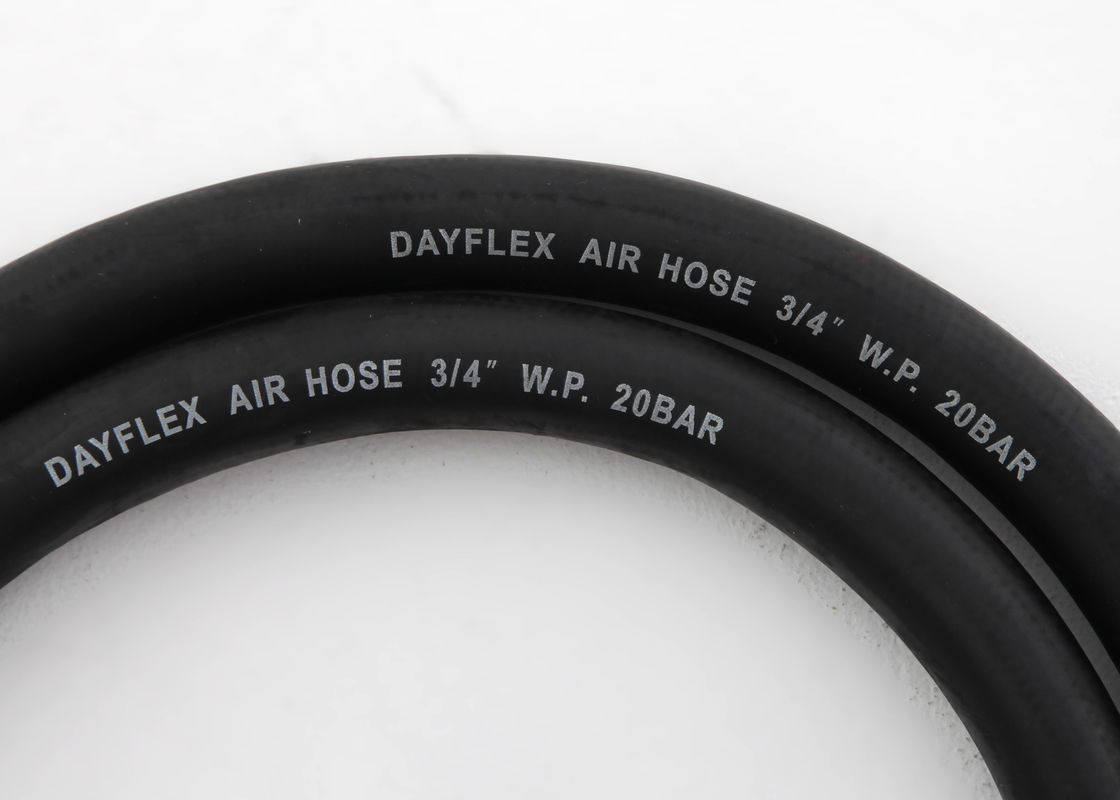

Flexible Smooth Surface Rubber Air Hose ID 3/16” to 2” Work Pressure 20 Bar
Specifications:
|
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
|
PRA-05 |
3/16" |
5 |
11.5 |
20 |
300 |
60 |
900 |
100 |
0.02 |
0.15 |
|
PRA-06 |
1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.025 |
0.17 |
|
PRA-08 |
5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.03 |
0.22 |
|
PRA-10 |
3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.04 |
0.26 |
|
PRA-13 |
1/2" |
13 |
21 |
20 |
300 |
60 |
900 |
100 |
0.07 |
0.4 |
|
PRA-16 |
5/8" |
16 |
24 |
20 |
300 |
60 |
900 |
50 |
0.06 |
0.45 |
|
PRA-19 |
3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.07 |
0.7 |
|
PRA-25 |
1" (1b) |
25 |
36 |
12 |
180 |
36 |
540 |
50 |
0.09 |
0.85 |
|
PRA-25-2 |
1" (2b) |
25 |
37 |
20 |
300 |
60 |
900 |
50 |
0.1 |
0.95 |
|
PRA-32 |
1-1/4" |
32 |
44 |
10 |
150 |
30 |
450 |
50 |
0.16 |
1.4 |
|
PRA-38 |
1-1/2" |
38 |
51 |
10 |
150 |
30 |
450 |
50 |
0.20 |
1.7 |
|
PRA-51 |
2" |
51 |
65 |
10 |
150 |
30 |
450 |
20 |
0.20 |
2.2 |
Description:
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Standard length: 50m, 100m.
Applications:
Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding,
steel production etc.
Competitive Advantage:
PASSION® Rubber air hose, is popular in USA, Canada market, made of non-recycled rubber, according
to ISO-2398 standard.Hangzhou Paishun can crimp the specified fittings and quick released coupling on
the rubber air hose.If you have some special request of size, Hangzhou Paishun can also customize for
you.
