Place of Origin:
Zhejiang China
Brand Name:
PASSION
Certification:
ISO 9001-2015, CE, MSHA
Model Number:
SAE 100 R2 AT/EN 853 2SN
Contact Us
Video

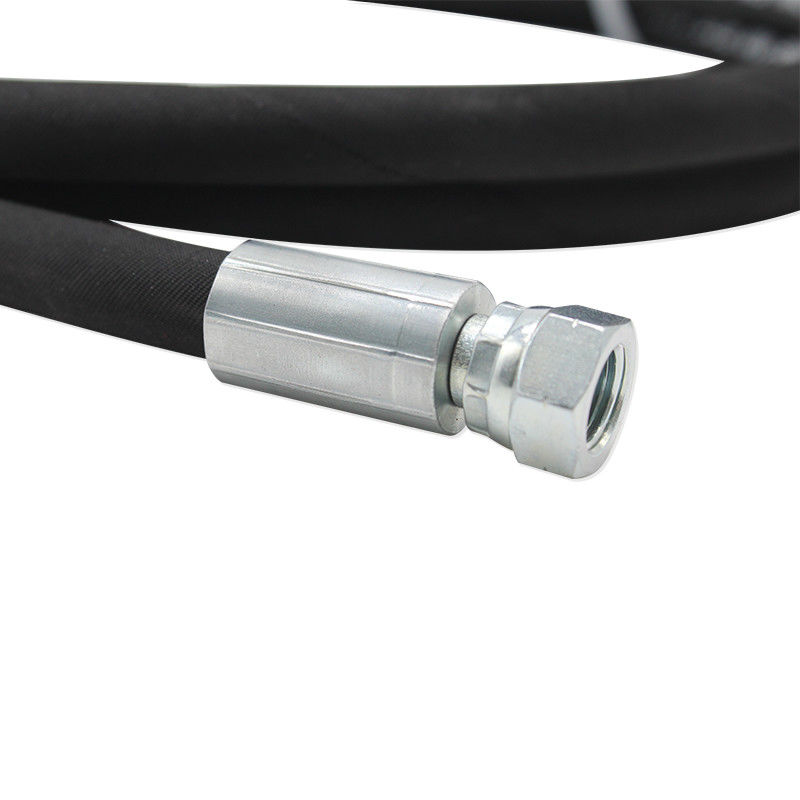

High Pressure Hydraulic Hose Assembly SAE 100 R2 AT / EN 853 2SN
Construction:
It is hydraulic hose in wrapped surface. Usually, it is can be made for one wire and two wires braided hydraulic hose.
Tube: NBR synthetic rubber.
Reinforcement: Two layers of high-tensile steel wire braided.
Cover: NBR oil and weather-resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black
Standard length: 20m, 40m, 50m or 100m / roll.
Specifications:
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
| R2-06 | 1/4 | 6.4 | 15.5 | 400 | 5800 | 1600 | 23200 | 100 | 0.0514 | 0.37 |
| R2-08 | 5/16 | 8.0 | 16.5 | 350 | 5075 | 1400 | 20300 | 100 | 0.0612 | 0.412 |
| R2-10 | 3/8 | 9.5 | 19.2 | 330 | 4785 | 1320 | 19140 | 100 | 0.0784 | 0.53 |
| R2-13 | 1/2 | 12.7 | 21.8 | 275 | 3988 | 1100 | 15950 | 100 | 0.0833 | 0.64 |
| R2-16 | 5/8 | 16.0 | 25.5 | 250 | 3630 | 1001 | 14520 | 50 | 0.074 | 0.77 |
| R2-19 | 3/4 | 19.0 | 29.5 | 215 | 3120 | 860 | 12480 | 50 | 0.0833 | 0.96 |
| R2-25 | 1 | 25.4 | 38.1 | 165 | 2400 | 662 | 9600 | 50 | 0.1445 | 1.35 |
| R2-32 | 1 1/4 | 32.0 | 48.0 | 125 | 1820 | 502 | 7280 | 20 | 0.209 | 2.05 |
| R2-38 | 1 1/2 | 38.0 | 55.0 | 90 | 1310 | 361 | 5240 | 20 | 0.2509 | 2.511 |
| R2-51 | 2 | 50.8 | 68.6 | 80 | 1160 | 320 | 4640 | 20 | 0.3796 |
3.165 |
Application:
Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.
Crimping:
Excellent FINN-POWER FP120 Crimping Machine
There are several advantages compared to domestic crimping machines:
