Flexible 20 Bar PVC Blend Rubber Fuel Bowser Hose For Gas Stations

Flexible 20 Bar PVC Blend Rubber Fuel Bowser Hose For Gas Stations

NBR Tube Flexible Fuel Filler Hose

PVC Blend Rubber Fuel Bowser Hose

20 Bar Fuel Bowser Hose

Place of Origin:

Zhejiang (CHINA)

Brand Name:

PASSION

Certification:

ISO 9001-2008, CE

Model Number:

3/4", 5/8", 1"

Contact Us

Request A Quote
Product Details
Tube:
NBR
Cover:
NBR-PVC Blend Rubber
Reinforcement:
Static Wire
Sizes:
5/8", 3/4", 1"
Application:
Fuel Dispenser Gas Station
Standard Length:
50meters/ Roll, 4meters, 6meters, 8meters, 10meters
Color:
Blue, Black, Red, Yellow And Green Etc
Working Pressure:
30 Bar
Bursting Pressure:
120bar
Flexibility:
Excellent Flexible
Export To Countries:
Columbia, Brazil, Spain, UK, Austrail, New Zealand, New Zealand, The Philippines, Thailand
Electrical Conductivity:
Good
Sample:
Free Sample Can Be Available
Couplings:
BSP, BSPT, NPT
Name:
Ozone Resistant Gasoline Resistant Anti-Static RubberFuel Bowser Hose For Service Station
Package:
Well Packed By Braided Strips
Product Name:
Ozone Resistant Gasoline Resistant Anti-Static RubberFuel Bowser Hose For Service Station
Surface:
Finish Surface
Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
3/4" - 2.1USD/m 1" - 2.5USD/m
Packaging Details
Well packed by good and thick braided strips for export.
Delivery Time
within 25 days after we have received your advanced payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150000m/month
Product Description

Flexible Filling Station Hose 20 Bar Fuel Bowser Hose For Gas Stations





To visitor: If you are a distributor and Retailer of GASOLINE DISPENSER HOSE or Supplier of spare parts to petroleum companies, you are welcome to contact us for a product selection form and price list.



We have successfully helped our partners in many countries to develop the market for GASOLINE DISPENSER HOSE, have a wealth of industry experience, and look forward to your enquiry. If you can describe your business ideas through an inquiry, we have more commercial support resources specifically for distributors.



Flexible Filling Station Hose 20 Bar Fuel Bowser Hose For Gas Stations



Hose Constructure:



Tube: NBR

Reinforcement: Single High-strength wire braided.

Cover: NBR / PVC blend rubber



Temperature: -40℃ to +80℃



Color: Black, Yellow, Red, Blue, Green or according to your needs.



Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.



Standard length: 20m, 50m (Random Length in roll); 4meters, 6meters, 8meters, 10 meters in pieces......



Superiority:  Very Good Flexibility, will not get hard easily even after using for a long; Strong ageing resistance; Not easy to creak even under high environment temperature; Good gasoline resistance; Excellent anti-static electricity; Safe; At the same quality level as Good year.



Quality warranty: The Quality warranty for our Hose is 12months.

But in real application, if you use it under correct conditions, there's no problem to use for 24months.



Specifications



Item code Inner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight
  inch mm mm bar psi bar psi m cbm/roll kg/m
HPR-1  5/8’’ 15.9 25.4 30 450 120 1740 50 0.07 0.57
HPR-2  3/4’’ 19 28 30 450 120 1740 50 0.08 0.65
HPR-3  1’’ 25 35.5

30

450 120 1740 50 0.124 0.82





Why Fuel Dispenser Hose can not be replaced by normal Hydraulic Hose (Such as SAE
100R1)?



Fuel Dispenser Hose: Normal Hydraulic Hose:
NBR content: 42% NBR content: 33%
Inner Rubber: Thicker Inner Rubber: Thinner
More Flexible Less Flexible



High NBR content, thicker inner tube and special formular make fuel dispenser hose strongly resist gasoline / alcohol blends gasoline;

Normal hydraulic hose is for petroleum base hydraulic fluids, it is not suitable for gasoline / alcohol blends gasoline.

If clients use normal hydraulic hose to replace fuel dispenser hose and use them in service station, the life time will be largely shortened.



Why Choose Hangzhou Paishun ?

  • excellent flexibility
  • good aging resistance, ozone resistance
  • light-weight and easy to handle
  • nice appearance
  • long usage life

Advanced Compounding PVC / Rubber Outer Tube: The revolutionary new rubber / pvc compound material that is incredibly ozone-resistant, colorfast and unlike anything ever seen in the petroleum dispensing hose industry. And also the appreance looks nicer.

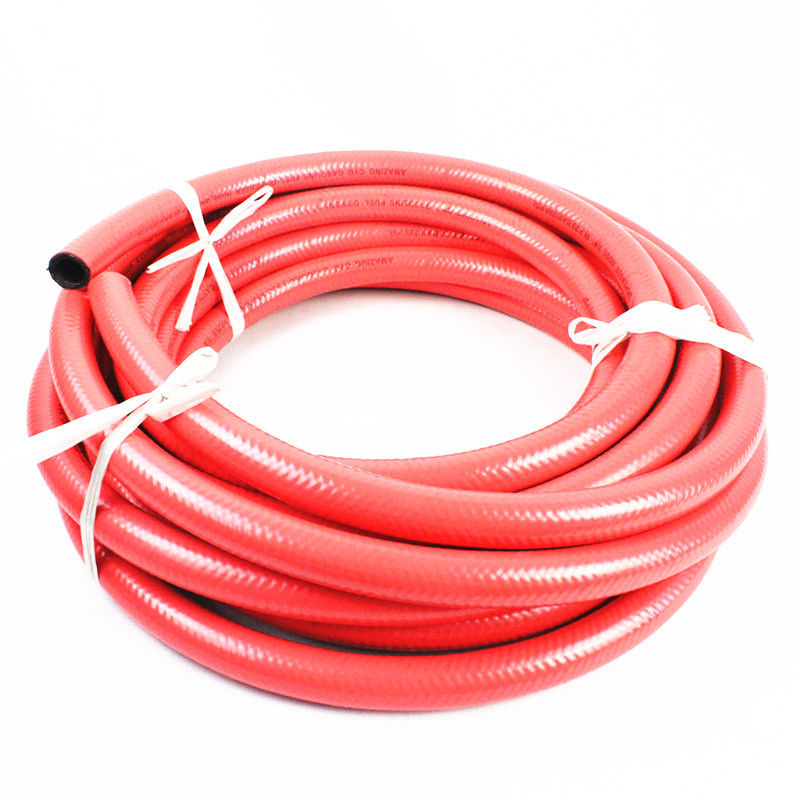

Flexible 20 Bar PVC Blend Rubber Fuel Bowser Hose For Gas Stations 0
