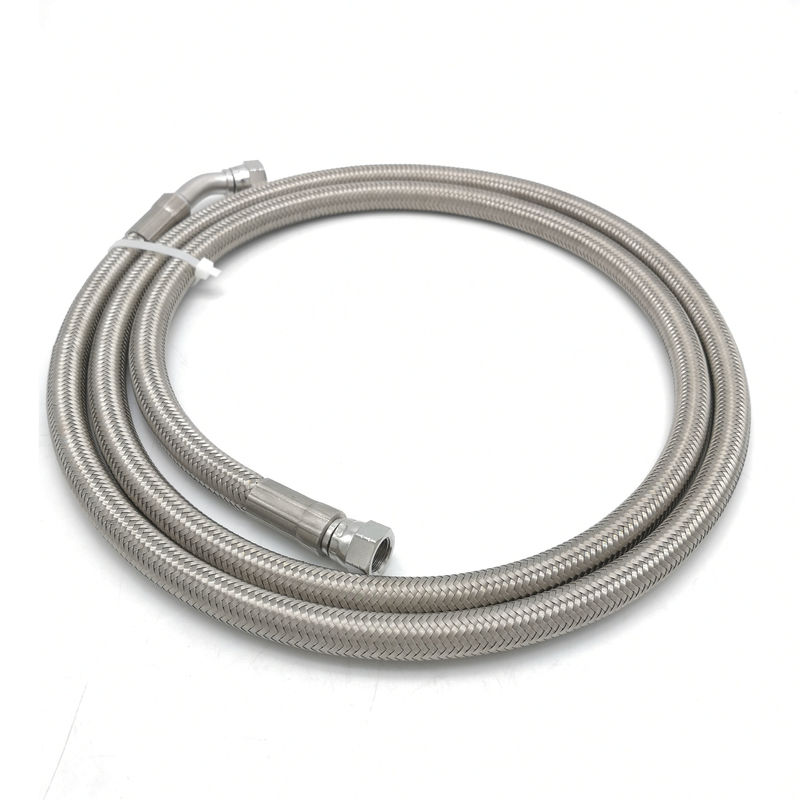

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose

  • High Light

    3/8" Corrugated PTFE Hose

    ,

    Braided Corrugated PTFE Hose

    ,

    ptfe stainless steel braided hose

  • Inner Tube
    Corrugated PTFE
  • Cover
    SS304 Wire Braided
  • I.D.
    3/8"
  • Length
    2 Meters
  • Connector
    SS304
  • Thread Of Connector
    JIC Female 06
  • Place of Origin
    China
  • Brand Name
    PAISHUN
  • Certification
    ISO9001
  • Model Number
    P04-R14
  • Minimum Order Quantity
    200PCS
  • Price
    Negotiated
  • Packaging Details
    woven strips wrapped / pallets, carton, reel or customized
  • Delivery Time
    15~20 days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    100,000 meter per month

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose



Character of PTFE
The PTFE hose material is made of Japanese Daikin.
The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.
PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:
1. Excellent weather resistance, long service life, no brittle fracture and no aging.
2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.
3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
4. With a very low friction coefficuent. non-flammable.
5. With very low evaporate transpiration rate, cold liquid is not volatile.
6. With excellent electrical charateristics (does not change with frequency and temperature changes)
7. Excellent mechanical properties, shock resistance and flexibility.




Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose 0



Inner tube: corrugated PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Advantage:
high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion





no Specification I.D. O.D. Thickness W.P. B.P. Min.Bending Radius
mm mm mm bar bar mm
1 1/4 6.4 11.5 0.8 150 400 20
2 5/16 8 12.3 0.65 130 365 25
3 3/8 10 14.2 0.65 125 350 33
4 1/2 13 17.2 0.85 110 330 42
5 5/8 16 21.6 0.9 80 245 50
6 3/4 19 25.3 1 70 215 63
7 1 25 31 1 50 150 79
8 1 1/4 32 39 1.1 45 140 125
9 1 1/2 38 45 1.45 43 120 145
10 2 50 60 1.5 35 100 180

PTFE Hose Assembly

We can crimp the hose assembly in our factory.
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose 1

Application
High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liqids, gases and highly corrosive media with laternating hot and cold heat, it has better performance and longevity than other hoses.

-Flamethrower
-Air Compressor

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose 2

Stainless Steel Braided 8AN 3/8" Corrugated PTFE Hose 3
