Place of Origin:
Zhejiang, China
Brand Name:
PASSION
Certification:
CE, ISO 9001:2015, MSHA
Model Number:
EN853 2SN
Video
Why Choose Paishun?
1. Over 10 years experience of producing hydraulic hoses. Near to Ningbo and Shanghai port, easy to transport.
2. Free Sample available.
3. Factory sale, prices are competitive.
4. Sizes can be customized as your request.
5. OEM acceptable, your company name and logo can be printed.
6. Customized packing method. By rolls, pallets, reels or as your request.
7, Complete line of test machines, test every batch of goods before shipped out. Quality is stable.
R2/2SN Hose
Application: For delivery of petroleum and water based hydraulic fluids.
Inner tube: Oil resistant synthetic rubber.
Reinforcement: Two layers tensile steel wire braid.
Outer cover: Oil, weather, and abrasion resistant synthetic rubber.
Temperature Range: -40℃ ~ +100℃ (-40℉ ~ +212℉)
Specification of R2/2SN Hose
| Part Number | Size | ID | WD | OD | WP | BP | Min Bend Radius | Weight | ||
| inch | mm | mm | mm | bar | psi | bar | psi | mm | g/m | |
| P03-2SN | 3/16″ | 4.8 | 11.7 | 13.7 | 415 | 6018 | 1650 | 23925 | 90 | 300 |
| P04-2SN | 1/4″ | 6.4 | 12.5 | 14.5 | 400 | 5800 | 1600 | 23200 | 100 | 380 |
| P05-2SN | 5/16″ | 8 | 14.5 | 16.7 | 350 | 5075 | 1400 | 20300 | 115 | 435 |
| P06-2SN | 3/8″ | 9.5 | 16.6 | 19.2 | 330 | 4785 | 1320 | 19140 | 125 | 550 |
| P08-2SN | 1/2″ | 12.7 | 19.8 | 21.8 | 275 | 3988 | 1100 | 15950 | 180 | 640 |
| P10-2SN | 5/8″ | 16 | 23.2 | 25.4 | 250 | 3625 | 1000 | 14500 | 205 | 750 |
| P12-2SN | 3/4″ | 19 | 26.9 | 29.9 | 215 | 3118 | 850 | 12325 | 240 | 925 |
| P16-2SN | 1″ | 25.4 | 34.2 | 37.8 | 165 | 2393 | 650 | 9425 | 300 | 1290 |
| P20-2SN | 1 1/4″ | 31.8 | 43.8 | 46.4 | 125 | 1813 | 500 | 7250 | 420 | 1895 |
| P24-2SN | 1 1/2″ | 38.1 | 50.2 | 52.7 | 90 | 1305 | 360 | 5220 | 500 | 2120 |
| P32-2SN | 2″ | 50.8 | 62.8 | 65.4 | 80 | 1160 | 320 | 4640 | 630 | 2765 |
| P40-2SN | 2 1/2″ | 63.5 | 75.4 | 79.0 | 69 | 1000 | 276 | 4000 | 762 | 3730 |
| P48-2SN | 3″ | 76.2 | 87.8 | 91.3 | 50 | 725 | 200 | 2900 | 900 | 3950 |
You can also download the specification below.

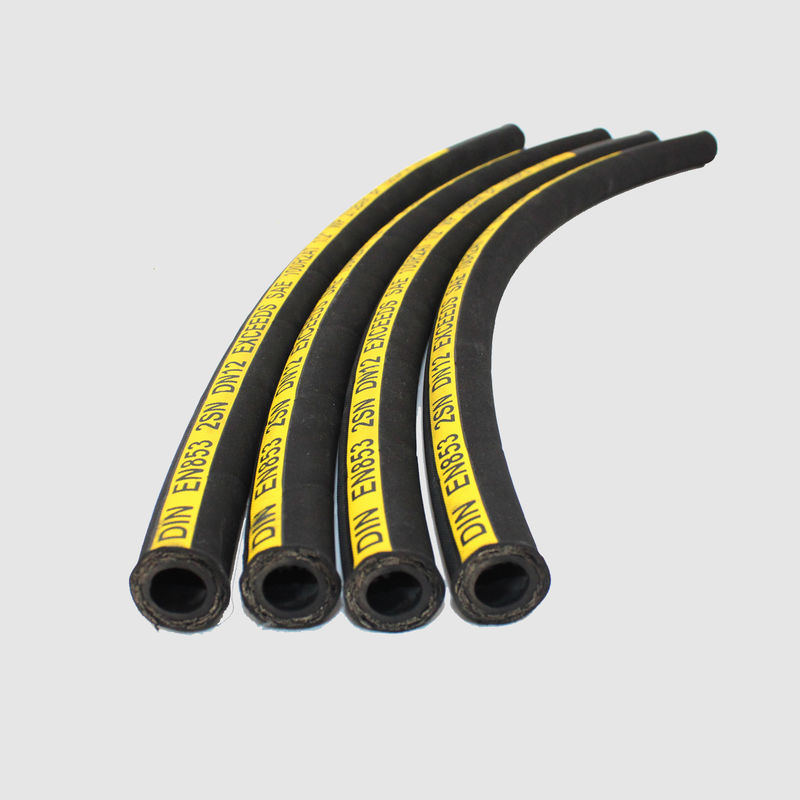

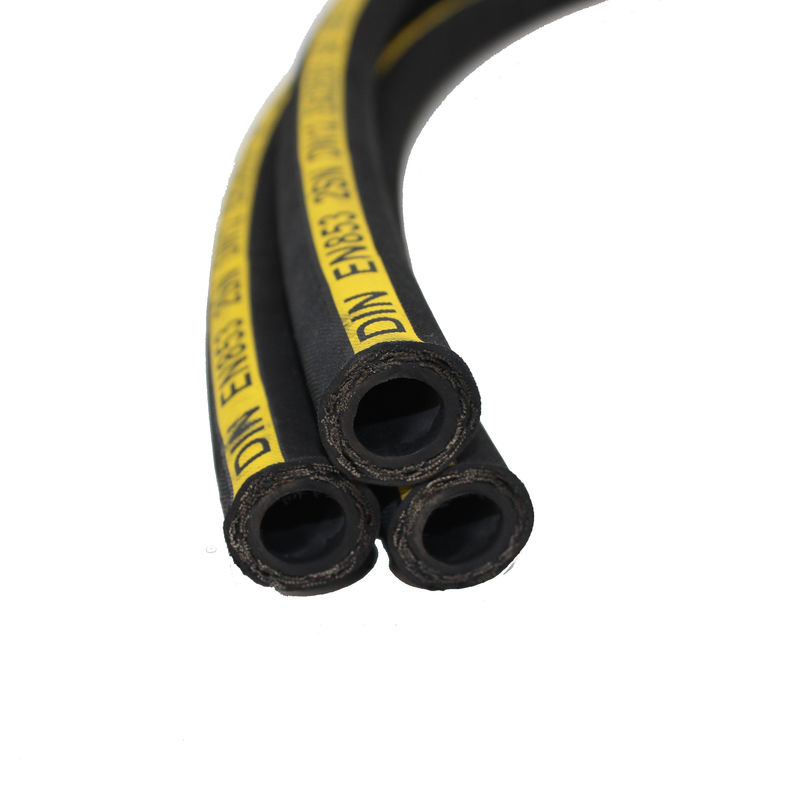

Photo of SAE R2/2SN Hose
Packing and Shipping
Goods are well packed by colorful poly stripes or transparent OPP films.
Can be shipped by air, by sea, by truck and by train.
Paishun can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.
Workshop
Application
For construction machinery equipment such as excavator, roller, forklift, etc.
RELATIONSHIPS
Long term business relationships are of upmost importance to us at Paishun. With our roots planted
as a manufacturer, we take the time to learn about your business and your individual needs so we
can provide better service to you. We pride ourselves on maintaining long term business relationships
and understand that it takes time to build trust in new ones.
QUALITY
Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed
with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized
environment. This allows us to guarantee your hoses are produced promptly and efficiently.
SHORT LEAD TIMES
We have continually made improvements to our manufacturing process over 12+ years. We've implemented
lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth
and streamlined our supply chain process in order to respond quickly to market change. All with the goal to
decrease lead time and improve quality.
INVENTORY MANAGEMENT
A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand
how important production scheduling and inventory flow are to your business. We will work with you on
an individual basis and will process blanket orders to assist with your inventory level. All of our materials
are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality
standard.
Paishun Fairs
Please feel free to contact us for any question or request!
PASSION FOR HOSE, PASSION FOR YOU!!!
Send your inquiry directly to us
