DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery

DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery

Products - High Pressure Hydraulic Hose
  • High Light

    Hydraulic Rubber Hose

    ,

    High Pressure Hydraulic Pipe

  • Application
    For Delivery Of Petroleum Or Water Base Hydraulic Fluids.
  • Inner Tube
    Synthetic Rubber NBR
  • DN
    13
  • Certification
    ISO 9001:2015, CE, Rohs
  • Temperature Range
    -40℃ ~ +100℃ (-40°F ~ +212°F)
  • Color
    Black, Blue, Gray Or As Your Request
  • Braid
    Two High Strength Steel Wire
  • Usage
    For Construction Heavy Machinery
  • Printing
    Our Logo Or As Requested
  • Inner Diameter
    12.7
  • Outer Diameter
    21.8
  • Place of Origin
    Zhejiang, China
  • Brand Name
    PASSION
  • Certification
    CE, ISO 9001:2015, Rohs
  • Model Number
    SAE 100R2 / EN853 2SN
  • Minimum Order Quantity
    300 meters
  • Price
    Negotiable
  • Packaging Details
    Poly stripes, pallets, reels or as your request.
  • Delivery Time
    25 days
  • Payment Terms
    T/T, L/C, Money Gram, PayPal, Western Union, MoneyGram, etc.
  • Supply Ability
    500,000 meters per month

DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery

  • DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery
  • DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery
  • DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery
  • DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery
  • DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery
Get Price Contact Now


DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose for Heavy Machinery


Paishun Advantage


1. Over 10 years experience of producing hydraulic hoses. Near to Ningbo and Shanghai port, easy to transport.
2. Free Sample available.
3. Factory sale, prices are competitive.
4. Sizes can be customized as your request.
5. OEM acceptable, your company name and logo can be printed.
6. Customized packing method. By rolls, pallets, reels or as your request.
7, Complete line of test machines, test every batch of goods before shipped out. Quality is stable.



SAE 100R2 / EN853 2SN Hydraulic Hose

Application: For delivery of petroleum and water based hydraulic fluids. Can be used on heavy machinery.

Inner tube: Oil resistant synthetic rubber. (NBR)

Reinforcement: Two layers tensile steel wire braid.

Outer cover: Oil, weather, and abrasion resistant synthetic rubber. (NBR)

Temperature Range: -40℃ ~ +100℃ (-40℉ ~ +212℉)

Specification



Part Number Size ID WD OD WP BP Min Bend Radius Weight
inch mm mm mm bar psi bar psi mm g/m
P03-2SN 3/16″ 4.8 11.7 13.7 415 6018 1650 23925 90 300
P04-2SN 1/4″ 6.4 12.5 14.5 400 5800 1600 23200 100 380
P05-2SN 5/16″ 8 14.5 16.7 350 5075 1400 20300 115 435
P06-2SN 3/8″ 9.5 16.6 19.2 330 4785 1320 19140 125 550
P08-2SN 1/2″ 12.7 19.8 21.8 275 3988 1100 15950 180 640
P10-2SN 5/8″ 16 23.2 25.4 250 3625 1000 14500 205 750
P12-2SN 3/4″ 19 26.9 29.9 215 3118 850 12325 240 925
P16-2SN 1″ 25.4 34.2 37.8 165 2393 650 9425 300 1290
P20-2SN 1 1/4″ 31.8 43.8 46.4 125 1813 500 7250 420 1895
P24-2SN 1 1/2″ 38.1 50.2 52.7 90 1305 360 5220 500 2120
P32-2SN 2″ 50.8 62.8 65.4 80 1160 320 4640 630 2765
P40-2SN 2 1/2″ 63.5 75.4 79.0 69 1000 276 4000 762 3730
P48-2SN 3″ 76.2 87.8 91.3 50 725 200 2900 900 3950



Specification of Hydraulic Hose SAE 100R2 EN853 2SN.pdf

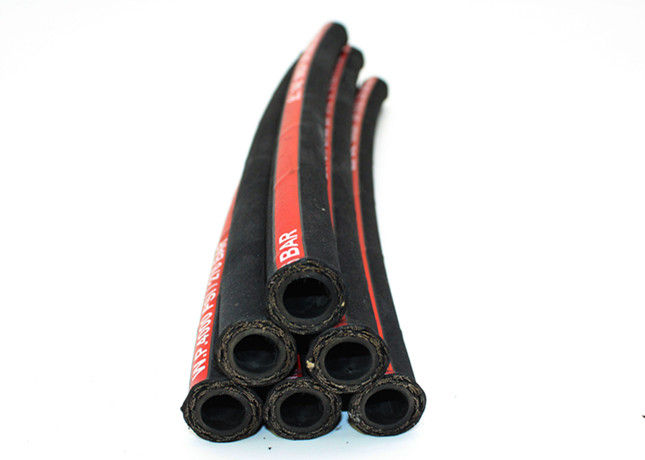

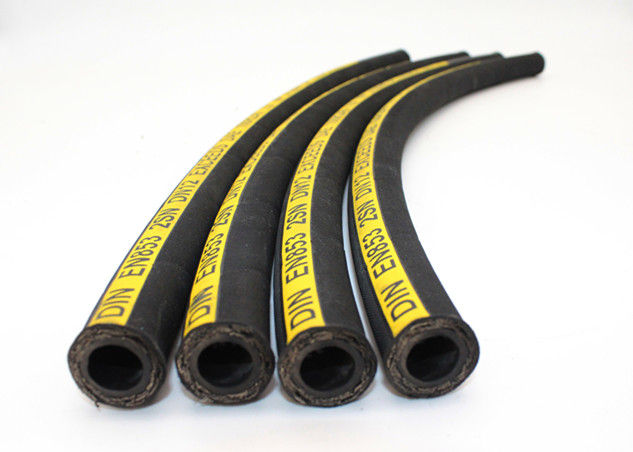

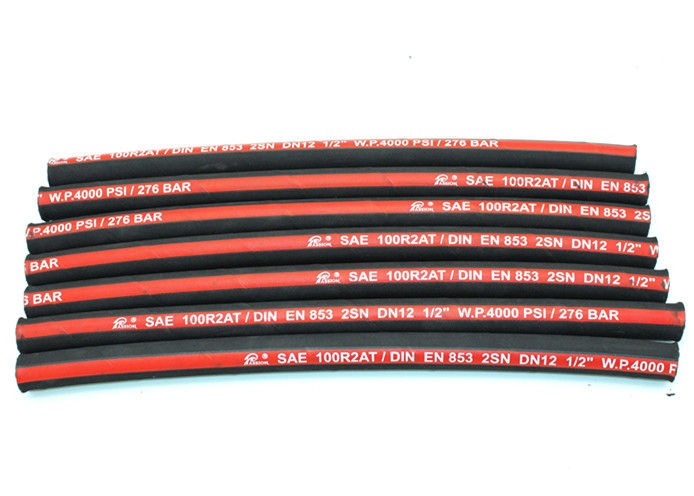

Photo of SAE R2/2SN Hose

DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery 0


Packing and Shipping
Goods are well packed by colorful poly stripes or transparent OPP films. Carton boxes, reels, and pallets are also available.
Can be shipped by air, by sea, by truck and by train.
Paishun can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.
DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery 1

Application

For construction heavy machinery equipment such as excavator, roller, forklift, etc.

DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery 2

Paishun Staff at Exhibition
 DN13 ID1/2" Two Wire Braid High Pressure Hydraulic Hose For Heavy Machinery 3



Please feel free to contact us for any question or request!


PASSION FOR HOSE, PASSION FOR YOU!!!
