3/4" And 1" Petroleum Fuel Dispensing Hose For Service Station Application
Hose Construction -
Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: NBR
Temperature: -40ºC to +100ºC
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 20m, 50m (Random Length)
Specifications:
Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
HPR-1 | 5/8’’ | 15.9 | 25.4 | 30 | 450 | 120 | 1740 | 50 | 0.07 | 0.57 |
HPR-2 | 3/4’’ | 19 | 28 | 30 | 450 | 120 | 1740 | 50 | 0.08 | 0.65 |
HPR-3 | 1’’ | 25 | 35.5 |
30 |
450 | 120 | 1740 | 50 | 0.124 | 0.82 |

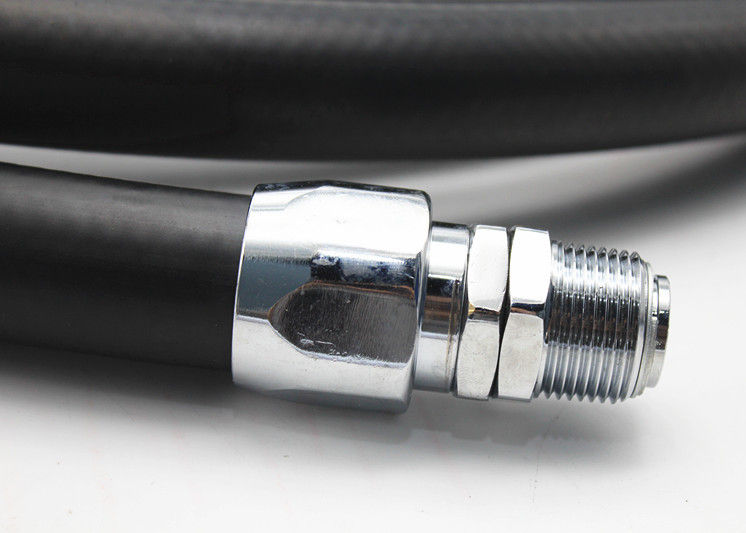

Hose Picture:
Why Paishun's fuel dispenser hose?
The revolutionary new rubber compound material makes the hose extremely resistant to Ozone.
Hose Superiorities:
1. excellent aging resistance, ozone resistance and crack resistance.
2. with color fast smooh good suface.
3. quality hose construction, quality assembly.
4. very flexible and light in weight.
5. other superiorities.
