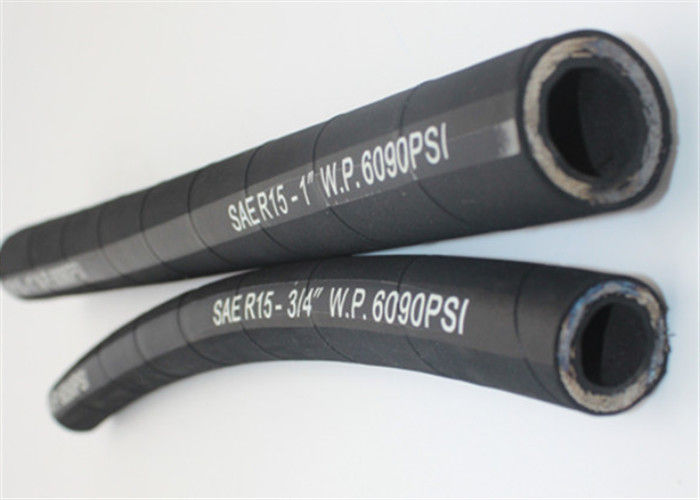

420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15

420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15

    • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
    • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
    • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
    • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
    • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
  • 420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: PASSION
    Certification: CE, ISO 9001-2008
    Model Number: SAE 100 R15

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 meters
    Price: Negotiated
    Packaging Details: Well packed by poly stripes or as request.
    Delivery Time: In 30 days after received your payment
    Payment Terms: T/T, Western Union, L/C, Money Gram, PayPal, L/C
    Supply Ability: 100,000 meters per week
    Contact Now
    Detailed Product Description
    Application: For Delivery Of Petroleum Base Hydraulic Fluids Or Water Base Liquids. Material: Seamless Oil Resistant Synthetic Rubber
    Reinforcement: 4 Spirals Of High Tensile Steel Wire. Temperature Range: -40℃ ~ +120℃ (-40℉ ~ +248℉)
    Cover: Cloth Surface Working Pressure: 420 Bar
    Bursting Pressure: 1680 Bar OEM: YES
    Color: Black, Blue Or As Your Request.



    420 bar Cloth Surface ID 3/8 - 2" SAE 100 R15 Four Wire Spiral Reinforced Hydraulic Rubber Hose


    Why Choose Us



    * Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
    * Free hose sample.
    * OEM accepted.
    * We can print words and your logo on the hose as your request.
    * We test the products before shipped out. We have complete line of test machines.
    * We can also get you fittings or assembly.

    * Well packed by poly stripes or as your requirement.

    * We ship the goods by express, by air, by sea or according to your requirement.



    Detail Information of Product



    Name SAE 100R15
    Material Seamless oil resistant synthetic rubber
    Certification CE approved.
    Size 3/8"~1-1/2"
    Color Black
    Temperature Range -40ºC~+120ºC
    Working Pressure 420bar
    Burst Pressure 1680bar
    Reinforcement 4 or 6 spirals of high-tensile steel wire.
    Surface cloth wrapped or smooth surface
    Capability/Feature Oil resistant, abrasion resistant, anti-aging.
    Length 100m or 50m per roll.
    Telerance 0.05mm
    Application For delivery of petroleum basehydraulic fluids or water base liquids.
    Package Well packed by poly stripes or as your requirement.
    Delivery According to your quantity, about 35 days for a 20' container.



    Specification of Product



    Item Code Inner Diameter Max Outer Diameter Max Working Pressure Min Burst Pressure Length Weight
    inch mm bar bar m kg/m
    PR15-06 3/8'' 23.3 420 1680 50 0.80
    PR15-08 1/2'' 26.8 420 1680 50 0.85
    PR15-12 3/4'' 36.1 420 1680 50 1.85
    PR15-16 1'' 42.9 420 1680 50 2.90
    PR15-20 1-1/4'' 51.5 420 1680 20 4.20
    PR15-24 1-1/2'' 59.6 420 1680 20 5.60



    Package of Product

    420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15



    Other Products

    420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15
    Our Services

    1.We can provide matching hose connection.
    2.We can provide free hose sample.
    3.Other kinds of rubber hoses are also served.
    4.Other sizes can be customized.
    5.We can print words on the hose according to your requirement.
    6.We can package the goods according to your requirement.



    Paishun Factory

    420 bar Cloth Surface 4 Wire Hydraulic Hose ID 3/8 - 2" SAE 100 R15



    Paishun Tips: Storage Conditions

    Outline

    If the rubber hose is exposed to some factors under improper environment during storage, the physical properties of hose and hose assembly will change, which will deprive the hose of optimal performance during operation and lead to earlier aging. The storage in line with the specification is able to provide optimal protection for the hose.

    Storage period

    The storage period of the hose should be shortened as much as possible. In case of failure of short time storage, the hose must be marked with the time of warehousing and follow the principle of first-in first-out and checked before use. The longest storage period is 24 months.

    Temperature

    Keep the storage temperature within the range 0~35°C, the optimum temperature is 15°C. The storage temperature should not exceed 50°C or be below -30°C, there must not be abnormal fluctuation, otherwise it may accelerate the aging of the hose.

    Humidity

    Relatively humidity should not be more than 65%.

    Illumination

    The hose should be far from sunlight and strong artificial light source. The windows of warehouse should have shading dark glass to avoid outer illumination.

    Ozone

    As Ozone is harmful to rubber hose, there must not be the equipment that may produce ozone in the warehouse, e.g. Mercury vapor lamp, high-voltage equipment, running motor or other equipment that may cause electric spark or electric charge.

    Environment

    Rubber hose should bot contact the following material, e.g. Solvent, oil, acid-base and disinfector etc, or not be exposed to steam.

    Electromagnetic Field

    There must be equipments that may produce electromagnetic field near the warehouse, because the variation and fluctuation of electromagnetic field will induce current in the metal joint, which will make hose heat up.

    Stacking Method

    Rubber hose should be stored in case of bearing excessive stress, stretching or the way that may lead to deformation, and not contact sharp, pointed objects or the surface of corrosive objects. The coiled hose should be placed flatwise. And the stack height should not lead to deformation of hose at the bottom.
