En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines

En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines

    • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
    • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
    • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
    • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
    • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
  • En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: PASSION
    Certification: ISO 9001-2008, CE
    Model Number: EN856 4SH 4SP

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 meters
    Price: Negotiated
    Packaging Details: Well packed by poly stripes or as your request.
    Delivery Time: Usually in 30 days after received your payment.
    Payment Terms: T/T, L/C, Money Gram, PayPal, lWestern Union
    Supply Ability: 250,000 meters per month
    Contact Now
    Detailed Product Description
    Material: Seamless Oil Resistant Synthetic Rubber Layers: Four High Tensile Steel Wire
    Temperature Range: -40℃ ~ +120℃ OEM: Yes. We Can Mark Your Logo On The Hose.
    Inner Tube: Seamless Oil Resistant Synthetic Rubber Outer Cover: Oil, Weather And Abrasion Resistant Synthetic Rubber
    Standard: EN856 Fittings: Crimped Hose Fittings 2 Series With Ferrule 00400 Series.

    En 856 4sh 4sp Four Layers Wire Spiral Reinforced Very High Pressure Hydraulic Rubber Hose for Industrial Machines





    Specification



    Part In Hose Size ID DIN Dash Size Hose OD Max.Working Pressure Min.Burst Pressure
    in mm mpa mpa
    G4SH-12 3/4 19 Din Dash Size 1.268 32.2 41.4 165.5
    G4SH-16 1 25.4 Din Dash Size 1.524 38.7 37.9 151.7
    G4SH-20 11/4 31.8 Din Dash Size 1.791 45.5 32.4 129.6
    G4SH-24 11/2 38.1 Din Dash Size 2.106 53.5 29 115.8
    G4SH-32 2 50.8 Din Dash Size 2.681 68.1 25.2 100.7
    G4SP-04 1/4 6.4 Din Dash Size 0.705 17.9 45.2 180.6
    G4SP-06 3/8 9.5 Din Dash Size 0.843 21.4 44.5 177.9
    G4SP-08 1/2 12.7 Din Dash Size 0.969 24.6 41.4 165.5
    G4SP-10 5/8 15.9 Din Dash Size 1.11 28.2 34.5 137.9
    G4SP-12 3/4 19 Din Dash Size 1.268 32.2 34.5 137.9
    G4SP-16 1 25.4 Din Dash Size 1.563 39.7 27.6 110.3



    Detail Information



    Material NBR
    Size From 1/4 inch to 2 inch
    Color Black
    Reinforcement Four layers of spiraled high-tensile steel wire.
    Temperature Range -40ºC ~ +100ºC
    Application Very high pressure, pulsating applications used for petroleum based hydraulic fluids.
    Can be used on CAT KOMATSU Excavator.
    Certification CE approved
    Capability Oil resistant, wear resistant, anti-aging.
    OEM accepted Yes
    Fitting We can provide as your requirement.
    Packaging Detail We pack the goods with poly stripes or as your request.
    Delivery According to your quantity, about 30 days for a 20' container.

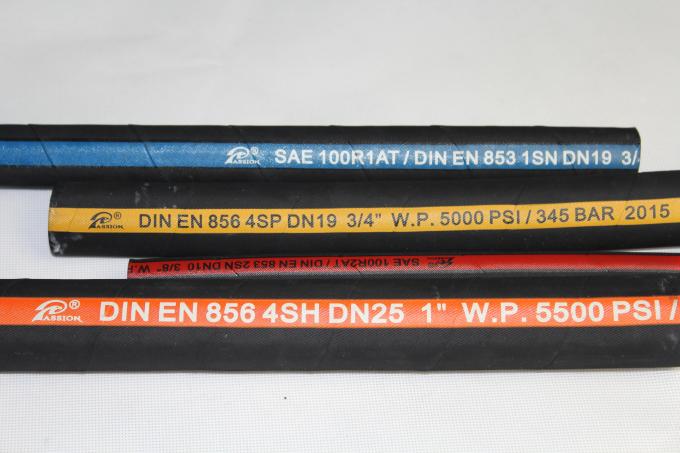

    Hose Picture



    En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines

    Paishun Tips: How to choose rubber hose.



    Principle of Selection

    The following factors shall be taken into consideration of the selection of rubber hose or hose assembly.

    Working Environment

    1) Ambient temperature: the high ambient temperature will quicken the aging of rubber hose, while the extreme low temperature may reduce the elasticity of hose and make it hard.

    2) Atmospheric conditions: either indoor or outdoor, the high-concentration ozone on the outdoor environment and ultraviolet radiation in the sunlight will accelerate the aging of hose.

    3) The contact with attacking media, including oil, benzene, strong acid and alkaline or other corrosive chemicals.

    Conveyance Medium

    1) Category of hose conveyance medium (gas, liquid, solid or mixture of them), solid media are more apt to wear hose than gas and liquid.

    2) Name of conveyance fluid: the fluid of different property will be conveyed by the hose if different material, different color of hose and safe pressure coefficient, there are many types of gases, e.g. Air, oxygen, carton dioxide combustible gases, e.g. Acetylene gas, LPG, and methane gas etc. , and liquids: water, acid-base, oil, refrigeration agent and special chemicals, some of theme can be used together, but others should be distinguished while using.

    3) Means of fluid conveyance, parameters of pressure (withstanding positive pressure) and flow rate, and cohesion (withstanding negative pressure) and flow rate.

    4) Working temperature and pressure parameters of conveyance fluid.

    5) Fluid conveyance frequency.



    FAQ

    ♦ What is your terms of payment?
    • T/T, L/C, Western Union, Paypal, MoneyGram are all good.

    ♦ How about your delivery time?
    • Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

    ♦ Can you produce according to the samples?
    • Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    ♦ What is your sample policy?
    • We can supply the sample for free, but the courier cost for you to pay.

    ♦ Do you test all your goods before delivery?
    • Yes, we have 100% test before delivery.

    ♦ How do you make our business long-term and good relationship?
    • We keep good quality and competitive price to ensure our customers benefit.
    • We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


    Advantages



    * Professional manufacturer for over 10 years in East China, near Shanghai and Ningbo port.
    * Free hose sample.
    * We can print words and your logo on the hose as your request.
    * We test the products before shipped out. We have complete line of test machines.
    * We can also get you fittings or assembly.

    * We ship the goods by express, by air, by sea or according to your requirement.



    Other products we supply:



    * Hydraulic Fittings
    * PTFE Hoses
    * Rubber Air/Water Hoses
    * Rubber Gas/LPG Hoses
    * Fuel Hoses
    * Other kinds of Rubber and Plastic Hoses

    En 856 4sh 4sp Four Layers Wire high pressure hydraulic hose for Industrial Machines
