    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: PASSION
    Certification: CE, ISO 9001:2008
    Model Number: ISO7241-A

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 pcs
    Packaging Details: By carton boxes and wooden pallets
    Delivery Time: 29 days after payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
    Supply Ability: 10000 pcs per week
    Contact Now
    Detailed Product Description
    Type: Close Type Hydraulic Quick Coupler Material: Carban Steel
    Temperature: -20℃ ~ +80 ℃ Size: 1/4" To 1"
    Color: Yellow Or White Thread: NPT / BSP
    Seal: Viton Or Other Types Of Rubber Part No.: ISO7241-A
    Compatibilty: Parker 6600

    Hydraulic Quick Coupling ISO 7241-A



    Features



    1. The H001 Series hydraulic quick couplings are mainly used for construction equipment, forest equipment, hydraulic machinery and oil equipment and other required hydraulic applications.


    2 Poppet valves available to prevent uncoupled leakage. Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.


    3. Critical parts are hardened for durability.


    4 H001 series conforms to the standard of ISO7241-A


    5 Compatible with PARKER 6600 Series, FASTERANV Series AEROQUIP 5600 Series, and HANSEN HA
    15000 Series.



    Specification of Product



    SPECIFICATIONS
    Body Size (in) 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
    Rated Pressure(PSI) 5000 4000 4000 3000 3000 3000 2000 2000
    Rated Flow(GPM) 3 6 12 28 50 88 220 224
    Temperature Range(STD Seals) -20°C ~ +80°C
    Standard Seal Materials Flourocarbon

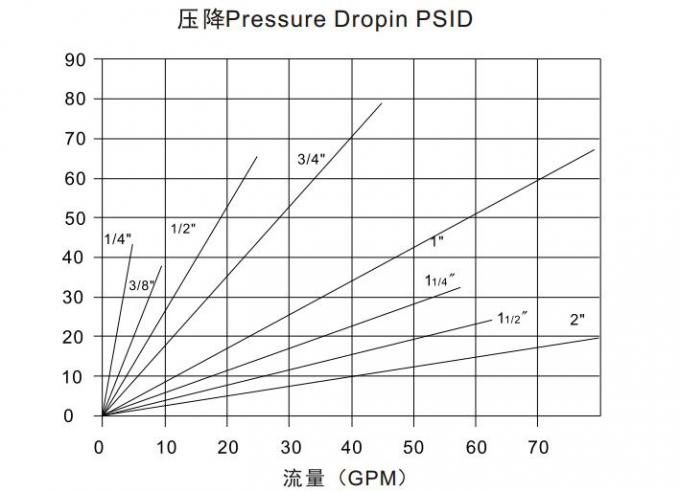

    Pressure Drop-in PSID





    Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings



    Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings



    Part No. LS φD HS A T
    H001-02SF 50 26 19*6 13 G1/4 NPT1/4
    H001-03SF 56 31.5 22*6 14 G3/8 NPT3/8
    H001-04SF 66 39 27*6 16 G1/2 NPT1/2
    H001-06SF 80 48 34*6 18 G3/4 NPT3/4
    H001-08SF 94 58 41*6 21 G1 NPT1
    H001-10SF 112 69 50*6 25 G1-1/4 NPT1-1/4
    H001-12SF 127.5 84.5 60*6 25.5 G1-1/2 NPT1-1/2
    H001-16SF 158 99 75*6 26 G2 NPT2









    Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings



    Part No. LP C HP A T
    H001-02PF 35.5 14.5 19*6 13 G1/4 NPT1/4
    H001-03PF 36.5 21.5 22*6 14 G3/8 NPT3/8
    H001-04PF 43.5 27 27*6 16 G1/2 NPT1/2
    H001-06PF 57 28 34*6 18 G3/4 NPT3/4
    H001-08PF 59.5 36 41*6 21 G1 NPT1
    H001-10PF 70 69 50*6 25 G1-1/4 NPT1-1/4
    H001-12PF 78 84.5 60*6 25.5 G1-1/2 NPT1-1/2
    H001-16PF 98 99 75*6 26 G2 NPT2



    Picture of Product



    Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings


    Packing and Shipping


    We ship the goods by express, by air, by sea or according to your requirement.







    Coupling ISO 7241- A Quick Connect Hydraulic Hose Fittings , Hydraulic Quick Connect Fittings
